Home ProductsBill Payment Kiosk

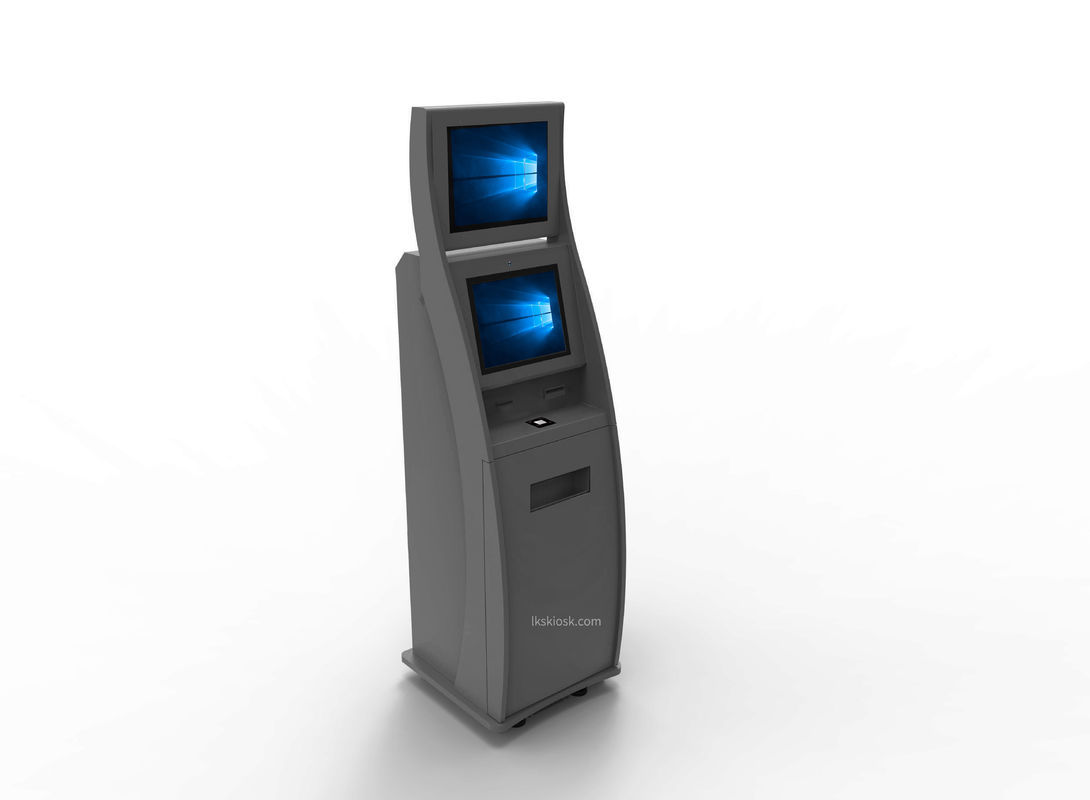

Custom Cash Payment Kiosk , Self Service Payment Kiosk Contactless IC Card Reader

Custom Cash Payment Kiosk , Self Service Payment Kiosk Contactless IC Card Reader

    • Custom Cash Payment Kiosk , Self Service Payment Kiosk Contactless IC Card Reader
    • Custom Cash Payment Kiosk , Self Service Payment Kiosk Contactless IC Card Reader
  • Custom Cash Payment Kiosk , Self Service Payment Kiosk Contactless IC Card Reader

    Product Details:

    Place of Origin: China
    Brand Name: LKS / ODM / OEM
    Certification: CE, FCC
    Model Number: LKS8564AZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 units
    Packaging Details: Film Wrap,Foam and Wooden Box
    Delivery Time: 4-6weeks upon payment
    Payment Terms: T/T in Advance
    Supply Ability: 1000-2000 units per month
    Contact Now
    Detailed Product Description
    OS: Windows 8 / Windows 10 / Linux Card Type: Almightiness Card Like IC,RF,MS
    Card Storage: 360~1000 Units As Optional Card Size: 54*86*0.8 Mm ISO Standard
    Card Dispensing: Less Than 7 Seconds / Unit Other: Displaying And Operation Area Are Separate
    High Light:

    cash payment kiosk

    ,

    atm kiosk

    Custom Bill Payment Kiosk ,Bank Kiosk, Hospitality& Travel Kiosk with Bank Card Reader & Cash Dispensser

    Configuration:

    1. 24 inch monitor
    2. 24 inch touch screen
    3. Industrious PC
    4. ID Card/Passport reader
    5. Contactless IC card reader
    6. Card dispenser *3
    7. Motorized bank card reader
    8. Receipt printer
    9. Digital signature pad
    10. Passport scanner
    11. RFID reader
    12. Speaker
    13. Webcam
    14. UPS
    15. Free standing single screen cabinet

      Specifications:


    Components Details
    PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
    CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
    RAM 2GB /4 GB / 8GB
    HDD/SSD 1TB,  SSD 128G/256G
    Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
    PC Power Supply HUNTKEY/Great Wall
    LCD monitor Screen Size 24 inch ( optional from 8inch to 65inch)
    Brightness 250cd/m2
    angle horizontal 100°above;Vertical 80°above
    Contrast 1000:1
    Backlight tube life more than 40,000hours
    Max. resolution 1280×1024
    Touch screen Screen Size  24 inch Diagonal ( optional from 8inch to 65inch)
    Resolution 4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Receipt Printer Interface High Speed USB
    Resolution 4800*1200 maximum
    Printing speed 4.8 ipm
    Width 58 /80 /112 mm
    Length Customizable

    Webcamera



    Resolution 1280*720
    Pixel 8000000
    Adaptive Resolution 1280*720
    Interface USB 2.0
    Driver No
    Encrypting Pinpad Keylife‐span 2,000,000 cycles
    Key force 2~3N
    Key trip  >2.5mm
    Protection level IP65
    Operating Temperature  0° C to 40° C
    Motorized card reader Interface RS232
    Card Type Support Magcard, IC Card, RF Card,  Mifare S50,S70,UL Card
    Magnetic Head Life 500,000/min
    500,000/min 300,000/min
    Power Voltage  DC 24V±5%
    Cash acceptor Validation Rate 98% or higher
    Banknote size Width: 62or 71mm; Length:120-160mm
    Detection ability High detection of forged bills
    Bill Escrow one bill
    Cashbox capacity 1000  banknotes max
    Operating Voltage  12V DC  or 24V AC
    Operating Temperature 0° C to 55 ° C  (12 V DC platform);  -18° C to +60 ° C  (24 V AC platform)
    Card dispenser Interface RS232
    Card specification 86mm×54mm×0.2-1.8mm
    Working environment From -30°C to 70°C
    ID scanner / Reader ID scanner 500 million,resolution 2592X1944
    Scan size A4 maximum
    Image output JPG,BMP,TIF,PDF,TGA,PCX,PNG,RAS  type;color,gray ,monochrome;
    Sensor CMOS
    OCR Extract text  to word file
    Interface USB 2.0
    UPS Input voltage 145-290 V
    Output voltage 200-255 V
    Output frequency 50±0.5Hz
    Transient time 50±0.5Hz
    Max time for supplying a single PC 3~20minutes (for single PC)
    IO control board Function Door alarm sensor with enternet function
    Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
    Digital Power Supply AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
    Operation System Windows 7 or Windows XP operation system without license
    Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    Package Security Packing method with bubble foam and wooden case






    Custom Bill Payment Kiosk ,Bank Kiosk, Hospitality& Travel Kiosk with Bank Card Reader & Cash Dispensser

    Optional Parts:
    1. Palm vein scanner
    2. WIFI or 3G / WLAN / 4G Wireless module
    3. Coin validator
    4. Cash dispenser
    5. Coin dispenser
    6. Manual magnetic stripe swipe card reader
    7. QR Code scanner
    8. Handset
    9. A4 Laser printer




    Other Applications



    • Airplane boarding room
    • Tourism spot
    • Convenience store
    • Hypermarket
    • Supermarket
    • Police office
    • School
    • Shopping mall
    • Retail store
    • ATM / VTM / ITM booth
    • High railway boarding room
    • Hotel
    • Museum
    • Human resources room
    • Railway Station
    • Metro Station
    • Highway station
    • Bus station
    • Other Public area





    Advantages:


    • Help cut the lines,Serve customers with mininal involvement from staff

    • Desigh for higher standard and have a much longer life-cycle,with commecial-grade electronics

    • Display all preferences and items effectively,Increase sales opportunities and boosts the possibilities of repeat customers




     Appearance



    •  Hardware agnostic and we can retrofit



    Custom Cash Payment Kiosk , Self Service Payment Kiosk Contactless IC Card Reader 0

    Custom Cash Payment Kiosk , Self Service Payment Kiosk Contactless IC Card Reader 1



    The reason you choose LKS:


    1. LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
    2. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
    3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
    4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
    5. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.

    LKS Factory Tour-Process Of Followsheet
    Kiosk Design Ideas
    LKS Factory Tour- Kiosk Mass Producing.

    Kiosk Design Ideas

    Kiosk Design Ideas

    Kiosk Design Ideas

    LKS Certificates :
    1
    LKS Factory tour-Receiption Desk.

    reception

    LKS Office

    office new

    LKS Shipping Terms

    Kiosk Design Ideas

    Welcome to contact us and send inquiry now!
