Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall

Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall

    • Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall
    • Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall
  • Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall

    Product Details:

    Place of Origin: China
    Brand Name: LKS or customized
    Certification: CE, FCC
    Model Number: LKS8337

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 units
    Packaging Details: Film Wrap,Foam and Wooden Box
    Delivery Time: 4-6weeks upon payment
    Payment Terms: T/T in Advance
    Supply Ability: 1000-2000 units per month
    Contact Now
    Detailed Product Description
    High Light:

    atm cash machine

    ,

    kiosk atm machine

     Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall

     Main functions:


    1. Type: Multifunction ATM kiosk, self-service kiosk, touchscreen kiosk
    2. Material of Cabinet:1.5mm to 3mm Cold-roll sheet or others
    3. Optional size of screen: 17inch, 19inch or upon customers’ request
    4. Supported OS: windows 7 or Linux
    5. Application: Indoor
    6. Touch Screen: IR/SAW/Capacitive
    7. Display: LCD, TFT, AUO or others
    8. Kiosk Color: upon the customer’s request
    9. Material Feature:Anti-dust, Anti-vandal
    10. Logo: By customer’s needs
    11. Parts: Cash acceptor/Coin acceptor/Card reader/receipt printer….
    12. Warranty: 1 year
    13. Power supply: 110-120V, 220V-240V or optional


    Standard hardware components List of Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall​  is as following:


    ComponentsDetails
    PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
    CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
    RAM2GB /4 GB / 8GB
    HDD500G
    Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
    PC Power SupplyHUNTKEY/Great Wall
    LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
    Brightness250cd/m2
    anglehorizontal 100°above;Vertical 80°above
    Contrast1000:1
    Backlight tube lifemore than 40,000hours
    Max. resolution1280×1024
    Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
    Resolution4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Bank/Credit Card ReaderInterfaceRS232
    Card TypeSupport Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
    Power VoltageDC 24V±5%
    Card Entry methodMagnetic signal, Optoelectronic signal and rear card signal
    Encrypted PinpadKeylift~span2,000,000 cycles
    Key force2~3N
    Key trip>2.5mm
    Protection levelip65
    Cashcode Bill acceptorValidation Rate96% or higher
    Banknote InsertionFour-way
    EscrowOne banknote
    Capacity1000 notes Max
    Coin AcceptorCoin AcceptanceMax 32 coin types, in 2*16 or 1*32 channels
    Detection ability of counterfeit Coinswith high detection ability of counterfeit coins
    Accepting Speed2 Coins/Sec
    Supply Voltage10V-16V DC
    Epson receipt thermal printerAutocutterincluded
    TechnologyThermal printing
    Paper width80mm
    Printing speed150mm/s
    Data buffer4KB
    InterfaceRS232 ,USB
    UPSInput voltage145-290va
    Output voltage200-255va
    Max time for supplying a single PC3~20minutes (for single PC)
    Digital Power SupplyAC input voltage range100~240VAC
    Frequency50Hz to 60Hz
    AC input voltage range100~240VAC
    Frequency50Hz to 60Hz
    AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
    Operation SystemWindows 7 or Windows XP operation system without license
    KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    PackingSecurity Packing method with bubble foam and wooden case


    Other Optional hardware components List of LKS Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall​ is as following:


    1. Web camera
    2. RFID Card reader
    3. Cash dispenser
    4. Passport reader
    5. Coin dispenser
    6. Advertising screen
    7. Barcode scanner
    8. Web camera
    9. A4 Laser printer


    Description :


    1.  LKS ATM kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
    2. LKS is a professional ATM kiosk manufacturers and ATM kiosk supplier in China. It provides the ATM kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
    3. LKS ATM kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
    4.  LKS main ATM are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.


    Multifunction:


    • Banks
    • Shopping Mall
    • Hotel
    • Hospital
    • Theatre
    • Railway Station
    • Metro Station
    • Parking Lot


    Our Advantages:

    Elegant Appearance


    • Attractive decoration
    • High-quality design sketch
    • Regular elegant design
    • Attract end customer
    • Multi-color processed surface
    • Human engineering verification


    Low Cost Solution

    • Easy of Operation
    • Modular design for easy maintenance
    • Stable-quality hardward components
    • Built on widely used stable provden technology
    • Complete supply chain management


    Designed for 24 / 7 operation


    • vandal resistant components
    • Tightly integrated hardwre and software
    • Highly responsive user interaction

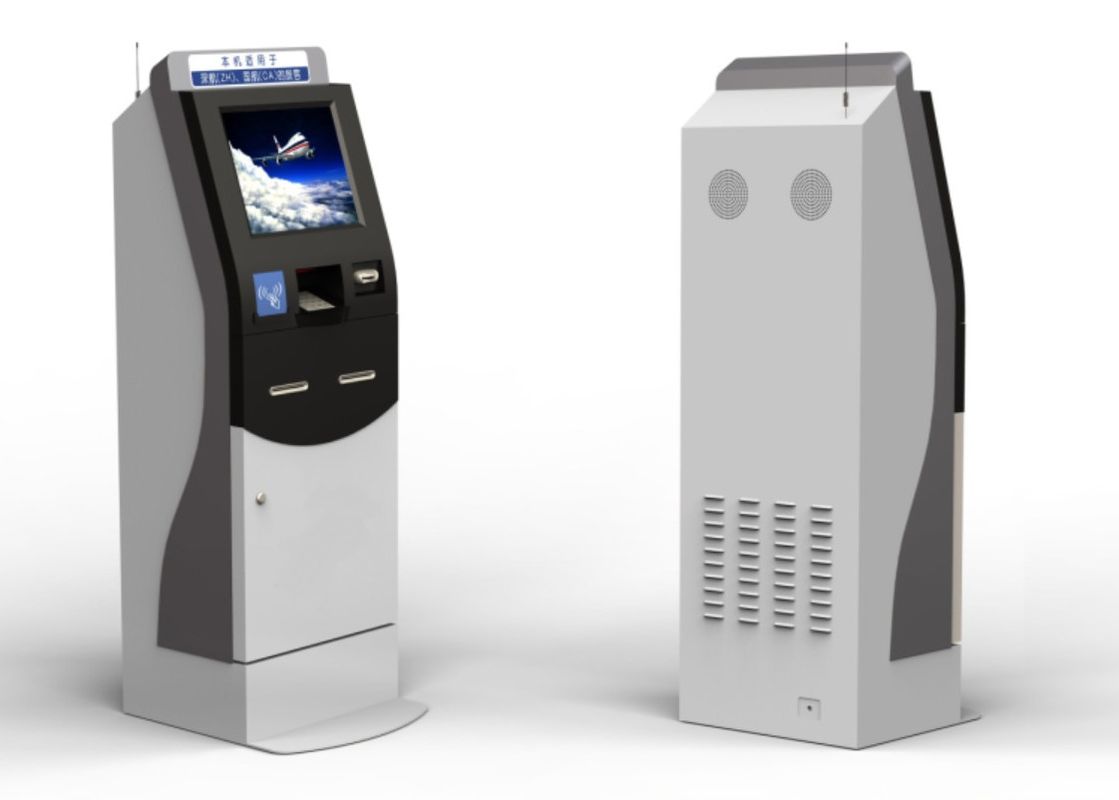

    Main designs of LKS Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall

    Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall 0Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall 1Network Barcode Reader Payment ATM Kiosk With Touch Pad Use In Shopping Mall 2
