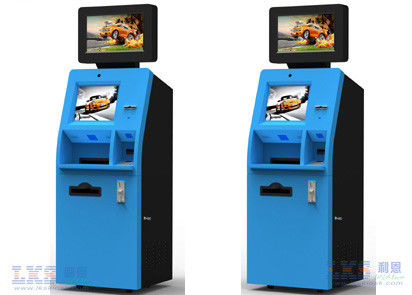

Self Service Photo Printing Kiosk / Kiosk With Photo Printing With Cash Acceptor​

Self Service Photo Printing Kiosk / Kiosk With Photo Printing With Cash Acceptor​

    • Self Service Photo Printing Kiosk / Kiosk With Photo Printing With Cash Acceptor​
    • Self Service Photo Printing Kiosk / Kiosk With Photo Printing With Cash Acceptor​
    • Self Service Photo Printing Kiosk / Kiosk With Photo Printing With Cash Acceptor​
  • Self Service Photo Printing Kiosk / Kiosk With Photo Printing With Cash Acceptor​

    Product Details:

    Place of Origin: China
    Brand Name: LKS or customized
    Certification: CE, FCC
    Model Number: LKS8390A

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 units
    Packaging Details: Film Wrap,Foam and Wooden Box
    Delivery Time: 4-6weeks upon payment
    Payment Terms: T/T in Advance
    Supply Ability: 1000-2000 units per month
    Contact Now
    Detailed Product Description
    High Light:

    customer service kiosk

    ,

    touch screen kiosks





    Self Service Photo Printing Kiosk / Kiosk With Photo Printing With Cash Acceptor​:


    Main functions:

    1. optional size of screen: 17inch, 19inch or upon customers’ request
    2. Power supply: 110-120V, 220V-240V or optional
    3. Supported OS: windows 7 or windows xp or Linux
    4. Application: Indoor
    5. Warranty: 1 year
    6. Display:LCD, TFT, AUO or others
    7. Material Feature:Anti-dust, Anti-vandal
    8. Type: Self Service Kiosk, stand kiosk, Information Kiosk
    9. Touch Screen: IR/SAW/Capacitive
    10. Kiosk Color: upon the customer’s request
    11. Material of Cabinet: 1.5mm to 2.5mm Cold-roll sheet or others
    12. Logo: By customer’s needs


    Standard hardware components List of Self Service Photo Printing Kiosk/Kiosk With Photo Printing With Cash Acceptor​ as following:

    Components Details
    PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
    CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
    RAM 2GB /4 GB / 8GB
    HDD 500G
    Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
    PC Power Supply HUNTKEY/Great Wall
    LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
    Brightness 250cd/m2
    angle horizontal 100°above;Vertical 80°above
    Contrast 1000:1
    Backlight tube life more than 40,000hours
    Max. resolution 1280×1024
    Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
    Resolution 4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Bank/Credit Card Reader Interface RS232
    Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
    Power Voltage DC 24V±5%
    Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
    Encrypted Pinpad Keylift~span 2,000,000 cycles
    Key force 2~3N
    Key trip >2.5mm
    Protection level ip65
    Epson receipt thermal printer Autocutter included
    Technology Thermal printing
    Paper width 80mm
    Printing speed 150mm/s
    Data buffer 4KB
    Interface RS232 ,USB
    UPS Input voltage 145-290va
    Output voltage 200-255va
    Max time for supplying a single PC 3~20minutes (for single PC)
    Digital Power Supply AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
    Operation System Windows 7 or Windows XP operation system without license
    KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    Packing Security Packing method with bubble foam and wooden case


    Other Optional hardware components List of Self Service Photo Printing Kiosk/Kiosk With Photo Printing With Cash Acceptor​ is as following:

    1. RFID card reader
    2. Web camera
    3. Coin dispenser
    4. Cash acceptor
    5. Barcode scanner
    6. Passport reader
    7. Thermal printer
    Description:

    1.  LKS is a professional self service kiosk manufacture and self service kiosk vendor in China. It provides the self service kiosk with passport scanner and brings a unique look to the different self service kiosks applications and kiosk industry.
    2. LKS self service kiosk is developed specifically for payment use or inquiry use in airport, hotel, bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
    3. LKS kiosk self service is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
    4. LKS main self service kiosks are including self service payment kiosk, self service information kiosk, self service internet kiosk, self service online kiosk, kiosk self service, service kiosk, self service kiosk terminal, self service financial kiosk, self service touch screen kiosk, kiosk self service,self service banking kiosk,self service ticketing kiosk,self service check-in kiosk,self service card dispenser kiosk,mcdonalds self service kiosk,mva self service kiosk,etc.


    Applications:

    • Banks
    • Hotel
    • Hospital
    • Theatre
    • Railway Station
    • Metro Station
    • Parking Lot
    • Shopping Mall

    Our Advantages:

    Elegant Appearance


    • Attractive decoration
    • High-quality design sketch
    • Regular elegant design
    • Attract end customer
    • Multi-color processed surface
    • Human engineering verification


    Low Cost Solution

    • Easy of Operation
    • Modular design for easy maintenance
    • Stable-quality hardward components
    • Built on widely used stable provden technology
    • Complete supply chain management

    Designed for 24 / 7 operation

    • Tightly integrated hardwre and software
    • Highly responsive user interaction
    • vandal resistant component
    • Self Service Photo Printing Kiosk / Kiosk With Photo Printing With Cash Acceptor​ 0

      The reason you choose LKS:


    • LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
    • LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
    • LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
    • LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
    • LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.
    • LKS Factory Tour-Process Of Followsheet
      Kiosk Design Ideas
      LKS Factory Tour- Kiosk Mass Producing.
      Kiosk Design Ideas
      Kiosk Design Ideas
      Kiosk Design Ideas
