Home ProductsSelf Service KioskParking Payment Kiosk

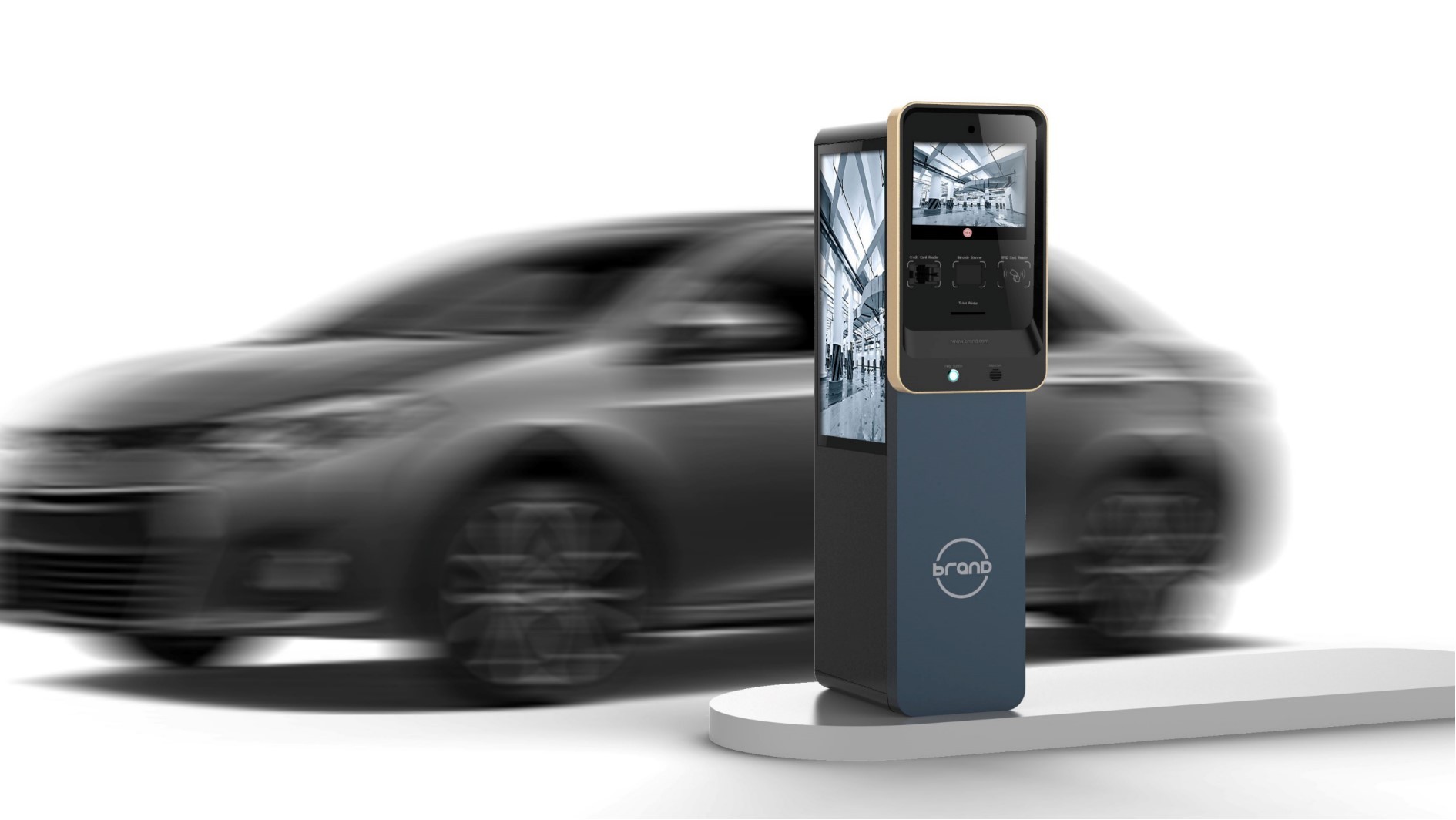

Parking Payment Kiosk
Parking Payment Kiosk Parking Payment Kiosk Parking Payment Kiosk Parking Payment Kiosk

Parking Payment Kiosk

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8327G
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Material: 1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others Material Feature: Anti-vandal, Anti-dust
Application: Indoor Supported OS: Windows 7 Or Windows 8 Or Linux
Display: LCD, TFT, AUO Or Others Optional Size Of Screen: 17inch, 19inch Or Upon Customers’ Request
Touch Screen: IR/SAW/Capacitive Warranty: 12 Mounths Since Shipment
Power Supply: 110-120V, 220V-240V Or Optional Color: Yellow, Gray, Red, Black (Optional)
Function: Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk... Type: ATM Kiosk, Payment Kiosk
High Light:

atm cash machine

,

kiosk atm machine

Product Description

Parking Payment Kiosk





Main components ​​:



  1. 10.4" touch screen
  2. Cash dispenser
  3. Card dispenser
  4. Cash acceptor
  5. Coin acceptor
  6. Speaker
  7. IC / RFID  card printer
  8. Cash valid
  9.  Visa, Mastercard, Maestro card reader
  10. Encrypted Pin Pad….


Standard hardware components List  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Card Dispenser Main Fuction Combination of card issuing IC/RFID card Reading
Communication Interface  RS232C / USB (HID)
Card Dimmensions Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm
Card Stacking Capability 120 pcs in case of 0.76mm standard card ( without extension) ( Available load 500 pcs of card max if there is removable stacker)
 Metal keyboard with touchpad Keylift‐spanKeylift‐span
Key force  2~3N
Key trip  >2.5mm
Protection level ip65
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:



  1. Barcode scanner
  2. Contactless Card reader
  3. Wireless Moudal
  4. Web camera
  5. A4 Laser printer
  6. Thermal printer
  7. Intercom
  8. Cash dispenser
  9. Coin dispenser
  10. Speaker
  11. USB port
  12. Advertising screen


Description


  1. LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  2. LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  3. LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  4. LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.


Multifunction:


  • Banks
  • Hotel
  • Hospital
  • Gas station
  • Shopping Mall
  • Theatre
  • Railway Station
  • Metro Station
  • Parking Lot
  • Fast food restaurant
  • Buss station
  • Other Public areas


Our Advantages:




Designed for 24 / 7 operation


  • Highly responsive user interaction
  • vandal resistant components
  • Tightly integrated hardwre and software


Low Cost Solution



  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management
  • Easy of Operation
  • Modular design for easy maintenance


Elegant Appearance



  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification
  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design


Parking Payment Kiosk 0Parking Payment Kiosk 1Parking Payment Kiosk 2
