Home ProductsFree Standing Kiosk

Dual Screen Multifunction Kiosk Free Floor Standing Model Custom Design

Dual Screen Multifunction Kiosk Free Floor Standing Model Custom Design

    • Dual Screen Multifunction Kiosk Free Floor Standing Model Custom Design
    • Dual Screen Multifunction Kiosk Free Floor Standing Model Custom Design
  • Dual Screen Multifunction Kiosk Free Floor Standing Model Custom Design

    Product Details:

    Place of Origin: China
    Brand Name: LKS / OEM / ODM
    Certification: CE, FCC
    Model Number: LKS809A

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Units
    Packaging Details: Film wrap, foam and wooden box
    Delivery Time: 4-6 weeks upon payment
    Payment Terms: T/T in advance, Western Union, L/C
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Material: Cold Rolled Steel Or Stainless Steel Or Others Application: Indoor
    Warranty: 12 Months After Delivery Power Supply: 110-120V, 220V-240V Or Others
    Color And Logo: Customizable Type: Top Up Dual Screen Kiosk
    Size Of The Banknote: Width: 62or 78mm; Length:160-180mm
    High Light:

    stand alone kiosk

    ,

    large screen kiosk



    Dual Screen Multifunction Kiosk Free Floor Standing Model Custom Design



    Standard configuration:



    1. 19 inch monitor
    2. 17 inch monitor
    3. 17 inch IR touch screen
    4. Industrious PC,2G RAM,500G HDD
    5. Wireless module like 3G / GPRS,WIFI,Blurtooth
    6. Speaker
    7. POS terminal
    8. Card reader
    9. Free standing dual screen cabinet



    Specification  is as following:



    Components Details
    PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
    CPU  Intel Dual Core I5
    RAM 4 GB
    HDD 500G
    Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
    PC Power Supply HUNTKEY/Great Wall
    LCD monitor Screen Size 17 inch ( optional from 8inch to 65inch)
    Brightness 250cd/m2
    angle horizontal 100°above;Vertical 80°above
    Contrast 1000:1
    Backlight tube life more than 40,000hours
    Max. resolution 1280×1024
    Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
    Resolution 4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Bank card reader Status Display LED indicator to show the power or communication status
    Card Type  ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
    Type Support  ISO14443
    Wireless module 3G module 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
    2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
    3, Sending and receiving short messages
    4, Managing contacts
    Interface: USB2.0, and USB1.1 compatible
    Data transmission: Transmission rate will be depended on the live network
    Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
    Digital Power Supply AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
    Operation System Windows 7 or Windows XP operation system without license
    Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    Package Security Packing method with bubble foam and wooden case




    Other Optional hardware components List is as following:



    1. Dot matrix printer
    2. Cash dispenser
    3. Coin acceptor / dispenser
    4. Palm vein scanner
    5. Fingerprint scanner
    6. Manual magnetic stripe swipe card reader
    7. ID / Driver licence / Social insurance card double-side scanner
    8. Passport scanner
    9. Encrypted Pinpad
    10. Stainless metal keyboad with track ball
    11. Digital signature pad
    12. Cheque scanner / acceptor with MICR function





    Application


    • Cinema
    • Hypermarket
    • Home supply store
    • Museum
    • Supermarket
    • Financial agency
    • Retailer store
    • Coffe shop
    • Park
    • Gymnasium
    • Conference lobby
    • Exibition
    • Coffe shop
    • Shopping Mall
    • Railway Station
    • Metro Station
    • Parking Lot
    • Bus station
    • Other Public area


    Our Advantages:




    Design for  24 / 7 Operation

    • Fixed on floor and lockable
    • Integrated industrial level compenents from worldwide famouse brands
    • Inner air recycling design for heat and humidity control
    • Alarm system sensor with instant reporting function



    Cost-saving solution

    • No staff invloving
    • Ease-of-use,maintenance free
    • Design and production on our own
    • Two screen controls under only one PC
    • CE,FCC RoHS certification

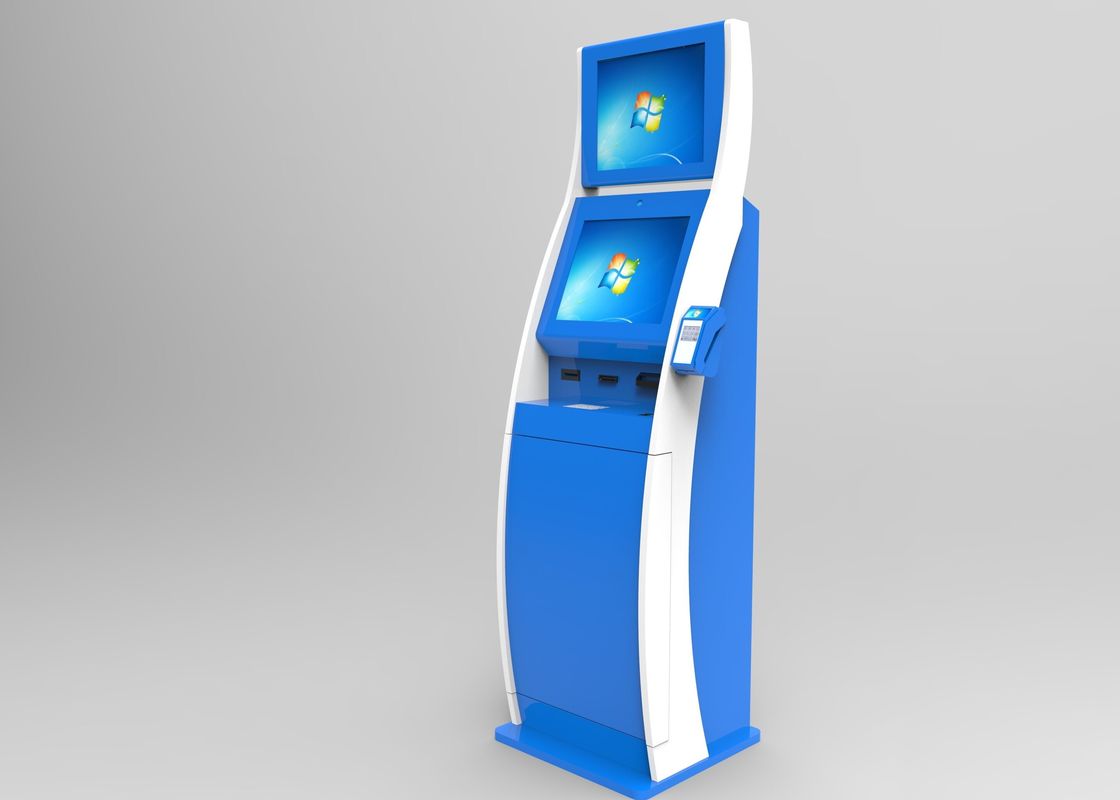

    Appearance



    Dual Screen Multifunction Kiosk Free Floor Standing Model Custom Design 0





    The reason to choose LKS:

    1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
    2. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
    3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
    4.
    5. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
    6. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
    7. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
