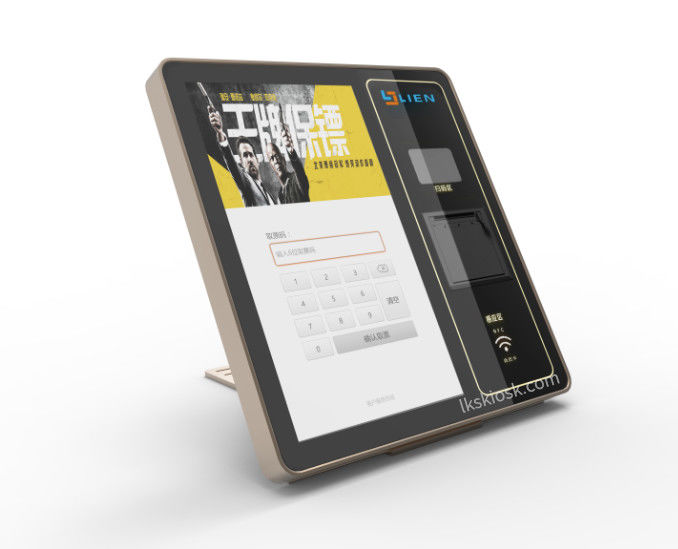

21.5 Inch Self Ordering Kiosk Contactless IC / RF Card For Restaurant / Desktop

21.5 Inch Self Ordering Kiosk Contactless IC / RF Card For Restaurant / Desktop

    • 21.5 Inch Self Ordering Kiosk Contactless IC / RF Card For Restaurant / Desktop
    • 21.5 Inch Self Ordering Kiosk Contactless IC / RF Card For Restaurant / Desktop
  • 21.5 Inch Self Ordering Kiosk Contactless IC / RF Card For Restaurant / Desktop

    Product Details:

    Place of Origin: China
    Brand Name: LKS / ODM / OEM
    Certification: CE, FCC
    Model Number: LKS8204 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Units
    Packaging Details: Film wrap, foam and wooden box
    Delivery Time: 4-6 weeks upon payment
    Payment Terms: T/T in advance, Western Union, L/C
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Type: Countertop / Wall Mounted Card: Contactless IC / RF Card
    Audio: 2* Speakers Monitor: 21.5 Inch
    Touch Screen: Capacitive OS: Android / Windows / Linux
    High Light:

    outdoor touch screen kiosk

    ,

    multimedia kiosks

    21.5 Inch Self Ordering Kiosk Contactless IC / RF Card For Restaurant / Desktop


    Standard configuration:


    1. 21.5 inch touch screen
    2. 21.5 inch monitor
    3. Speaker
    4. Contacless IC / RF card reader
    5. Industrial PC
    6. Printer
    7. Cabinet

    21.5 Inch Self Ordering Kiosk Contactless IC / RF Card For Restaurant / Desktop
    Specification  is as following:


    Components Details
    PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
    CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
    RAM 2GB /4 GB / 8GB
    HDD 500G
    Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
    PC Power Supply HUNTKEY/Great Wall
    LCD monitor Screen Size 21.5 inch ( optional from 8inch to 65inch)
    Brightness 250cd/m2
    angle horizontal 100°above;Vertical 80°above
    Contrast 1000:1
    Backlight tube life more than 40,000hours
    Max. resolution 1280×1024
    Touch screen Screen Size 21.5 inch Diagonal ( optional from 8inch to 65inch)
    Resolution 4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
    Operation System Windows 7,Windows 8,Windows 10 or above
    KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    Packing Security Packing method with bubble foam and wooden case


    21.5 Inch Self Ordering Kiosk Contactless IC / RF Card For Restaurant / Desktop

    Other Optional hardware components List is as following:


    1. Motorized EMV bank card reader
    2. Webcam
    3. QR code scanner
    4. Palm vein scanner
    5. WIFI or 3G Wireless module
    6. Thermal printer
    7. ID validation



    Multi-functional Application:

    • Stadium
    • School
    • Cafes
    • Convenience store
    • Hypermarket
    • Highway station
    • Tourism spot
    • Retailer store
    • Gas station
    • Cafes
    • Shopping Mall
    • Airport
    • Railway Station
    • Metro Station
    • Parking Lot
    • Bus station
    • Lobby room
    • Street
    • Other Public area




    Our Advantages:

    Suitable for 24 / 7 operation

    • Desigh for higher standard and have a much longer life-cycle,Commecial-grade electronics
    • Function at a higher capacity and are fully integrated and more secure.

    • Industrial modular components from worldwide famous brands


    Cost-effective Solution

    • Ease of use,Outstanding and interactive Consumer/Customer seamless experience

    • Increase ROI

    • Increase effeciency,improve collections,creates less work for staff,cut lines



    Appearance


    • Eyesight attractive,elegant and noble design
    • Brand promotion by LOGO displaying and video advertising playing




    The Reason you choose LKS:

    1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
    2. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
    3. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
    4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
    5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
    6. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
