Shenzhen Lean Kiosk Systems Co., Ltd.

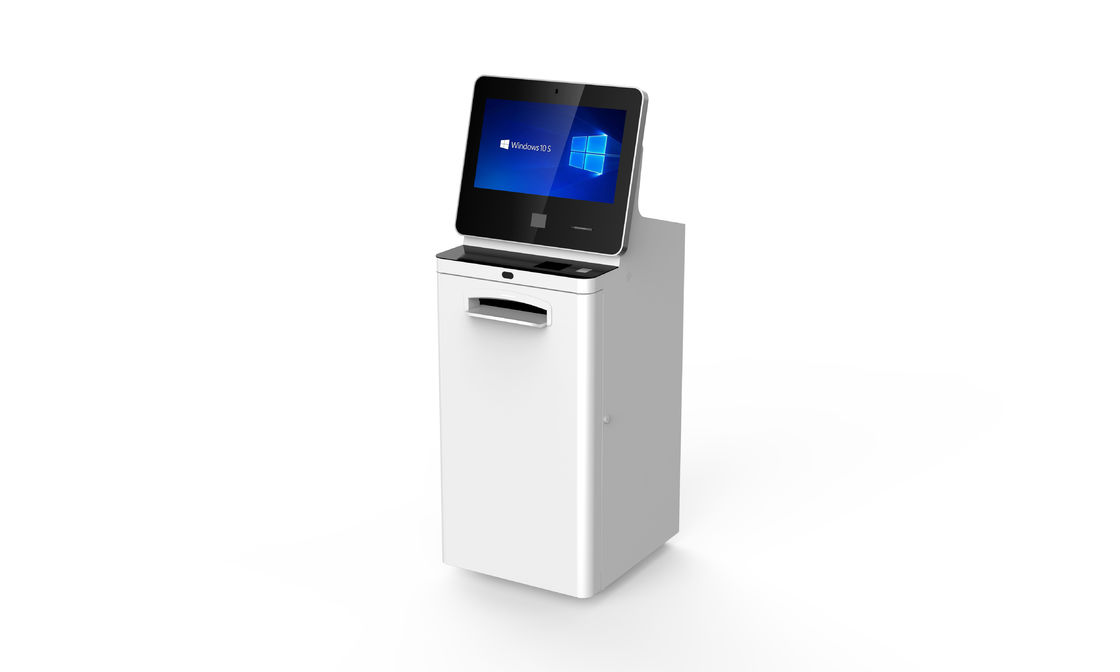

Self Service Bill Payment Kiosk With Receipt Printer For Cash Terminal

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8514
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Kiosk Type:: Payment Kiosk Application:: Banking, Retail,Post, Transport, Library,
OS:: Window/Android/Linux/JOS Brightness: 250cd/㎡
Material:: Cold Rolled Plate Power Supply:: 110~220V,50/60Hz
High Light:

cash payment kiosk

,

self service payment kiosk

Product Description

company introdution



Shenzhen Lean Kiosk Systems Co.,LTD ( LKS for short as following ) is a professional kiosk manufacturer engaged in all kinds payment kiosk, information kiosk, touch screen kiosk, ticket dispenser kiosk, banking kiosk, simple ATM kiosk, advertising kiosk, outdoor kiosk, self-service vending machine etc.

LKS kiosk products have been widely applied to bank, hospital, cinema, super market, convenient store, shopping mall, restaurant, metro station, bus station, gas station, exhibition hall, museum, airport, real estate property and other public areas. LKS is with his own professional design team, R& D team, purchase team, production team, sales team, inspection team and after-sale services team. LKS pay more attention to the best quality products, quick response and warmest services to customers all over the world. We offers standard kiosk products as well as customization services to meet customer's specific requirements. With our experienced teams, we have the capability to design and develop the best quality products that will make you stand out against competitors. We are dedicated to working with you to provide solutions to suit your needs and applications.



Self Service Bill  Payment Kiosk With Receipt Printer For Cash Terminal

Main components​​ ​​:

  1. Industrious PC
  2. 17 inch monitor
  3. 17 inch IR touch screen
  4. Printer
  5. Motorized card reader
  6. Barcode scanner
  7. Speaker
  8. Free standing single screen cabinet

Standard hardware components List of LKS self service pay exchange currency for ticket dispenser kiosk is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6* RS-232 Ports;1* LTP;6 * USB Ports,8*GPIO;1*PCI
PC Power Supply HUNTKEY/Great Wall
RFID Card Reader Reading distance >4cm
Operating system windows98,Me ,XP,2003 ,Unix and Linux
Card contact number 200000 Secondary
Operating temperature -20℃ to 60℃
Whether contact Non-contact
Interface Serial ports,USB
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Touch accuracy center: <1.5mm
edge: <3.2mm
Response time <16ms
Voltage DC5V+/-5%
Interface RS232,USB
Glass thickness 3mm
Resolution 4096x4096
Receipt printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Paper thickness 0.06-0.15mm
Supply voltage DC24V
Passport Scanner Product Type Flatbed color image sensor
Host interface USB ( Universal Serial Bus)
Image Sensor CMOS CIS ( Contact image sensor)
Resolution hardware optical 600dpi
Paper thickness >0.1mm
Scanning area 5.0"maximum scan width and 3" maximum scan length
wireless module TP-Link-GP-WB223MS
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam+wooden case




Other Optional hardware components List​​ is as following:

  1. Barcode scanner
  2. Contactless card reader
  3. Cash / Coin validator
  4. Coin dispenser
  5. Palm vein scanner
  6. Fingerprint scanner
  7. Wireless module like WLAN / GPRS / 3G / LTE
  8. Web camera
  9. ID scanner
  10. A4 Laser printer
  11. USB port
  12. Advertising screen
