Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS

Certification
Good quality Self Service Kiosk for sales
Good quality Self Service Kiosk for sales
We have coopertate with LKS more than three years, they always give us best quality and service, they are good partner

—— Tence

LKS is the best designer and manufacturer for payment kiosk in shenzhen, China which have cooperated till now

—— Duska

I'm Online Chat Now

Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS

China Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS supplier
Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS supplier Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS supplier Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS supplier Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS supplier

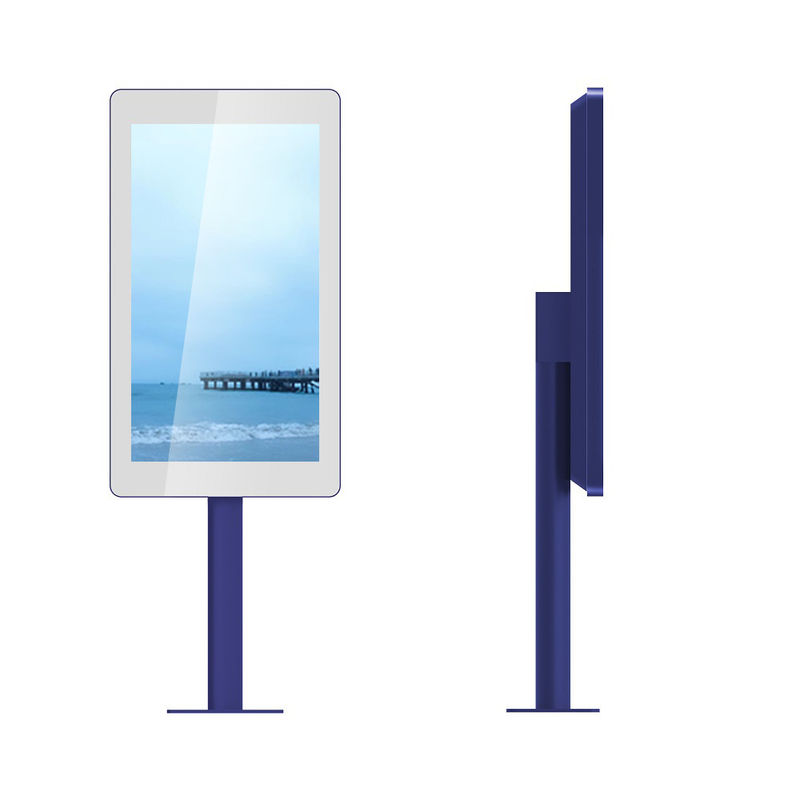

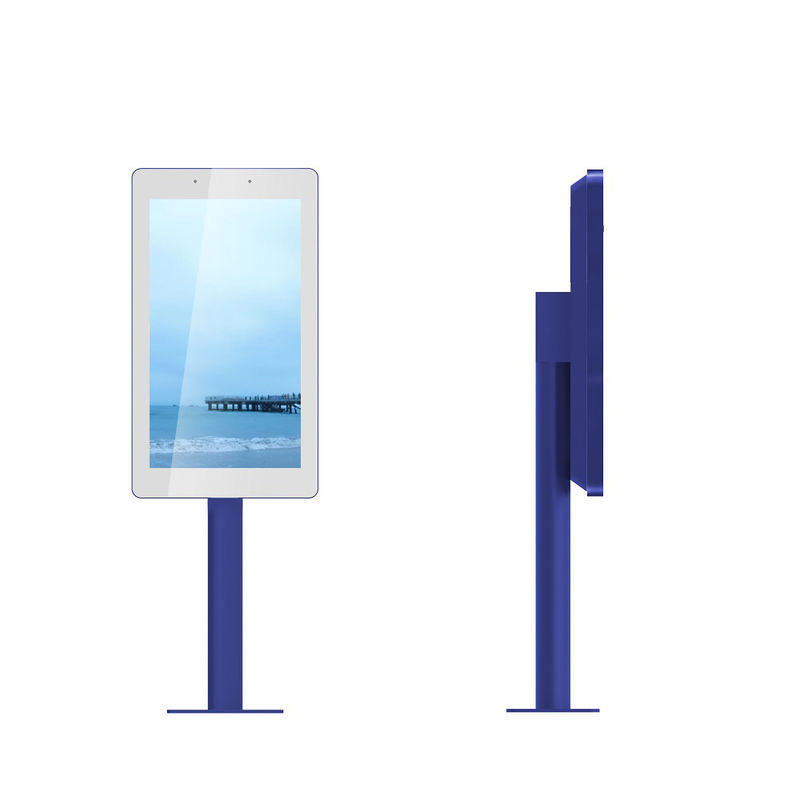

Large Image :  Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS

Product Details:

Place of Origin: China
Brand Name: ODM/OEM
Certification: CE, FCC
Model Number: LKS8514

Payment & Shipping Terms:

Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Contact Now
Detailed Product Description
Color And Logo: Upon Customer Kiosk Cabinet: Waterproof,dustproof,anti-explosion Ect
Material Of Cabinet: Cold-roll Steel Sheet Or Others Thickness Of Enclosure: 1.5mm Or 3.0mm Or Upon Clients
Supported OS: Win7 Or Win8 (test Version ) Size Of Touch Screen: 15",17",19" Or Upon Clients
Touch Screen: SAW Touch Or IR Touch Or Upon Clients Power Supply: 110V, 220V Or Upon Clients
Kiosk Type: Kiosk Design Ideas Warranty Period: 12month For Components Since Shipment



Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS

  1. optional size of screen: 17inch, 19inch or upon customers’ request
  2. Application: Indoor
  3. Supported OS: windows 7 or Linux
  4. Touch Screen: IR/SAW/Capacitive
  5. Display: LCD, TFT, AUO or others
  6. Kiosk Color: upon the customer’s request
  7. Material Feature:Anti-dust, Anti-vandal
  8. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  9. Logo: By customer’s needs
  10. Parts: Passport Reaser/ Barcode Scanner/ Thermal printer….
  11. Warranty: 1 year
  12. Power supply: 110-120V, 220V-240V or optional
  13. Type: Check In Kiosk ,Touch Screen Information Kiosk, touchscreen kiosk


Standard hardware components List of LKS Standard Information Kiosk, Interactive Kiosk ,Computer Touch Kiosk is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List of Standard Information Kiosk, Interactive Kiosk ,Computer Touch Kiosk​ is as following:

  1. Cash dispenser
  2. Coin dispenser
  3. Advertising screen
  4. Barcode scanner
  5. Passport reader
  6. Web camera
  7. A4 Laser printer
  8. RFID Card reader
  9. Metal Keyboard with Trackball or Touchpad(64 keys)


Description



  1. LKS is a Check In Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. 2LKS Check In Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS Check In Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS main Check In Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.


Multifunction:


  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Metro Station
  • Parking Lot
  • Shopping Mall
  • Other public areas


Our Advantages:

Low Cost Solution


  • Easy of Operation
  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management


Elegant Appearance


  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification



Designed for 24 / 7 operation


  • Tightly integrated hardwre and software
  • Highly responsive user interaction
  • vandal resistant components



Main designs of Standard Information Kiosk, Interactive Kiosk ,Computer Touch Kiosk :Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OS
Standard anti - explosion Computer Touch Kiosk windows 7 or Linux OSStandard anti - explosion Computer Touch Kiosk windows 7 or Linux OS

Our Services



   Any color and logo can be painted for free.

   Kiosk is customize for client, variety of accessories can be add for request.

   1 year warranty

   Professional and technical staff support

Packaging & Shipping

    Kiosk packaged by bubble bag, foam, carton box and wooden case.



 Welcome to contact us and send inquiry now!
