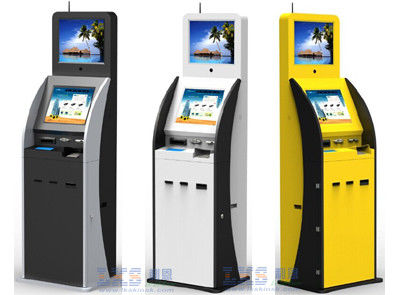

Dual Touch Screen Information Kiosk Ticket Vending With Vertical Ad Display

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8564
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Brand Name: LKSKIOSK/ OEM / ODM Warranty: One Year
Color And Logo: Custom-made Storage Temperature: -20℃ To 60℃
Model Number: LKS8564 Place Of Origin: Guangdong, China (Mainland)
Resolution: 1280*1024 MOQ: 5 Set
Power Supply: AC110V-240V,50Hz-60Hz Upon Clients Supported OS: Windows 7 / Windows 8 / Linux
High Light:

computer kiosk stand

,

interactive touch screen kiosk

Product Description

Airport / Bank / Hospital Dual Screen Kiosk Ticket Vending Kiosk With Vertical Ad Display


Industrious PC

  • 21inch top LCD monitor for advertising
  • Webcamera
  • A4 laser printer
  • High speed video shooting
  • Smart card reader
  • 2D barcode scanner
  • Cash acceptor
  • Coin acceptor
  • 17 inch IR touch screen
  • Speaker
  • Free standing single screen cabinet
  • Wireless Module
  • Receipt Printer
  • ID Card Reader
  • Metal Keyboard with Trackball or Touchpad(64 Keys)

Standard hardware components List  is as following :





ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
Digital Power SupplyAC input voltage range100‐240VAC
Frequency50Hz to 60Hz
Output over current protection110~130%
AC input voltage range100‐240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam+wooden case



FAQ

 1. Q: Are you a factory or trading company?
 A:We are a factory
 2. Q: Where is your factory located? How can I visit there?
 A:Our factory is located in shenzhen, guangdong Province, China, about half an hour by metro from  baoan airport ,All our clients, from home or abroad, are warmly welcome to visit us!
 3. Q: How can I get some samples?
 A: We are honored to offer you samples.
 4. Q: How does your factory do regarding quality control?
 A:Quality is priority. Shenzhen people always attach great importance to quality controlling from the very  beginning to the very end. Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
 5. Q: What is your after-sale service?
 A: We offer 100% guarantee on our product .
 6. Q: What is your MOQ?
 A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
 7. Q: When will you make the delivery?
 A: We can make the delivery within 3-15 working days according to the size of your order.

Warranty
For non-human damage warranty:
The seller will provide one year warranty, non-human damage during the warranty period: Buyer return the product to factory for repairing and bearing the shipping freight to the seller.
After the maintenance, seller will send it back and bears the shipping freight. If the freight is higher than the damaged parts, the seller will send good parts to the buyer directly free of charge.
Having large quantities quality problem ,the seller will send technicians for repairing, and bears all maintenance costs .
For human damage warranty:
Buyer sends back damaged products to seller through courier, after receiving, seller will repair and send back. Buyer bears the freight and the cost of repairing parts.

Lifelong maintenance after 1 warranty
The seller is responsible for the lifelong maintenance, but will not bear the cost of repairing parts and freight
