Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine

Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine

    • Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine
    • Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine
    • Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine
  • Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine

    Product Details:

    Place of Origin: China
    Brand Name: LKS or customized
    Certification: CE, FCC
    Model Number: LKS8564-O

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 units
    Packaging Details: Film Wrap,Foam and Wooden Box
    Delivery Time: 4-6weeks upon payment
    Payment Terms: T/T in Advance
    Supply Ability: 1000-2000 units per month
    Contact Now
    Detailed Product Description
    Material: Cold Rolled Steel Or Stainless Steel Or Others Material Feature: Anti-vandal, Anti-dust,Anti-acid,Waterproof
    Application: Indoor OS: Windows 7 / Windows 8 / Linux
    Display: LCD, TFT, LED Type Of Card To Be Dispensed: SIM Card
    Touch Screen: IR / SAW / Capacitive Warranty: 12 Months After Delivery
    Power Supply: 110-120V, 220V-240V Or Others Color And Logo: Customizable
    Function: Self Payment Transactions,information Checking,advertising Display,self Register And Check In,advertising Displaying,card Dispensing Type: Top Up Dual Screen Kiosk
    Type Of Card To Be Read: Smart Card Like Magnetic Stripe,IC RFID;Contactless Card Like Mifare Size Of The Banknote: Width: 62or 78mm; Length:160-180mm
    2D Barcode Type: 2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140),Aztec, Maxicode, Etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 Of 5 ISBN, Code 93, UCC/EAN-128, GS1 Databar
    High Light:

    custom kiosks

    ,

    prepaid card kiosk



    Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine





    Standard configuration:

    1. 2* 17 inch monitor
    2. 17 inch IR touch screen
    3.
    4. HD Webcam
    5. Industrious PC
    6. 2D Barcode scanner
    7. Speaker
    8. Receipt printer
    9. Ticket printer
    10. Encrypting Pinpad
    11. Motorized smart card reader
    12. Card dispenser
    13. UPS
    14. Cash acceptor
    15. Contactless card reader
    16. Wireless module
    17. Alarm system sensor or IO control board
    18. Free standing dual screen cabinet
    19.

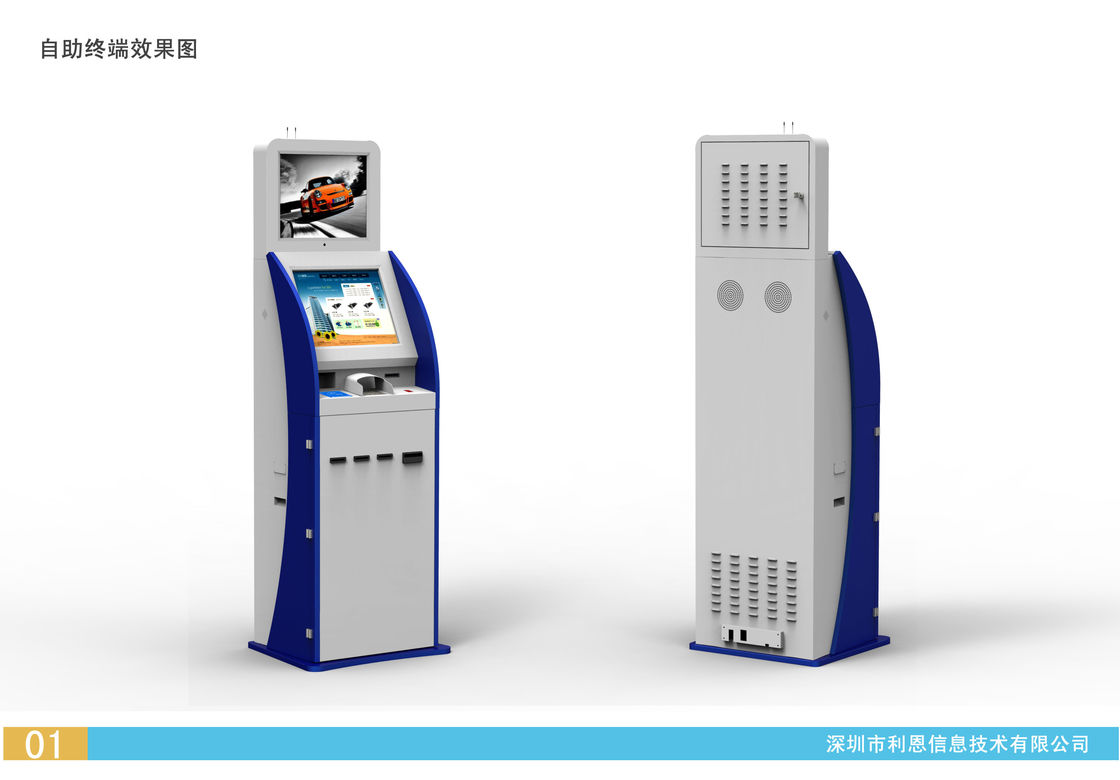

    Selection of a variety of appearance

    Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine 0









    Specification  is as following:



    Components Details
    PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
    CPU  Intel Dual Core I5
    RAM 4 GB
    HDD 500G
    Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
    PC Power Supply HUNTKEY/Great Wall
    LCD monitor Screen Size 17 inch ( optional from 8inch to 65inch)
    Brightness 250cd/m2
    angle horizontal 100°above;Vertical 80°above
    Contrast 1000:1
    Backlight tube life more than 40,000hours
    Max. resolution 1280×1024
    Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
    Resolution 4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Receipt / Ticket Printer Interface High Speed USB
    Resolution 4800*1200 maximum
    Printing speed 4.8 ipm
    Width 58 /80 /112 mm
    Length Customizable

    Webcam



    Resolution 1280*720
    Pixel 8000000
    Adaptive Resolution 1280*720
    Interface USB 2.0
    Driver No
    Encrypting Pinpad Keylift‐span 2,000,000 cycles
    Key force 2~3N
    Key trip  >2.5mm
    Protection level IP65
    Operating Temperature  0° C to 40° C
    Motorized card reader Interface RS232
    Card Type Support Magcard, IC Card, RF Card,  Mifare S50,S70,UL Card
    Magnetic Head Life 500,000/min
    500,000/min 300,000/min
    Power Voltage  DC 24V±5%
    Cash acceptor Validation Rate 98% or higher
    Banknote size Width: 62or 71mm; Length:120-160mm
    Detection ability High detection of forged bills
    Bill Escrow one bill
    Cashbox capacity 1000  banknotes max
    Operating Voltage  12V DC  or 24V AC
    Operating Temperature 0° C to 55 ° C  (12 V DC platform);  -18° C to +60 ° C  (24 V AC platform)
    Card dispenser Interface RS232
    Card specification 86mm×54mm×0.2-1.8mm
    Working environment From -30°C to 70°C
    Contactless card reader Status Display LED indicator to show the power or communication status
    Card Type  ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
    Type Support  ISO14443
    2D scanner Readable Code  CMOS
    Resolution   752*480
    Readable Code 2D PDF417, QR Code(Model 1/2),  DataMatrix(ECC200, ECC000, 050, 080, 100,140),     Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc
     Approval FCC Part15 Class B, CE EMC Class B
    Work Voltage DC 5V (4.5-5.5V)
    Interface RS232, USB
    UPS Input voltage 145-290 V
    Output voltage 200-255 V
    Output frequency 50±0.5Hz
    Transient time 50±0.5Hz
    Max time for supplying a single PC 3~20minutes (for single PC)
    Wireless module 3G module 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
    2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
    3, Sending and receiving short messages
    4, Managing contacts
    Interface: USB2.0, and USB1.1 compatible
    Data transmission: Transmission rate will be depended on the live network
    Alarm system sensor / IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
    Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
    Digital Power Supply AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
    Operation System Windows 7 or Windows XP operation system without license
    Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    Package Security Packing method with bubble foam and wooden case


    Other Optional hardware components List is as following:



    1. Dot matrix printer
    2. Cash dispenser
    3. Palm vein scanner
    4. Coin dispenser
    5. ID / Driver licence / Social insurance card double-side scanner
    6. Intercom
    7. Manual magnetic stripe swipe card reader
    8. Cheque scanner / acceptor with MICR function


    Description


    1. LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
    2. LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
    3. LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
    4. LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.


    Application


    • Cinema
    • Museum
    • Supermarket
    • Bank
    • Retailer store
    • Coffe shop
    • Park
    • Coffe shop
    • Shopping Mall
    • Railway Station
    • Metro Station
    • Parking Lot
    • Bus station
    • Other Public area


    Our Advantages:




    1. Design for  24 / 7 Operation


    • No staff needed during night
    • No labor force needed except maintenance
    • Inner air recycling design for heat and humidity control
    • Alarm system sensor with instant reporting function
    • Less power consuming and more stable Industrious modules
    • Fixed on floor and lockable


    2. Cost-saving solution



    • Independent modular hardward devices
    • Design and production on our own
    • Rigorous quality control
    • Complete supply chain management
    • Maintenance free,user friendly

    3. Appearance

           Coloful design

           Eyesight attractive

           Brand promotion with LOGO displaying and advertise video displaying

           Customizable decorations





    Certificates of  Ticket/Card Vending Kiosk Manufacturer/ Prepaid Cards Vending Machine

    Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine 1Waterproof Ticket / Card Dispenser Kiosk , Prepaid Card Vending Machine 2
