Shenzhen Lean Kiosk Systems Co., Ltd.

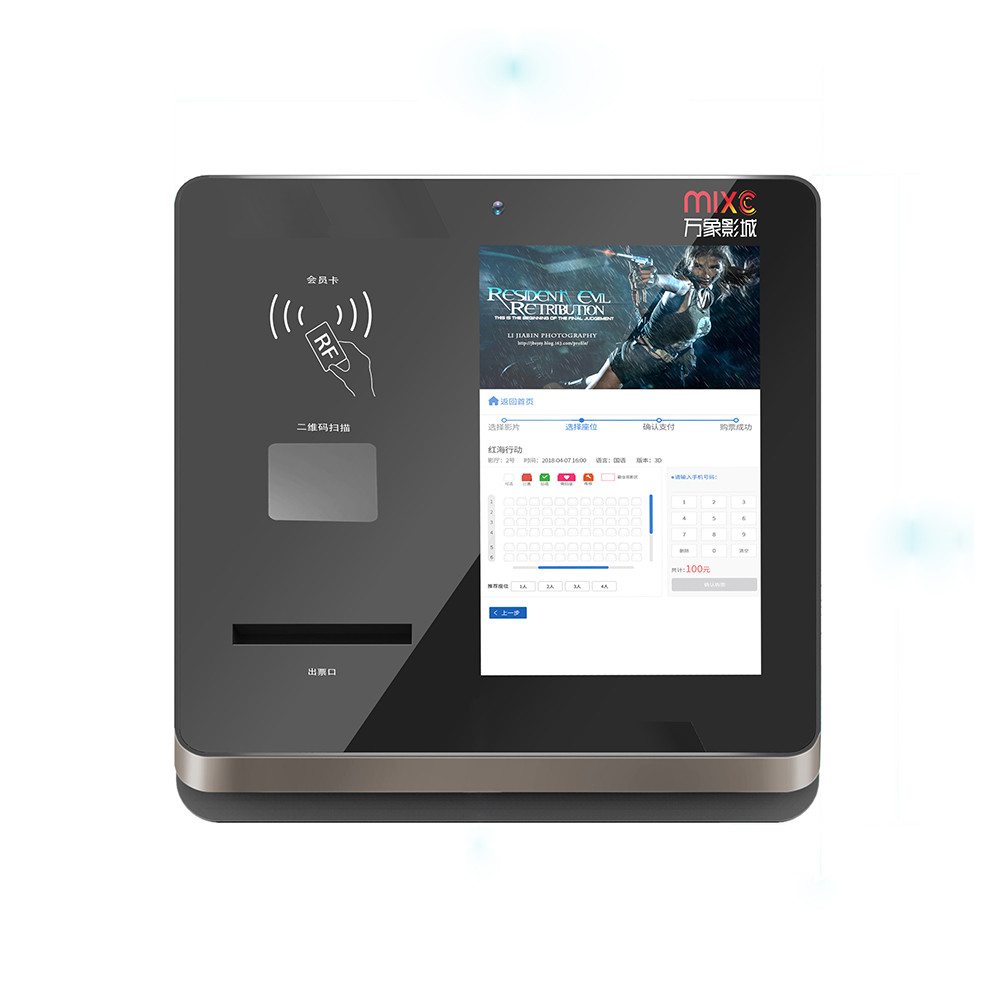

32" LCD Advertising Display Ticket Vending Machine For Movie Theatre

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8591
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Material: 1.5mm To 2.5mm Cold-roll Sheet Or Others Material Feature: Anti-dust, Anti-vandal
Application: Indoor Supported OS: Windows 7 Or Windows 8 Or Linux
Display: LCD, TFT, AUO Or Others Optional Size Of Screen: 17inch, 19inch Or Upon Customers’ Request
Touch Screen: IR/SAW/Capacitive Warranty: 1 Year
Power Supply: 110-120V, 220V-240V Or Optional Color: Gray (Optional)
Function: Bill Payment Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
High Light:

ticket dispenser machine

,

ticket dispensing machine

Product Description

32" LCD Advertising Display Ticket Vending Machine For Movie Theatre







  1. 32inch LCD advertising display
  2. 19" touch screen
  3. Movie Ticket Printer
  4. Member card reader
  5. RFID Card Reader
  6. Bank / Credit Card reader
  7. EPP
  8. Receipt printer ….


Standard hardware components List is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case







Other Optional hardware components List is as following:


  1. Cash acceptor
  2. Coin dispenser
  3. Advertising screen
  4. Barcode scanner
  5. Passport reader
  6. Web camera
  7. Full-contactless IC Card Reader
  8. Barcode Scanner
  9. Contactless Card reader
  10. Wireless Moudal


Description


  1. LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  3. LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.


Multifunction:


  • Hospital
  • Gas station
  • Shopping Mall
  • Movie Theatre
  • Railway Station
  • Metro Station
  • Parking Lot
  • Banks
  • Hotel
  • Other Public areas


Our Advantages:


Low Cost Solution


  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management
  • Easy of Operation
  • Modular design for easy maintenance


Elegant Appearance


  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification
  • Attractive decoration


Designed for 24 / 7 operation


  • Highly responsive user interaction
  • vandal resistant components
  • Tightly integrated hardwre and software
