24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant
24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant

24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8205
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Item: Self-ordering Kiosk Payment: Credit Card, QR Code
Screen: 21.5/23.8/27 Inch Usage: Catering/resyurant
Certification: CE FCC OS: Windows Or Android
QR SCANNER: Yes Printer: 80mm Thermal Printer
Wifi: Support Camera: Support
Floor Standing: Support
High Light:

Touch Screen Self Service Ordering Kiosk

,

24 Inch Self Service Ordering Kiosk

,

FCC self ordering kiosk for restaurants

Product Description

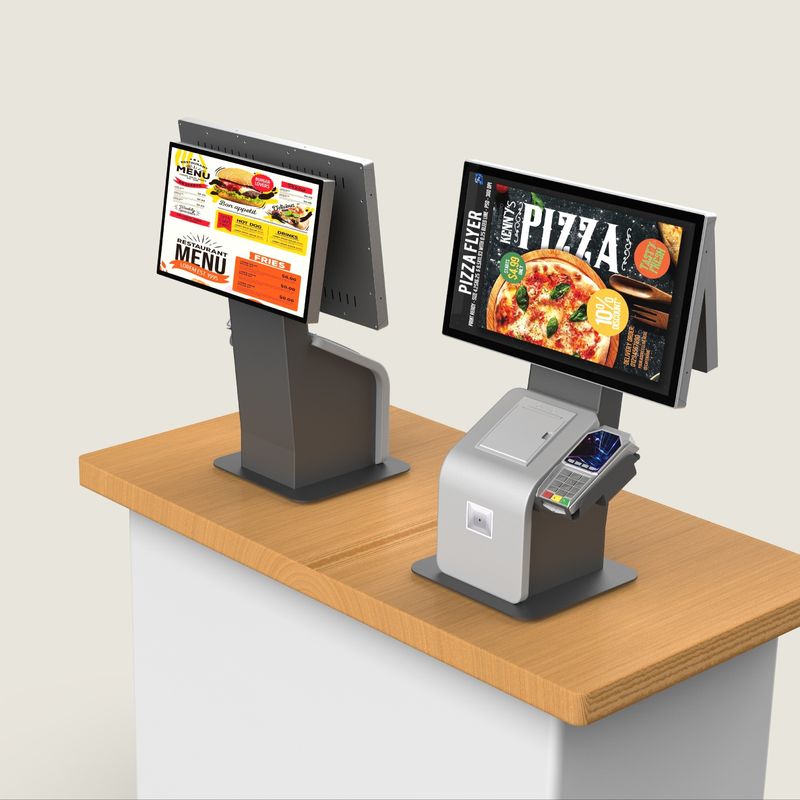

24 Inch Touch Screen Self Service Ordering Payment Kiosk For Supermarket Restaurant



Self-Ordering Kiosk





24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 024 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 124 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 2

Product Specifications
Model Number
Lean kiosk
CPU Support
Intel Core I3 1115G4 3.0GHz(up to 4.1GHz) ,FAN
Intel Core I5 1135G7 2.4GHz(up to 4.2GHz) ,FAN
System Memory
1 x DDR4, SO-DIMM, 4GB(Max. 32GB)
Storage Device
1x mSATA 128G (64G/256G optional )
Power
1 x 12V-7A/84W + 1 x 24V-2A/48W
OS Support
Win10 /11
LCD
Size
24" TFT LCD Panel
Brightness
1920*1080
Resolution
350cd/m²
Touch Screen

True-Flat Projected Capacitive Touch
External I/O Port
USB
4xUSB3.0 +6xUSB2.0
Serial port
1xDP9
DC-IN
1x DC-IN
DC-OUT
1x DC-OUT(Optional)
VGA
N/A
HDMI
2XHDMI
LAN
1xLAN(10/100/1000Mb)
Audio
1XAudio
Power Switch
1 x Power Switch
Components
Printer
80mm thermal printer,auto cutter, 170mm/sec (max.)
Camera
5MP Single camera /5MP Dual camera(Optional)
Proximity Sensor
60-80cm Proximity Sensor
Speaker
2 x 2w Speaker
Environment
Operating Condition
0°C - 50°C,20%RH - 90%RH
Storage Condition
﹣20°C - 70°C,10%RH - 90%RH
Optional
WIFI
mPCI-E WiFi/BT module
Sanner
VH460(USB,1D,2D,Reading precision:≥3mil,Dimension:36*45*25mm) DY3090(USB,1D,2D,Reading
precision:≥3mil,Dimension:21.4mm*10.8*15.2mm)
MSR
USB-HID Mode; 1,2 ,3 Track; ISO7810,7811-1/2/3/4/5,IBM, AAMVA,JIS-2 Standard
Payment Device Bracket Support
Custom bracket support for various EMV payment devices
NFC/RFID Reader
Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), NFC protocols - tag read/write (ISO/IEC-18092)
Status light
Printer status light(Red light in error ,Blue light when ready )

BENEFITS
Free-standing or Wall-mounted
Cuts Queues
Easy to Integrate
Modular
Durable
Multi-Touch
Interactive Screens



OPTIONAL COMPONENTS
Card Payment
RFID/NFC
Thermal Printer
Barcode/QR-code Scanner



Self-ordering kiosk with QR scanner and 80mm thermal printer 21.5/23.8/27 inch touch screen for catering



Boost Turnover with our Self-Service Kiosks:



Fully-Automated
Fully automate the order-taking process by letting your customers have the freedom to place orders themselves.

Our Self-Service Kiosks (Self Serve Kiosks) work as a self-catered point of sale that improves convenience for you,

your customers, and your business, as a whole.


Reduce Costs
Let your customers place their orders in a way that’s intuitive and reduces the need for extra staff. Now you can

streamline everything from the ordering process right down to payment.


Browsing Made Easy
Customers can browse through just about anything with our Self Service Kiosk. Be it a selection
of restaurants that are part of a food court or your business’ menu, customers can easily pinpoint
what they need for a smooth experience.

Automatically Fire Orders
Once customers have selected their desired items and placed their order, it will be fired automatically
to your kitchen staff via our Kitchen Display System. Not only does this improve efficiency, but it also
decreases waiting time and reduces the number of staff required for smooth service.
24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 3

24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 4

24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 5

24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 6

24 Inch Touch Screen Self Service Ordering Kiosk Payment For Supermarket Restaurant 7
Self-ordering kiosk with QR scanner and 80mm thermal printer 21.5/23.8/27 inch touch screen for catering
