Home > products > Self Ordering Kiosk > 32 Inch Touch Screen Payment Kiosk Self Ordering Wall Mounted For Fast Service

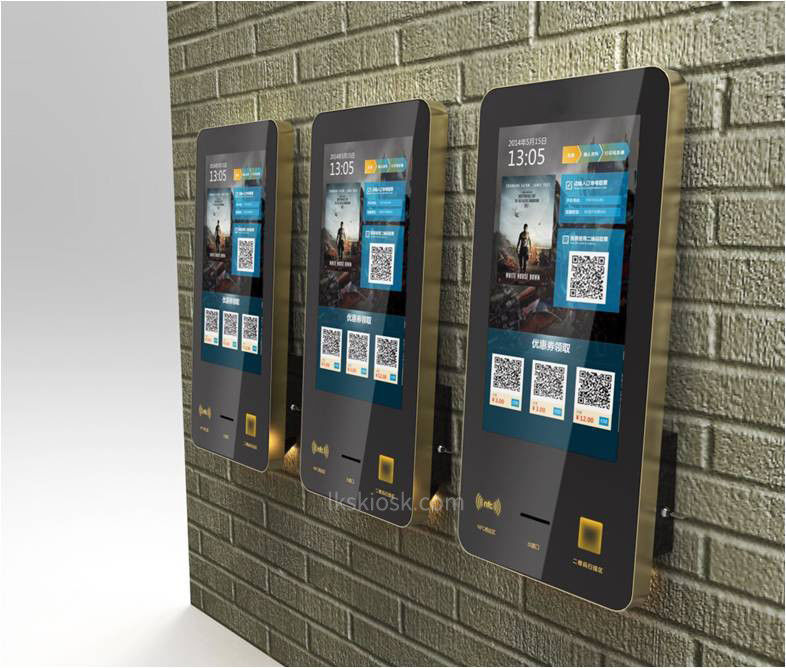

32 Inch Touch Screen Payment Kiosk Self Ordering Wall Mounted For Fast Service

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8233series

Payment & Shipping Terms

Minimum Order Quantity: 10 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

outdoor touch screen kiosk

,

outdoor information kiosk

,

32'' Touch Screen Payment Kiosk

Application:
Indoor
Display:
LCD, TFT, 1000 Cd/㎡
Touch Screen:
IR Water-proof
Type:
Wall Mounted,outdoor
I/O Ports:
2*USB;1*RJ45;1*Power
Other:
Air Conditioning To Control Inner Temperature Between -10℃ And 45℃
Application:
Indoor
Display:
LCD, TFT, 1000 Cd/㎡
Touch Screen:
IR Water-proof
Type:
Wall Mounted,outdoor
I/O Ports:
2*USB;1*RJ45;1*Power
Other:
Air Conditioning To Control Inner Temperature Between -10℃ And 45℃
Product Description

32 Inch Touch Screen Payment Kiosk Self Ordering Wall Mounted For Fast Service



Standard configuration:

  1. 32 inch monitor
  2. 32 inch IR touch screen
  3. Industrious PC,Intel dual-core Atom D525 chip,500GB HDD,2GB RAM
  4. Motorized card reader
  5. Webcam
  6. Speaker
  7. Wall mounted outdoor cabinet

32 Inch Touch Screen Payment Kiosk Self Ordering Wall Mounted For Fast Service

Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core Intel Atom D525
RAM 2GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD /LED monitor Screen Size 32 inch ( optional from 8inch to 65inch)
Brightness 500cd/m²,1000 cd/m²,2000cd/m² as demand
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 32 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

Webcam



Pixel 8,000,000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Motorized card reader Interface RS232
Card Type Support  IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows 8 operation system without license
Wall mounted Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case



32 Inch Touch Screen Payment Kiosk Self Ordering Wall Mounted For Fast Service
Other Optional hardware components List is as following:



  1. 1D/ 2D Barcode scanner
  2. PinPad
  3. Receipt printer
  4. WLAN,GPRS or 3G Wireless modules
  5. Cash acceptor
  6. Coin acceptor
  7. Magnetic card swipe reader
  8. Contactless card reader
  9. ID reader / Scanner


Description



  1. LKS is a Wall Mounted Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS main Wall Mounted Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  3. LKS  Wall Mounted Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS Wall Mounted Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.




Multi-function:


  • Restaurant
  • ATM / VTM Booth
  • Retailer store
  • Shopping Mall
  • Community
  • Railway Station
  • Metro Station
  • School
  • Supermarket
  • Gas station
  • Tourism destination
  • Coffe shop
  • Bus station
  • Parking lot
  • Other Public area




The Reasons You Choose LKS:



Cost-effective Hardware Solution Provider:



  • All outer compenents are modular;
  • Next to suppliers and having complete supply chain;
  • With the goals of free maintenance,operation friendly when design and produce;
  • Safety as well as attractive appearance taken into serious consideration.



Service For Software Development :



  • Provide SDK (Development DocumentS,DLL,Drivers)& Specification in English version for every compenents;
  • Professional software team offer pratical suggestions for your integrated software
  • development;







Design for  24 / 7 application:




  • Inner air recycling design for heat and humidity control
  • Bank card withdrawing auotomatically when power cut-off
  • Anti-theft,reporting automatically and immediately when broken in
  • Hang on the wall with safety locks




 Appearance

  • Anti-vandal and Anti-scratching painting
  • Flexible in customizable design
  • Elegant and noble design

32 Inch Touch Screen Payment Kiosk Self Ordering Wall Mounted For Fast Service 0



The Reason you choose LKS:

  1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  2. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  3. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  6. LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
