19'' Touch Display Self Service ordering Kiosk

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Certification: CCC

Model Number: LKS8568A

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: USD 1000-5000 per set

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

customer service kiosk


touch screen kiosks


19inch Self Service ordering Kiosk

Cold Rolled Steel
1 Year
Floor Stand Kiosk
Touch Screen Size:
19 Inch
Lcd Advertising Screen Size:
21.5 Inch
Cold Rolled Steel
1 Year
Floor Stand Kiosk
Touch Screen Size:
19 Inch
Lcd Advertising Screen Size:
21.5 Inch
Product Description

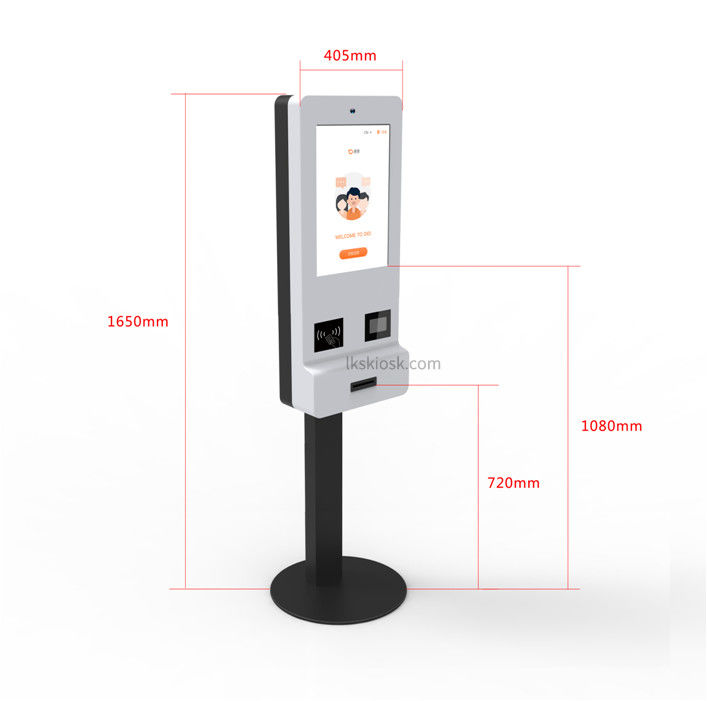

19'' Touch Display Self Service ordering Kiosk


LKS Optional color and 19 inch touch display kiosk mostly use in Social Insurance Department

developed specifically for insurance in Social Insurance Department.

LKS Optional color and touch screen healthcare kiosk mostly use in Social Insurance Department is manufactured in Cold-Roll Steel Sheets using steel plate of 1,5mm to 2.5mm which ensures the stability and rigidity of all structure.

And this kiosk comes with a 21.5 inch LCD advertising screen a bill acceptor and insurance policy printer, etc.  you can choose the functions which you like to constitute the machine you need.


Standard hardware components List of LKS Optional color and touch display kiosk mostly use in Social Insurance Department is as following:


1.19inch IR touch display

Designed for ease of use and durability, the main component of the kiosk is the touch screen. You can list a simple touch screen navigation. This ensures intuitive operation even for first time users; a key factor for success of any self-service solution.

2.Card reader


4.Bill acceptor

5.Insurance policy printer


7.Fingerprint reader

8.Sign pad


Main components​​ ​​:

  1. Industrious PC
  2. 19 inch IR touch screen
  3. Speaker
  4. Wireless Module
  5. Receipt Printer
  6. RFID Card Reader
  7. Entrance Of Bottle
  8. Exit Of Bottle

Standard hardware components List is as following:


Main Components Main specifications
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2030, 3.0GHZ; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6* RS-232 Ports;1* LTP;6 * USB Ports,8*GPIO;1*PCI
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Brightness 250cd/m2
Angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight Tube Life more than 40,000hours
Response Time <5ms
Max. Resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Touch Accuracy center: <1.5mm
edge: <3.2mm
Response Time <16ms
Voltage DC5V+/-5%
Interface RS232,USB
Glass Thickness 3mm
Resolution 4096x4096
Card Reader Reading Distance >4cm
Operating System windows98,Me ,XP,2003 ,Unix and Linux
Card Contact Number 200000 Secondary
Operating Temperature -20℃ to 60℃
Whether Contact Non-contact
Interface Serial ports,USB
Encrypted Pinpad Key Lifespan >2,000,000 times
Key Activation Force 2~3N
Key Trip >=0.45mm
Pin Input 10 numerical keys and 6 function keys
Power Voltage DC5V+/-10%,Max 200mA
Protection Level Ip65 static and ip54 dynamic
Cash dispenser Denomination 2 denomination
Cassette Capacity 214mm
Dispensing Speed 4 note/sec
Reject Capacity about 50 notes
Usable Note Size width:100~162mm
Cash acceptor Validation Rate 96% or higher on first insertion
Bill Path Width 62-77mm
Bill Path Length 120-160mm
Barcoded Coupons lengthwise two-way
Banknote Insertion lengthwise Four-way
Escrow One bill
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Coin Accepted Size Coin diameter: 15-31.5mm ( optionally up to 32.5mm)
Coin thickness: 1.5-2.5mm ( optionally bis 3.3mm)
Receiving Rate >99.6%
Accepting Speed 2 Coins /Sec
Supply Voltage 12V-24V DC
Coin Dispenser Dispensing Speed 12 note/sec
Storage Capacity 1500 coin
Coin Diameter 18~28.5mm
Coin Thickness 1.65~3.2mm
Power Voltage DC24V
Receipt printer Autocutter included
Technology Thermal printing
Paper Width 80mm
Printing Speed 150mm/s
Paper Thickness 0.06-0.15mm
Supply Voltage DC24V
UPS Input Voltage 145-290va
Output Voltage 200-255va
Transient Time ≦10ms
Max Time For Supplying a Single PC 3~20minutes (for single PC)
Digital Power Supply AC Input Voltage Range 100‐240VAC
Frequency 50Hz to 60Hz
Output Over Current Protection 110~130%
Frequency 50Hz to 60Hz
Accessories Wire-Lan Port, USB Ports, Speakers, Fans, Cables, Screws, Etc.
Operation System Windows 7 or Windows XP Operation System For Test
KIOSK Cabinet Durable Steel Frame, Slim And Smart Design; Easy to Install And Operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, Have Color And LOGO Upon Request.
Packing Security Packing Method With Bubble Foam+Wooden Case


Other Optional hardware components List of popular shopping mall kiosk with advertising screen is as following:

1. Cash Dispenser

2. Card Dispenser

3. Barcode Scanner

4. Fingerprint Reader


Other Features:


1. Software for this kiosk is not available, you need develop the software youself.
2. If you need, we can order Licensed Windows Operate System is available(Windows xp or Windows 7 test)
3. Due to problem caused by sun, water and other reasons, this kiosk only can be used indoor
4. Once again, the kiosk should work with payment software, right now the kiosk only can recognize how much the inserted money is, but what the money for, it has no idea.
5. Other more extra devices are available, the price will be much different.

6. Capcitive touch panel and other size monitor is available for this kiosk models.


Contact us freely to get more information about this kiosk, such as banknote acceptor and thermal printer.
