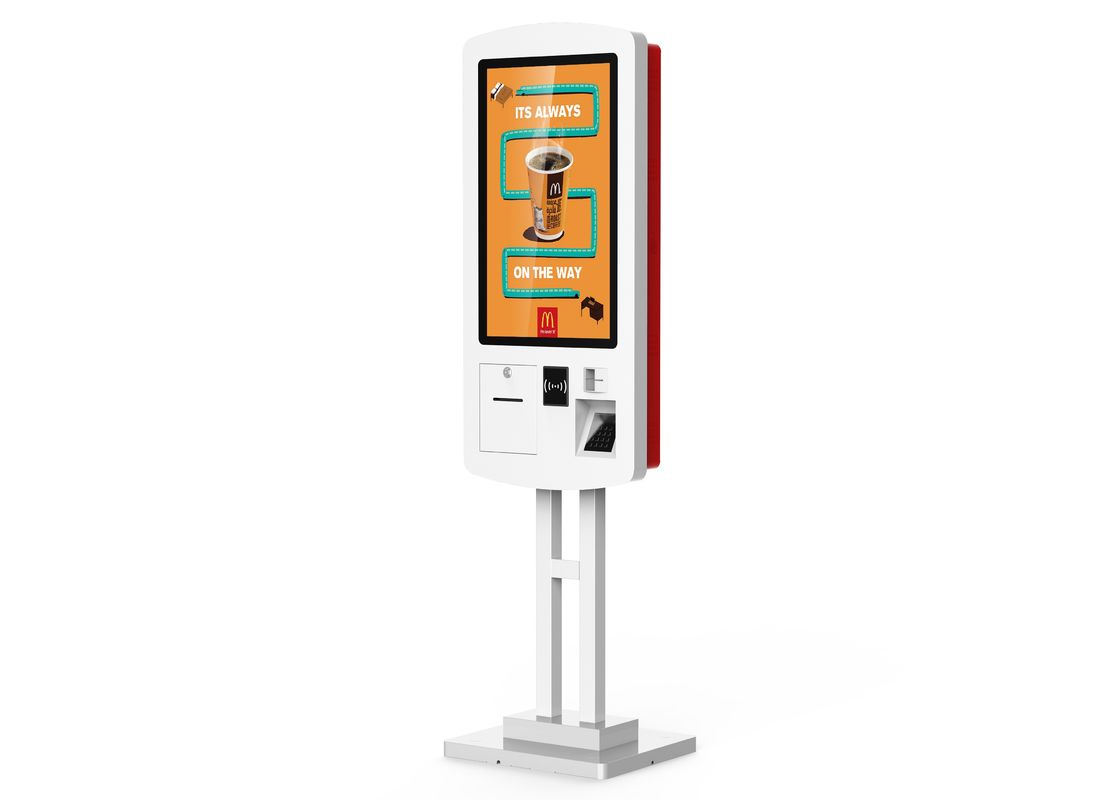

Touch Screen Display Self Service Order Kiosk Machine for Supermarket Restaurants

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8205

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

Touch Screen Display Self Service Payment Kiosk

,

Restaurants Touch Screen Ordering Kiosk

,

Touch Screen Self Service Ordering Kiosk

Item:
Self-ordering Kiosk
Payment:
Credit Card, QR Code
Screen:
Touch Screen Display
Usage:
Ordering At A Restaurant
Certification:
CE FCC
OS:
Windows Or Android
Item:
Self-ordering Kiosk
Payment:
Credit Card, QR Code
Screen:
Touch Screen Display
Usage:
Ordering At A Restaurant
Certification:
CE FCC
OS:
Windows Or Android
Product Description

Self Service Order Kiosk Machine Self Service Payment Kiosk for Supermarket Restaurants


Standard hardware components List of  Hotel And Airport Wall Mount Kiosk Information IR Touch Screen Broadband Kiosk Broadband  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case



 Touch Screen Display Self Service Order Kiosk Machine for Supermarket Restaurants 0

Touch Screen Display Self Service Order Kiosk Machine for Supermarket Restaurants 1Touch Screen Display Self Service Order Kiosk Machine for Supermarket Restaurants 2Touch Screen Display Self Service Order Kiosk Machine for Supermarket Restaurants 3




Main designs of  Hotel And Airport Wall Mount Kiosk Information IR Touch Screen Broadband Kiosk Broadband
Touch Screen Display Self Service Order Kiosk Machine for Supermarket Restaurants 4
