Outdoor 19 Inch Touch Screen Waterproof Highlight Screen Parking Kiosk For Cash Payment

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8501A

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
Highlight:

19 Inch Touch Screen Parking Garage Kiosk

,

Cash Payment Parking Lot Kiosk

,

Parking Kiosk For Cash Payment

12 Inch Screen:
Capacitive Touchable
22 Inch Screen:
LED / LCD TFT Monitor
Type:
Free Standing Dual Screen Kiosk
Cheque:
Scan And Storage
Billnote:
Validate And Accept
Receipt Printer:
80 Mm Width
12 Inch Screen:
Capacitive Touchable
22 Inch Screen:
LED / LCD TFT Monitor
Type:
Free Standing Dual Screen Kiosk
Cheque:
Scan And Storage
Billnote:
Validate And Accept
Receipt Printer:
80 Mm Width
Product Description

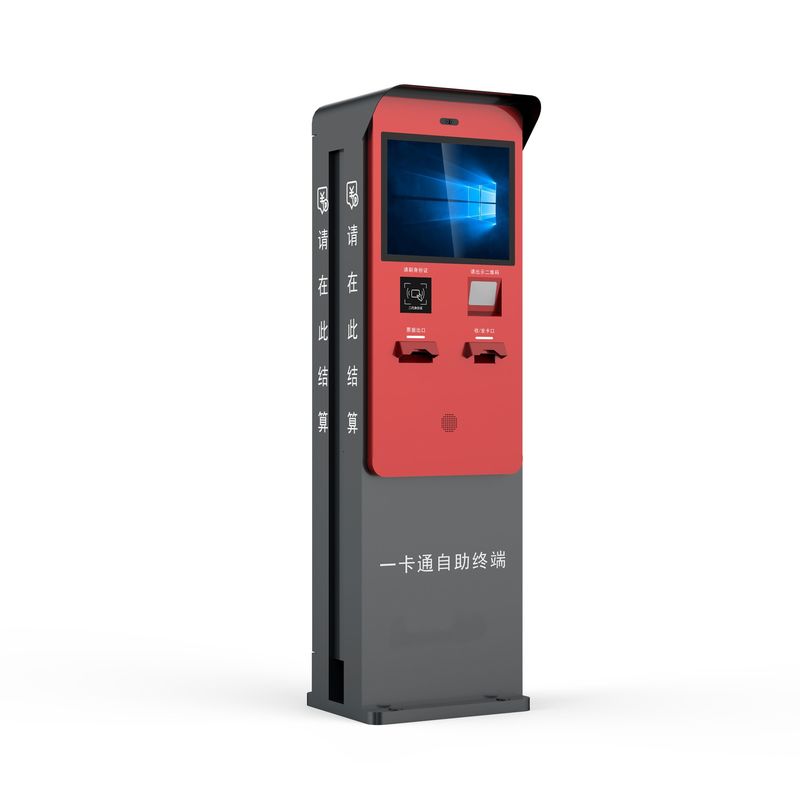

Outdoor 19 inch touch screen waterproof highlight screen parking kiosk for cash payment



Outdoor 19 Inch Touch Screen Waterproof Highlight Screen Parking Kiosk For Cash Payment 0



Components Details
PC System CPU Dual core E5700/G2030, 2.8ghz; Intel Dual Core I3/I5/I7 (optional)
RAM 2GB /4 GB / 8GB (optional)
HDD 500G (optional)
Interface 6 RS 232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
QR code scanner Reading mode CMOS
Port RS232 / USB 1.0
Reading code system 1D: Code 128;code 39; code 93; UPC-A; UPC-E; data bar; ISBN/ISSN, etc.
  2D: PDF 147; QR code; Maxi code; Aztec; LP code; Chinese-sensible code, etc.
Identification accuracy ≥ 3 mm
Read the depth of field 35mm-210mm
Working voltage DC 5V (+/-5%)
Power 1.75w
Cash Acceptor Validation Rate 96% or higher
Way of bill acceptance one by one
Capacity 600 pieces new banknotes maximal
Interface USB
Operating Voltage 12VDC +/- 10%
Operating Temperature 0° C to 50° C
LCD monitor Screen Size 17 inch
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:01:00
Backlight tube life more than 40,000hours
Max. resolution 1280x1024
Touch screen Screen Size 17 inch Diagonal
Resolution 4096x4096
High Transparence, high precision and durability, Orientation precision< 2mm(0.080 inch);pure tempered glass; Single-point touch Life expectancy more 50,000,000 times
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Output over current protection 110~130%
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows 10 operation system without license



Other Optional hardware components List of Car Parking kiosks is as follows:

QR code scanner;
Intercom video;
Help button;
credit card reader;
camera;

Outdoor 19 Inch Touch Screen Waterproof Highlight Screen Parking Kiosk For Cash Payment 1
Outdoor 19 Inch Touch Screen Waterproof Highlight Screen Parking Kiosk For Cash Payment 2
