Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS or customized |
| Certification: | CE, FCC |
| Model Number: | LKS8314B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 units |
| Packaging Details: | Film Wrap,Foam and Wooden Box |
| Delivery Time: | 4-6weeks upon payment |
| Payment Terms: | T/T in Advance |
| Supply Ability: | 1000-2000 units per month |
|
Detail Information |
|||
| High Light: | self service banking kiosk,customer service kiosk |
||
|---|---|---|---|
Product Description

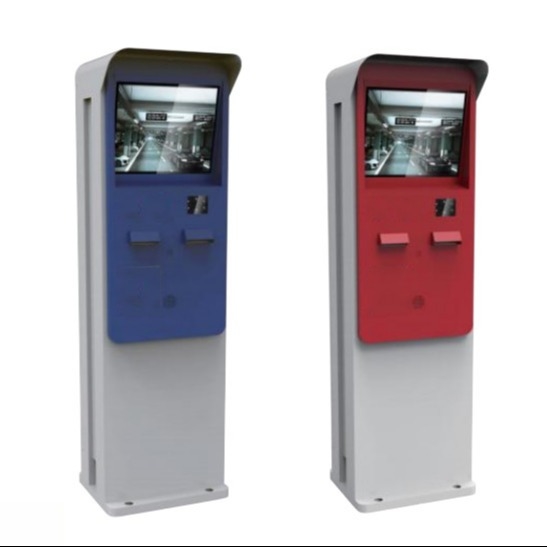

Parking Payment Kiosk Outdoor Waterproof and moisture-proof
Main functions:
Standard hardware components List of Custom Made Self Service Information machines Kiosk With Wifi / 3G Modems / GPRS as following:
| Components | Details | |
| PC system | Industrial Board | Advantech AIMB 562/Seavo H6116/ Gigabyte |
| CPU | Intel Dual- Core G2020 ,2.9GHZ | |
| RAM | 2GB /4 GB | |
| HDD | 320G / 500G | |
| Interface | 2 RS-232 Ports;1 LTP;4 USB Ports,1 10/100M Net Port | |
| PC Power Supply | Great Wall / HUNTKEY | |
| LCD monitor | angle | horizontal 100°above;Vertical 80°above |
| Brightness | 250cd/m2 | |
| Screen Size | 17 inch/19inch or other size | |
| Contrast | 1000:1 | |
| Backlight tube life | > 40,000hours | |
| Max. resolution | 1280×1024 or 1920*1080 | |
| Touch screen | Screen Size | 17/19 inch Diagonal or other size |
| Resolution | 4096x4096 | |
| High precision and durability, high Transparence , Orientation precision less than 2mm(0.080 inch); pure tempered glass;Single-point touch Life expectancy > 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 or USB |
| Card Type | Support IC Card, Magcard, Mifare S50,S70, RF Card, UL Card | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Certificate | EMV level.1 | |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Certificate | PCI 2.0 | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| Accessories | USB ports, speakers, screws, fans, cables, Wire-lan port, etc. | |
| Operation System | Win 7 or Win 8 operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, color and LOGO upon request. | |
| Packing | One kiosk packed in a big box with foam filler inside, then enhanced with export-worthy & transport-worthy ply-wooden crate | |
Other Optional hardware components List of Custom Made Self Service Information machines Kiosk With Wifi / 3G Modems / GPRS is as following:
2) If you are looking for a professional kiosk manufacturer of touch screen self service kiosk for your information orinternet kiosk project, payment kiosk project and bill payment kiosk project. Please feel free to contact me,we will assist you with all your touch screen payment kiosk requirements.
3) Self service bill payment kiosk with bill acceptor,card reader bill payment kiosk machine,self-service payment kiosk terminal will suit your particular needs and requirements - ranging from simple public internet access orinteractive payment kiosk to highly sophisticated public information delivery systems.
Applications:
Public places: Bus, Sub Way, Airport, Gas Station, Book store, Exihibition Hall, Park,
Stadium, Museum, Convention Center, Ticket agency
Non-profit Organization: Telecommunications, post office, hospital, school
Entertainments: Movie theaters, fitness halls, country clubs, massage room, bars, cafe,
internet bar, beauty shop, golf course
Business Organization:Supermarket, large-scale shopping mall, chain shops,
star-rated hotels, restaurant, travel agency, Pharmacy
Financial Organization: Banks, negotiable securities, funds, insurance company, Pawnshop
Our Advantages:
Elegant Appearance
Designed for 24 / 7 operation
Low Cost Solution
