Shenzhen Lean Kiosk Systems Co., Ltd.

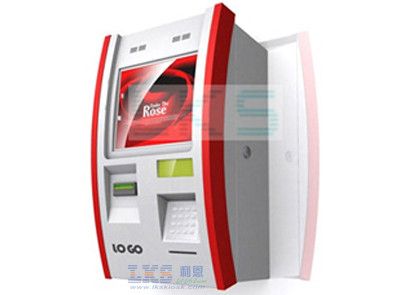

Waterproof Interactive Touch Screen Kiosk , IP65 Self Service Kiosk 2GB / 4GB / 8GB RAM

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8232
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Storage Temperature: -30℃~70℃ Working Temperature: -20℃~60℃
Inner Temperature Control: Air Conditioning Or Ceramic Heater Humidity: <90%
Painting: Robust Powder Coat Other: Anti-vandal,anti-rust,anti-dust
High Light:

outdoor touch screen kiosk

,

multimedia kiosks

,

IP65 Self Service Kiosk

Product Description

Self-Ordering Kiosk/Bright Waterproof half outdoor Kiosk IP65 Rating , 2GB / 4GB / 8GB RAM



Standard configuration:

  1. 17 inch monitor
  2. 17 inch IR touch screen
  3. Industrious PC,Intel dual-core Atom D525 chip,500GB HDD,2GB RAM
  4. Motorized card reader
  5. Thermal printer
  6. PCI encrypted pinpad
  7. Digital signature pad
  8. Webcam
  9. Speaker
  10. Wall mounted outdoor cabinet



Specification Bright Waterproof half outdoor Kiosk IP65 Rating , 2GB / 4GB / 8GB RAM  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD/SSD 1TB, SSD 128G/256G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/22 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Encrypting Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip  >2.5mm
Protection level IP65
Operating Temperature  0° C to 40° C
Motorized card reader Interface RS232
Card Type Support Magcard, IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Digital signature pad Size of the induction zone 4*3 inch
The precision of the digital pen  0.25 mm (0.01 inch)
Digital board resolution Digital board resolution
Digital pen induction height 15 mm maximum
Reading rate 100 pps (points per second)
Interface Interface
Others LED status indication
Air conditioning Input voltage 48 V
Working temperature -30℃ to 70℃
Way Air to air
Other 3 fans
Alarm system sensor / IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case




Other Optional hardware components List is as following:

  1. 1D/ 2D Barcode scanner
  2. Fingerprint scanner
  3. WLAN,GPRS or 3G Wireless modules
  4. Magnetic card swipe reader
  5. Contactless card reader
  6. ID reader / Scanner


Description



  1. LKS is a Wall Mounted Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS Wall Mounted Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS main Wall Mounted Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  4. LKS  Wall Mounted Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.




Multi-function:


  • Bank
  • Parking lot
  • ATM / VTM Booth
  • Retailer store
  • Shopping Mall
  • Community
  • Railway Station
  • Metro Station
  • School
  • Supermarket
  • Gas station
  • Tourism destination
  • Coffe shop
  • Bus station
  • Other Public area



Cost-effective Hardware Solution Provider:



  • With the goals of free maintenance,operation friendly when design and produce;
  • All outer compenents are modular;
  • Next to suppliers and having complete supply chain;
  • Safety as well as attractive appearance taken into serious consideration.



Service For Software Development :



  • Provide SDK (Development DocumentS,DLL,Drivers)& Specification in English version for every compenents;
  • Professional software team offer pratical suggestions for your integrated software



Design for  24 / 7 application:


  • Inner air recycling design for heat and humidity control
  • Bank card withdrawing auotomatically when power cut-off
  • Anti-theft,reporting automatically and immediately when broken in
  • Hang on the wall with safety locks






 Appearance

  • Anti-vandal and Anti-scratching painting
  • Elegant and noble design
  • Flexible in customizable design

Process Of Followsheet Of Self Service Free Standing Bottle Recycling Machine And smart Currency For Terminal​ ​ :
Kiosk Design Ideas
Mass Producing Of Self-Ordering Kiosk/ordering Machine for Restaurant:

Kiosk Design Ideas

Kiosk Design Ideas

Kiosk Design Ideas

Certificates of Self Service Free Standing Bottle Recycling Machine And Smart Currency For Terminal :
1
Receiption Desk of Self Service Free Standing Bottle Recycling Machine And Smart Currency For Terminal :

reception

Office of Self Service Free Standing Bottle Recycling Machine And Smart Currency For Terminal :

office new

Shipping Terms For Self Service Free Standing Bottle Recycling Machine And Smart Currency For Terminal​ :

Kiosk Design Ideas

Welcome to contact us and send inquiry now!
