Shenzhen Lean Kiosk Systems Co., Ltd.

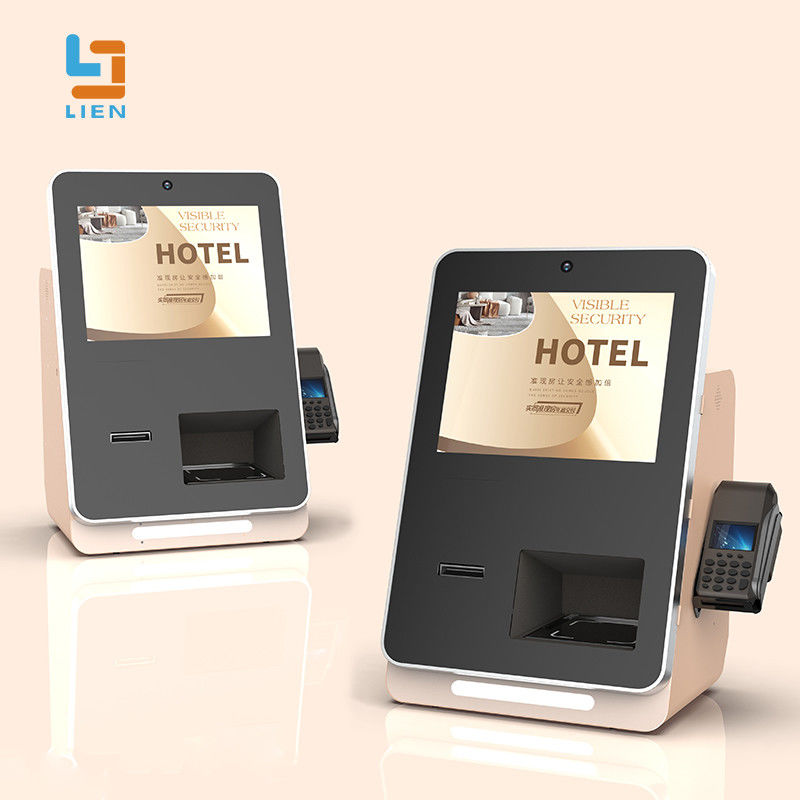

DIP Card Reader Self Ordering Kiosk , 13.3 Inch Self Service Check In Kiosk

Product Details:
Place of Origin: China
Brand Name: LKS / ODM / OEM
Certification: CE, FCC
Model Number: LKS8840A
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Material: Cold Rolled Steel Or Stainless Steel Material Feature: Anti-vandal, Anti-dust,Anti-acid,Anti-scratching
Application: Indoor / Outdoor Touch Screen: IR / SAW / Capacitive / Resistent
Warranty: 12 Months After Delivery Function: Ticket Vending,Information Checking,brochure Dispensing
Other: Transparent Boxes For Posters
High Light:

customer service kiosk


touch screen kiosks

Product Description


13.3 inch Custom Desktop Self-Service Kiosk /Payment kiosk,Mini Payment kiosk/Free Standing Kiosk with/without Cash

Standard configuration:

  1. 13.3 inch touch screen
  2. 13.3 inch monitor
  3. Speaker
  4. Webcam
  5. Encrypted Pinpad
  6. DIP card reader
  7. Ticket Printer
  8. Cash acceptor
  9. Industrial PC
  10. Free standing stylish cabinet

Specification  is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
SSD       128G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 13.3 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 13.3 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, Contact or contactless IC Card,Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Speaker Dual amplifier speakers,8Ω,5W
Webcam HD webcam
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


13.3 inch Custom Desktop Self-Service Kiosk /Payment kiosk,Mini Payment kiosk/Free Standing Kiosk with/without Cash

Other Optional hardware components List is as following:

  1. Coin acceptor / dispenser
  2. Cash dispenser
  3. Passport scanner
  4. QR code scanner
  5. Palm vein scanner
  6. WIFI or 3G Wireless module
  7. Thermal printer
  8. Intercom
  9. Passport scanner
  10. ID validation
  11. LED Light box for advertising

Multi-functional Application:

  • Restaurant
  • Hypermarket
  • Highway station
  • Tourism spot
  • Retailer store
  • Theatre
  • Cafes
  • Shopping Mall
  • Airport
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Lobby room
  • Street
  • Other Public area

Our Advantages:
Suitable for 24 / 7 operation

  • Desigh for higher standard and have a much longer life-cycle,Commecial-grade electronics
  • Function at a higher capacity and are fully integrated and more secure.

  • Increase effeciency,improve collections,creates less work for staff,cut lines

Cost-effective Solution

  • Up LED screen features dining, entertainment, local shopping and lodging options

  • Bottom LED touch screen handles Bill payment, ticketing vending

  • Ease of use,Outstanding and interactive Consumer/Customer seamless experience


  • Eyesight attractive
  • Brand promotion by LOGO displaying and video advertising playing
  • Human engineering verification
  • High-quality design sketch
  • Elegant and noble design
  • DIP Card Reader Self Ordering Kiosk , 13.3 Inch Self Service Check In Kiosk 0


The reason you choose LKS:

  1. LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
  2. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.

LKS Factory Tour-Process Of Followsheet
Kiosk Design Ideas
LKS Factory Tour- Kiosk Mass Producing.

Kiosk Design Ideas

Kiosk Design Ideas

Kiosk Design Ideas

LKS Certificates :
LKS Factory tour-Receiption Desk.


LKS Office

office new

LKS Shipping Terms

Kiosk Design Ideas

Welcome to contact us and send inquiry now!
