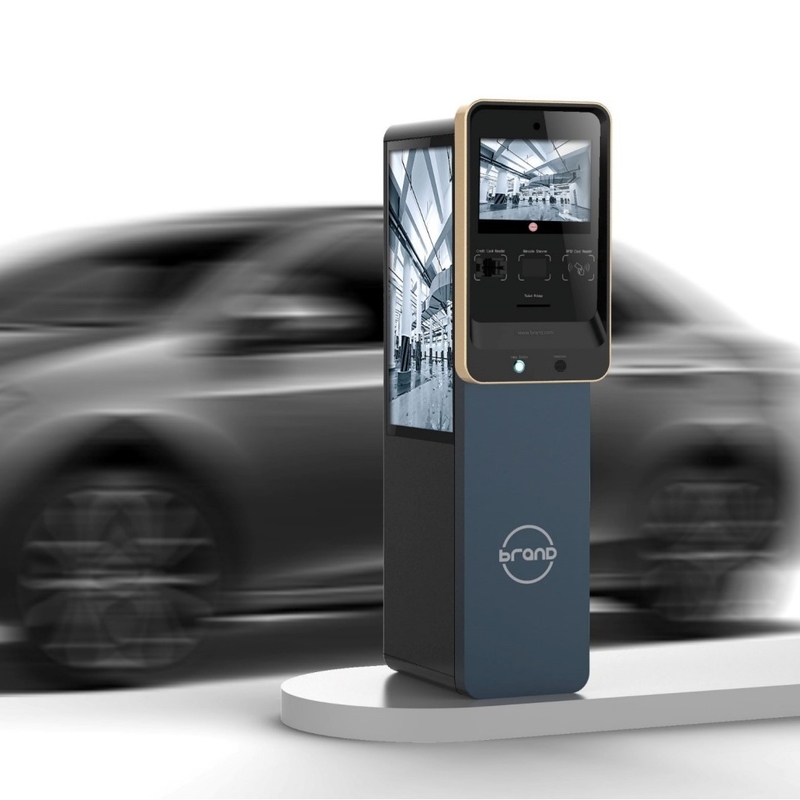

Anti-vandal Parking Payment Kiosk IR/SAW/Capacitive Touch Screen

Name: Anti-vandal Parking Payment Kiosk IR/SAW/Capacitive Touch Screen
Brand: Shenzhen Lean Kiosk Systems Co., Ltd.
SKU: LKS8327G
Price: 10,250.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8327G

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Anti-vandal Parking Payment Kiosk, Touch Screen Parking Payment Kiosk


Material:	1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others	Material Feature:	Anti-vandal, Anti-dust
Application:	Indoor	Supported OS:	Windows 7 Or Windows 8 Or Linux
Display:	LCD, TFT, AUO Or Others	Optional Size Of Screen:	17inch, 19inch Or Upon Customers’ Request
Touch Screen:	IR/SAW/Capacitive	Warranty:	12 Mounths Since Shipment
Power Supply:	110-120V, 220V-240V Or Optional	Color:	Yellow, Gray, Red, Black (Optional)
Function:	Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...	Type:	ATM Kiosk, Payment Kiosk

Material:	1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others
Material Feature:	Anti-vandal, Anti-dust
Application:	Indoor
Supported OS:	Windows 7 Or Windows 8 Or Linux
Display:	LCD, TFT, AUO Or Others
Optional Size Of Screen:	17inch, 19inch Or Upon Customers’ Request
Touch Screen:	IR/SAW/Capacitive
Warranty:	12 Mounths Since Shipment
Power Supply:	110-120V, 220V-240V Or Optional
Color:	Yellow, Gray, Red, Black (Optional)
Function:	Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Type:	ATM Kiosk, Payment Kiosk

Product Description

Parking Payment Kiosk

Main components :

10.4" touch screen
Cash dispenser
Card dispenser
Cash acceptor
Coin acceptor
Speaker
IC / RFID card printer
Cash valid
Visa, Mastercard, Maestro card reader
Encrypted Pin Pad….

Standard hardware components List is as following:

Components	Details
PC system	Industrial Board	Seavo/ Gigabyte/Advantech AIMB 562
	CPU	Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
	RAM	2GB /4 GB / 8GB
	HDD	500G
	Interface	6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
	PC Power Supply	HUNTKEY/Great Wall
LCD monitor	Screen Size	17 inch/19inch ( optional from 8inch to 65inch)
	Brightness	250cd/m2
	angle	horizontal 100°above;Vertical 80°above
	Contrast	1000:1
	Backlight tube life	more than 40,000hours
	Max. resolution	1280×1024
Touch screen	Screen Size	17/19 inch Diagonal ( optional from 8inch to 65inch)
	Resolution	4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Card Dispenser	Main Fuction	Combination of card issuing IC/RFID card Reading
	Communication Interface	RS232C / USB (HID)
	Card Dimmensions	Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm
	Card Stacking Capability	120 pcs in case of 0.76mm standard card ( without extension) ( Available load 500 pcs of card max if there is removable stacker)
Metal keyboard with touchpad	Keylift‐spanKeylift‐span
	Key force	2~3N
	Key trip	>2.5mm
	Protection level	ip65
Epson receipt thermal printer	Autocutter	included
	Technology	Thermal printing
	Paper width	80mm
	Printing speed	150mm/s
	Data buffer	4KB
	Interface	RS232 ,USB
Digital Power Supply	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
Accessories	Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System	Windows 7 or Windows XP operation system without license
KIOSK Cabinet	Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing	Security Packing method with bubble foam and wooden case

Other Optional hardware components List is as following:

Barcode scanner
Contactless Card reader
Wireless Moudal
Web camera
A4 Laser printer
Thermal printer
Intercom
Cash dispenser
Coin dispenser
Speaker
USB port
Advertising screen

Description

LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.

Multifunction:
