Wall Mounted Kiosk Self Service Payment Kiosk , 32 Inch Self Payment Kiosk Durable

Product Details

Place of Origin: China

Brand Name: LKS or Customized

Certification: CE, FCC

Model Number: LKS6330

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: USD 800-20000 /Units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

customer service kiosk

,

touch screen kiosks

Kiosk Type::
Kiosk Design Ideas
Application::
Banking, Retail,Post, Transport, Library,
Custom Design:
Waterproof,dustproof,anti-explosion Etc
Brightness:
250 Cd/㎡
Type Of Touch Screen:
SAW Touch Or IR Touch Or Capacity Touch
Material Feature:
Anti-dust, Anti-vandal
Kiosk Type::
Kiosk Design Ideas
Application::
Banking, Retail,Post, Transport, Library,
Custom Design:
Waterproof,dustproof,anti-explosion Etc
Brightness:
250 Cd/㎡
Type Of Touch Screen:
SAW Touch Or IR Touch Or Capacity Touch
Material Feature:
Anti-dust, Anti-vandal
Product Description

32 inch Self-Service Kiosk/Self-Service Machine Wall mounted Kiosk with Bank Card Reader, Custom Self-service Kiosk​ :



  Main components​​ ​​:

  1. Industrious PC
  2. 17 inch IR touch screen
  3. Speaker
  4. Wireless Module
  5. Receipt Printer
  6. RFID Card Reader
  7. 32 InchTop LCD Monitor For Advertising (Optional)
  8. Entrance Of Bottle
  9. Exit Of Bottle

Standard hardware components List  is as following:



Main Components Main specifications
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2030, 3.0GHZ; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6* RS-232 Ports;1* LTP;6 * USB Ports,8*GPIO;1*PCI
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Brightness 250cd/m2
Angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight Tube Life more than 40,000hours
Response Time <5ms
Max. Resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Touch Accuracy center: <1.5mm
edge: <3.2mm
Response Time <16ms
Voltage DC5V+/-5%
Interface RS232,USB
Glass Thickness 3mm
Resolution 4096x4096
Card Reader Reading Distance >4cm
Operating System windows98,Me ,XP,2003 ,Unix and Linux
Card Contact Number 200000 Secondary
Operating Temperature -20℃ to 60℃
Whether Contact Non-contact
Interface Serial ports,USB
Encrypted Pinpad Key Lifespan >2,000,000 times
Key Activation Force 2~3N
Key Trip >=0.45mm
Pin Input 10 numerical keys and 6 function keys
Power Voltage DC5V+/-10%,Max 200mA
Protection Level Ip65 static and ip54 dynamic
Cash dispenser Denomination 2 denomination
Cassette Capacity 214mm
Dispensing Speed 4 note/sec
Reject Capacity about 50 notes
Usable Note Size width:100~162mm
height:62~78mm
Cash acceptor Validation Rate 96% or higher on first insertion
Bill Path Width 62-77mm
Bill Path Length 120-160mm
Barcoded Coupons lengthwise two-way
Banknote Insertion lengthwise Four-way
Escrow One bill
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Coin Accepted Size Coin diameter: 15-31.5mm ( optionally up to 32.5mm)
Coin thickness: 1.5-2.5mm ( optionally bis 3.3mm)
Receiving Rate >99.6%
Accepting Speed 2 Coins /Sec
Supply Voltage 12V-24V DC
Coin Dispenser Dispensing Speed 12 note/sec
Storage Capacity 1500 coin
Coin Diameter 18~28.5mm
Coin Thickness 1.65~3.2mm
Power Voltage DC24V
Receipt printer Autocutter included
Technology Thermal printing
Paper Width 80mm
Printing Speed 150mm/s
Paper Thickness 0.06-0.15mm
Supply Voltage DC24V
UPS Input Voltage 145-290va
Output Voltage 200-255va
Transient Time ≦10ms
Max Time For Supplying a Single PC 3~20minutes (for single PC)
Digital Power Supply AC Input Voltage Range 100‐240VAC
Frequency 50Hz to 60Hz
Output Over Current Protection 110~130%
Frequency 50Hz to 60Hz
Accessories Wire-Lan Port, USB Ports, Speakers, Fans, Cables, Screws, Etc.
Operation System Windows 7 or Windows XP Operation System For Test
KIOSK Cabinet Durable Steel Frame, Slim And Smart Design; Easy to Install And Operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, Have Color And LOGO Upon Request.
Packing Security Packing Method With Bubble Foam+Wooden Case




Other Optional hardware components List of

32 inch Self-Service Kiosk/Self-Service Machine Wall mounted Kiosk with Bank Card Reader, Custom Self-service Kiosk​

 is as following:

1. Cash Dispenser

2.  Card Dispenser

3. Barcode Scanner

4.   Fingerprint Reader

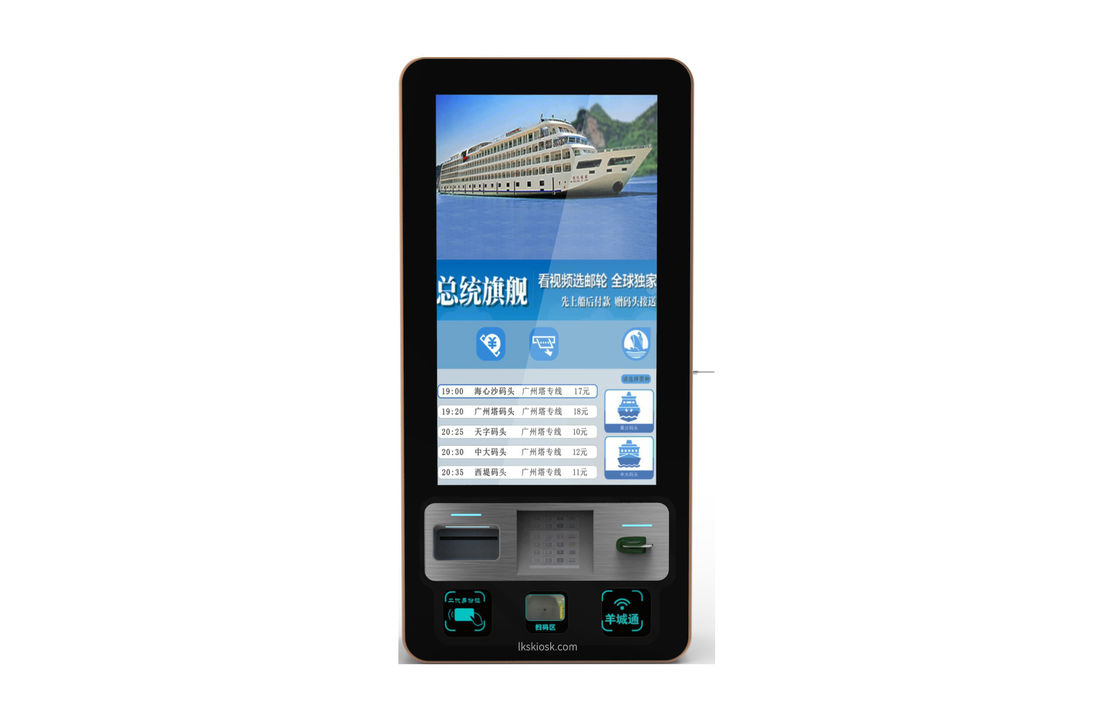

Main Picture Of 32 inch Self-Service Machine/Self-Ordering Kiosk/Wall mounted Kiosk with Bank Card Reader for Restaurant by LKS:

Wall Mounted Kiosk Self Service Payment Kiosk , 32 Inch Self Payment Kiosk Durable 0



Process Of Followsheet Of  Self Service Free Standing Bottle Recycling Machine And smart Currency For Terminal​ ​ :


Kiosk Design Ideas

Mass Producing Of Self-Ordering Kiosk/ordering  Machine for Restaurant:



Kiosk Design Ideas



Kiosk Design Ideas



Kiosk Design Ideas



Certificates of  Self Service Free Standing Bottle Recycling Machine And Smart Currency For Terminal
1

Receiption Desk of Self Service Free Standing Bottle Recycling Machine And Smart Currency For Terminal :



reception



Office of  Self Service Free Standing Bottle Recycling Machine And Smart Currency For Terminal :



office new



Shipping Terms For Self Service Free Standing Bottle Recycling Machine And Smart Currency For Terminal​ :



Kiosk Design Ideas



 Welcome to contact us and send inquiry now!
