Shenzhen Lean Kiosk Systems Co., Ltd.

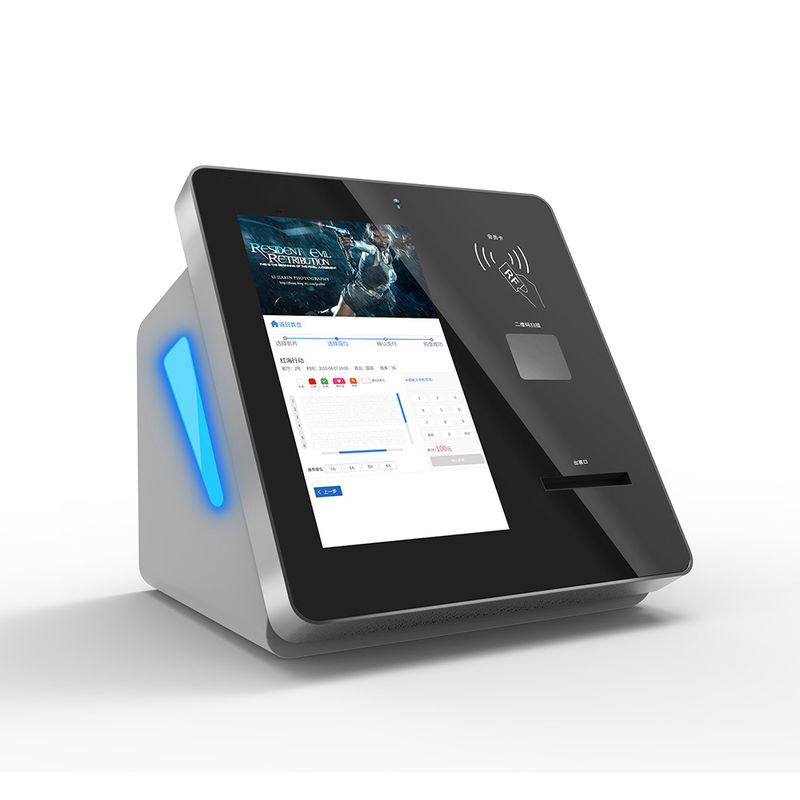

Ticket Dispenser Kiosk , Queue Ticket Machine With Android Touch Screen

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8310C
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

High Light:

ticket dispenser machine

,

card vending machine

Product Description


Ticket Dispenser Kiosk , Queue Ticket Machine With Android Touch Screen


  1. Parts: Contactless Card reader / Barcode Scanner….
  2. Touch Screen: IR/SAW/Capacitive
  3. Display: LCD, TFT, AUO or others
  4. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  5. Material Feature:Anti-dust, Anti-vandal
  6. Kiosk Color: upon the customer’s request
  7. Logo: By customer’s needs
  8. Power supply: 110-120V, 220V-240V or optional
  9. optional size of screen: 17inch, 19inch or upon customers’ request
  10. Warranty: 1 year
  11. Type: Payment kiosk, self-service kiosk, touchscreen kiosk
  12. Application: Indoor
  13. Supported OS: windows 7 , windows 8 or Linux


Standard hardware components List of  Ticket Vending Machine For Sale Sticker Android Touch Screen Queue System Kiosk s as following:


ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card ReaderInterfaceRS232
Card TypeSupport Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power VoltageDC 24V±5%
Card Entry methodMagnetic signal, Optoelectronic signal and rear card signal
Encrypted PinpadKeylift~span2,000,000 cycles
Key force2~3N
Key trip>2.5mm
Protection levelip65
Cashcode Bill acceptorValidation Rate96% or higher
Banknote InsertionFour-way
EscrowOne banknote
Capacity1000 notes Max
Coin AcceptorCoin AcceptanceMax 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coinswith high detection ability of counterfeit coins
Accepting Speed2 Coins/Sec
Supply Voltage10V-16V DC
Epson receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
UPSInput voltage145-290va
Output voltage200-255va
Max time for supplying a single PC3~20minutes (for single PC)
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case


Other Optional hardware components List of Ticket Vending Machine For Sale Sticker Android Touch Screen Queue System Kiosk is as following:


  1. Wireless module
  2. Barcode scanner
  3. Passport reader
  4. Coin Recycle
  5. Web camera
  6. Cash dispenser
  7. Coin dispenser
  8. Advertising screen
  9. A4 Laser printer
  10. RFID Card reader


Description


  1. LKS mainTicket Vending Machine are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  2.  LKS is a professional Ticket Vending Machine manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  3. LKS Ticket Vending Machine is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS Ticket Vending Machine is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.



Multifunction:

  • Hotel
  • Hospital
  • Theatre
  • Banks
  • Metro Station
  • Parking Lot
  • Restaurants
  • Railway Station
  • Shopping Mall


Our Advantages:


Low Cost Solution


  • Easy of Operation
  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management


Elegant Appearance


  • Multi-color processed surface
  • Human engineering verification
  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer


Designed for 24 / 7 operation


  • vandal resistant components
  • Highly responsive user interaction
  • Tightly integrated hardwre and software
