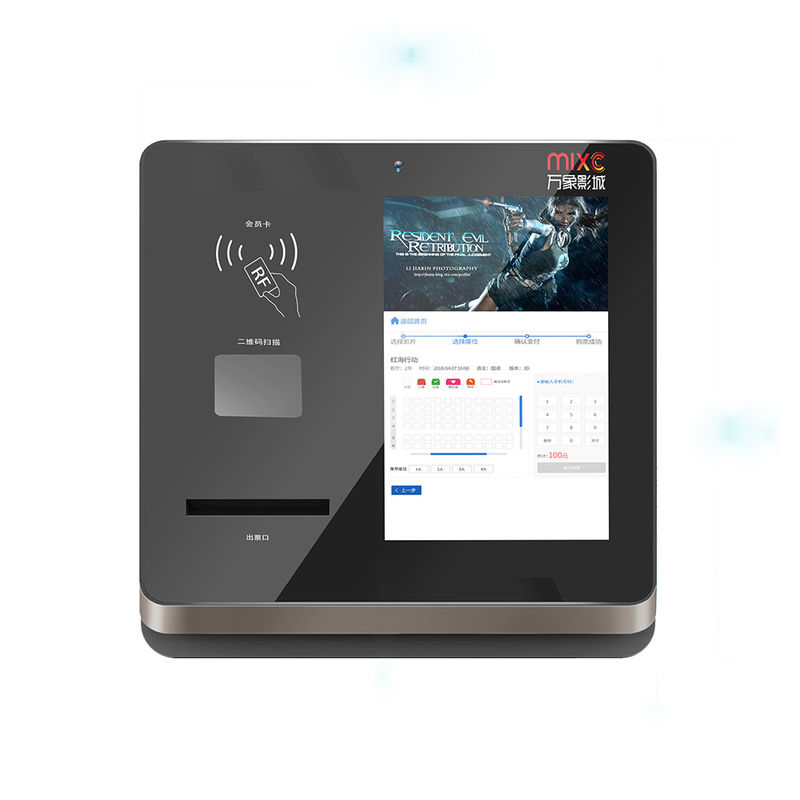

Cinema Ticket self-service kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8564N

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
Highlight:

ticket dispenser machine

,

ticket dispensing machine

Product Description

Cinema Ticket self-service kiosk





  1. optional size of screen: 17inch, 19inch, 32inch or upon customers’ request
  2. Kiosk Color: upon the customer’s request
  3. Logo: By customer’s needs
  4. Touch Screen: IR/SAW/Capacitive
  5. Display: LCD, TFT, AUO or others
  6. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  7. Material Feature:Anti-dust, Anti-vandal
  8. Type: Payment kiosk, self-service kiosk, touchscreen kiosk
  9. Application: Indoor
  10. Power supply: 110-120V, 220V-240V or optional
  11. Warranty: 1 year
  12. Supported OS: windows 7 , windows 8 or Linux
  13. Parts: Card Dispenser / Coin acceptor / IC Card reader / Receipt printer….



Main Features of LKS Ticket vending Kiosk:

  1. Different size screen industrial display
  2. 1.5mm~3mm robust cold rolled steel kiosk cabinet
  3. Easy service access through the front or back
  4. Ideal for payment applications (Cash/Non-Cash)
  5. Space for all functions with bill acceptor, card reader,  printer, barcode scanner



Standard hardware components List of Automatic Queue System  In-store Cataloguing Curvy Large 42inch And 32inch Adversting LCD Kiosk With Modern New Design  is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 10.4inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 10.4 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List of Automatic Queue System  In-store Cataloguing Curvy Large 42inch And 32inch Adversting LCD Kiosk With Modern New Design  is as following:

  1. 32inch LED display
  2. Coin dispenser
  3. Card dispenser
  4. Cash acceptor
  5. Advertising screen
  6. Barcode scanner
  7. Finger printer reader
  8. Web camera
  9. Wireless Modul
  10. RFID Card reader


Description


  1.  LKS is a professional Ticket Vending Machine manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS Ticket Vending Machine is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS mainTicket Vending Machine are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  4. LKS Ticket Vending Machine is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.



Multifunction:


  • Hotel
  • Restaurants
  • Hospital
  • Theatre
  • Banks
  • Bus station
  • Railway Station
  • Metro Station
  • Parking Lot
  • Shopping Mall


Our Advantages:


Elegant Appearance


  • High-quality design sketch
  • Multi-color processed surface
  • Human engineering verification
  • Regular elegant design
  • Attract end customer
  • Attractive decoration


Low Cost Solution


  • Stable-quality hardward components
  • Complete supply chain management
  • Easy of Operation
  • Modular design for easy maintenance
  • Built on widely used stable provden technology



Designed for 24 / 7 operation


  • Tightly integrated hardwre and software
  • vandal resistant components
  • Highly responsive user interaction
