Self Service Kiosk With Metal Encrypted PIN Pad

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS6338B
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

High Light:

ticket dispensing machine


card vending machine

Product Description

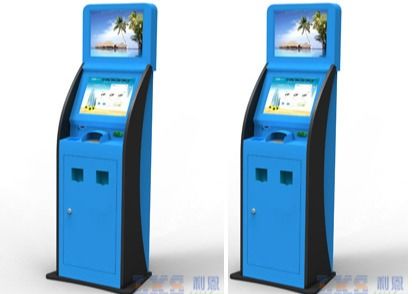

Desktop 21.5" Touch Screen Self Service Kiosk With Metal Encrypted PIN Pad





  1. Power supply: 110-120V, 220V-240V or optional
  2. Warranty: 1 year
  3. Touch Screen: IR/SAW/Capacitive
  4. Display: LCD, TFT, AUO or others
  5. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  6. Material Feature:Anti-dust, Anti-vandal
  7. Type: Payment kiosk, self-service kiosk, touchscreen kiosk
  8. Application: Indoor
  9. Supported OS: windows 7 or Linux
  10. optional size of screen: 21.5" or upon customers’ request
  11. Kiosk Color: White, Black or others
  12. Logo: Welcome
  13. Parts: Barcode scanner, RFID card reader….


Standard hardware components List of Desktop 21.5" Touch Screen Self Service Kiosk With Metal Encrypted PIN Pad And IC / Magnetic Card Reader is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 21.5inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 21.5 inch Diagonal ( optional from 17inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232 / USB
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
RFID Card reader Interface  Support ISO14443
Card Type ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Status Display LED indicator to show the power or communication status
Operated Temperature from -20 to +60ºC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case

Other Optional hardware components List of Desktop 21.5" Touch Screen Self Service Kiosk With Metal Encrypted PIN Pad And IC / Magnetic Card Reader  is as following:


  1. Size for TFT LCD
  2. Touch screen
  3. Infared touch screen
  4. Host computer
  5. Inner speaker
  6. Interface : USB 2.0, RJ-45
  7.  Dual screen
  8. RF card card reader
  9. 2-3 track magnetic card reader
  10. Card writer
  11. Card dispenser
  12. Thermal printer
  13. A4 laser printer
  14. Keypad
  15. plastic keyboard
  16. Vandal-proof stainless steel  keyboard
  17. Bluetooth
  18. GPRS
  19. Coin acceptor
  20. Cash acceptor
  21. Barcode scanner
  22. Web camera
  23. OS : Windows XP
  24. Input voltage 110±10% 50Hz±1Hz
  25. Input voltage 220±10% 50Hz±1Hz
  26. UPS(uninterruptible power supply)
  27. With your own Logo



  1. LKS mainTicket Vending Machine are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  2. LKS Ticket Vending Machine is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  3.  LKS is a professional Ticket Vending Machine manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  4. LKS Ticket Vending Machine is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc


  • Hotel
  • Restaurants
  • Hospital
  • Theatre
  • Banks
  • Bus station
  • Railway Station
  • Metro Station
  • Parking Lot
  • Shopping Mall


Our Advantages:
Elegant Appearance

  • High-quality design sketch
  • Multi-color processed surface
  • Human engineering verification
  • Regular elegant design
  • Attract end customer
  • Attractive decoration


Designed for 24 / 7 operation

  • Tightly integrated hardwre and software
  • vandal resistant components
  • Highly responsive user interaction


Low Cost Solution

  • Stable-quality hardward components
  • Complete supply chain management
  • Easy of Operation
  • Modular design for easy maintenance
  • Built on widely used stable provden technology
