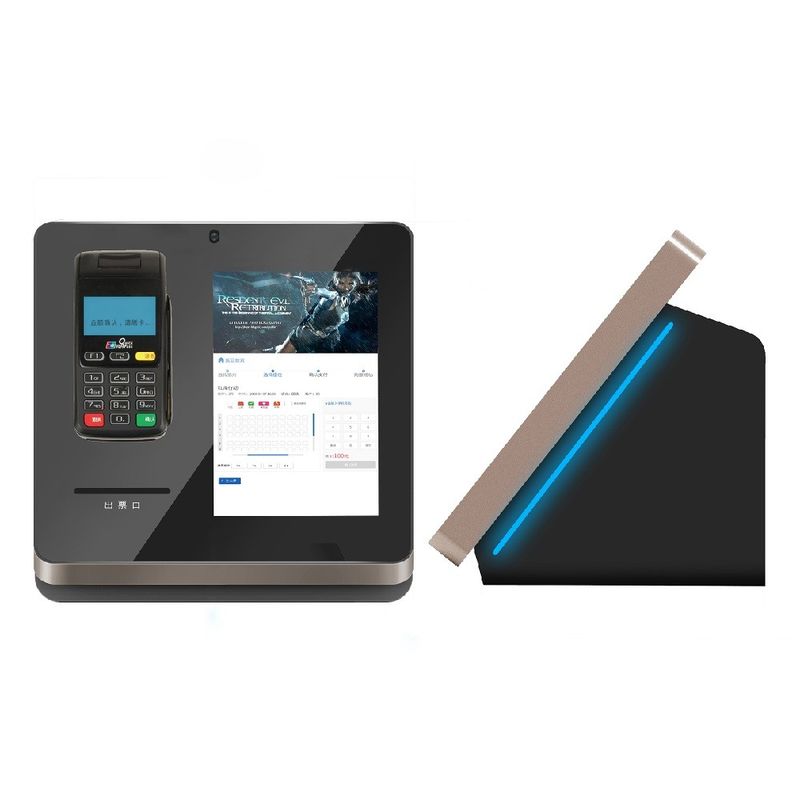

IR Touch Screen self service Ticket Machine Back LED Light Advertising Panel

IR Touch Screen self service Ticket Machine Back LED Light Advertising Panel

    • IR Touch Screen self service Ticket Machine Back LED Light Advertising Panel
    • IR Touch Screen self service Ticket Machine Back LED Light Advertising Panel
    • IR Touch Screen self service Ticket Machine Back LED Light Advertising Panel
  • IR Touch Screen self service Ticket Machine Back LED Light Advertising Panel

    Product Details:

    Place of Origin: China
    Brand Name: LKS or customized
    Certification: CE, FCC
    Model Number: LKS8504A

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Units
    Packaging Details: Film wrap, foam and wooden box
    Delivery Time: 4-6 weeks upon payment
    Payment Terms: T/T in advance, Western Union, L/C
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Material: Cold Rolled Steel ,Anti-vandal, Anti-dust,Anti-acid,Waterproof Type Of Card To Be Read: NFC / RFID Bank Or Member Card
    Function: Self Payment,advertising Display,ticket Vending Type: Top Up Single Screen With Advertising Panel At Bottom
    Cell Phone Payment Way: Acoustic And NFC 2D Barcode Type: 2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140),Aztec, Maxicode, Etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 Of 5 ISBN, Code 93, UCC/EAN-128, GS1 Databar
    Other: Dual 80mm Width Ticket Printers Wireless Module: WLAN
    High Light:

    ticket dispenser machine

    ,

    ticket dispensing machine

    42 Inch IR Touch Screen Ticket Vending Machine Back LED Light Advertising Panel




    Standard configuration:


    1. 42 inch HD monitor
    2. 42 inch IR touch screen
    3. HD Webcam
    4. Industrious PC,2G RAM,500G HDD
    5. Wireless module WLAN
    6. 2D Barcode scanner for barcode from smart phones and cards,tickets,papers
    7. Speaker
    8. 2*Ticket printers
    9. Acoustic payment module
    10. NFC card reader
    11. Back LED light advertising panel
    12. Free standing single screen cabinet



    Specification  is as following:


    ComponentsDetails
    PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
    CPU Intel Dual Core G2020
    RAM2 GB
    HDD500G
    Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
    PC Power SupplyHUNTKEY/Great Wall
    LCD monitorScreen Size42 inch ( optional from 8inch to 65inch)
    Brightness250cd/m2
    anglehorizontal 100°above;Vertical 80°above
    Contrast1000:1
    Backlight tube lifemore than 40,000hours
    Max. resolution1280×1024
    Touch screenScreen Size42 inch Diagonal ( optional from 8inch to 65inch)
    Resolution4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Receipt / Ticket PrinterInterfaceHigh Speed USB
    Resolution4800*1200 maximum
    Printing speed4.8 ipm
    Width58 /80 /112 mm
    LengthCustomizable

    Webcam



    Resolution1280*720
    Pixel8000000
    Adaptive Resolution1280*720
    InterfaceUSB 2.0
    DriverNo
    NFC card readerStatus DisplayLED indicator to show the power or communication status
    Card Type ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
    TypeSupport  ISO14443
    2D scannerReadable Code CMOS
    Resolution  752*480
    Readable Code2D PDF417, QR Code(Model 1/2),  DataMatrix(ECC200, ECC000, 050, 080, 100,140),     Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc
     ApprovalFCC Part15 Class B, CE EMC Class B
    Work VoltageDC 5V (4.5-5.5V)
    InterfaceRS232, USB
    Wireless moduleWLAN moduleWith industrious antenna exposure
    Back LED light panelFunctionDisplaying advertising
    SpeakersFeaturesDual channel amplified speakers for Stereo ,8Ω 5W
    Digital Power SupplyAC input voltage range100~240VAC
    Frequency50Hz to 60Hz
    AC input voltage range100~240VAC
    Frequency50Hz to 60Hz
    AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
    Operation SystemWindows 7 or Windows XP operation system without license
    Free standing CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    PackageSecurity Packing method with bubble foam and wooden case


    Other Optional hardware components List is as following:


    1. Dot matrix printer
    2. Cash dispenser
    3. Coin acceptor
    4. Cash / Coin dispenser
    5. Palm vein scanner
    6. Coin dispenser
    7. ID / Driver licence / Social insurance card double-side scanner
    8. Fingerprint scanner
    9. Passport scanner
    10. Stainless metal keyboad with track ball
    11. Digital signature pad
    12. Manual magnetic stripe swipe card reader
    13. Cheque scanner / acceptor with MICR function


    Description


    1. LKS Ticket Vending Machine Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
    2. LKS main Ticket Vending Machine Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
    3. LKS Ticket Vending Machine Kiosk manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
    4. LKS is a Ticket Vending Machine Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.


    Application


    • Cinema
    • Hospital
    • Museum
    • Supermarket
    • Bank
    • Retailer store
    • Coffe shop
    • Park
    • Gymnasium
    • Conference lobby
    • Exibition
    • Coffe shop
    • Shopping Mall
    • Railway Station
    • Metro Station
    • Parking Lot
    • Bus station
    • Other Public area


    Our Advantages:


    Cost-saving solution


    • Rigorous quality control for every compenent and complete machine
    • Design and production on our own
    • Independent modular hardward devices
    • Complete supply chain management
    • Maintenance free,user friendly
    • Back LED light panel for advertising releasing,and changeble



    Design for  24 / 7 Operation


    • Fixed on floor by screws and doors are lockable
    • No staff needed during night
    • Two ticket printers,reducing frequency of maintenance
    • Inner air recycling design for heat and humidity control
    • Less power consuming and more stable Industrious modules




     Appearance


    • Eyesight attractive,Coloful design
    • Big screen for loop continous advertising playing
    • Robust and secured cabinet
    • Brand promotion with LOGO displaying and advertise video displaying
