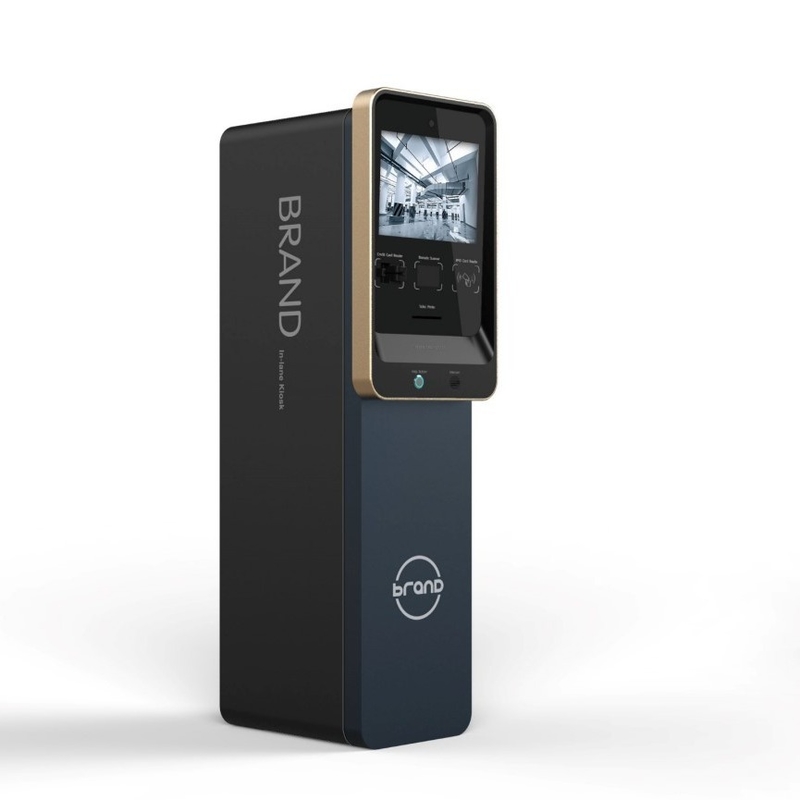

Parking payment kiosk with cash acceptor and card reader

Product Details

Place of Origin: China

Brand Name: LKS / ODM / OEM

Certification: CE, FCC

Model Number: LKS8561

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

touch screen kiosk


digital signage kiosk

1D And 2D
98% Or Higher Detection Rate
Counterfeit Currency Rejection
Cash Box Empty Or Full Alarm
Accepting Way:
4 Way For Billnote
Stainless Steel Pipe For The Cabinet
1D And 2D
98% Or Higher Detection Rate
Counterfeit Currency Rejection
Cash Box Empty Or Full Alarm
Accepting Way:
4 Way For Billnote
Stainless Steel Pipe For The Cabinet
Product Description


Standard configuration:

  1. 19 inch monitor
  2. 17 inch monitor
  3. 17 inch touch screen
  4. Webcam
  5. Industrious PC
  6. Cheque scanner
  7. Speaker
  8. QR code scanner
  9. Cash acceptor
  10. Receipt printer
  11. Encrypted Pinpad
  12. Digital signature pad
  13. Bank card reader
  14. Manual magnetic swipe card reader
  15. UPS
  16. Alarm system sensor
  17. Free standing dual screen cabinet



Specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/ 19 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Encrypting Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip  >2.5mm
Protection level IP65
Operating Temperature  0° C to 40° C
Motorized card reader Interface RS232
Card Type Support Magcard, IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Cash acceptor Validation Rate 98% or higher
Banknote size Width: 62or 71mm; Length:120-160mm
Detection ability High detection of forged bills
Bill Escrow one bill
Cashbox capacity 1000  banknotes max
Operating Voltage  12V DC  or 24V AC
Operating Temperature 0° C to 55 ° C  (12 V DC platform);  -18° C to +60 ° C  (24 V AC platform)
Manual magnetic stripe swipe card reader Card standard ISO 7811/2
Head life

At least 500,000 times

Card thickness 0.76 ± 0.08 mm
Supply Voltage 5V DC
Cheque scanner/acceptor Media size Width:60~110mm;Length:130~230mm;Thickness:0.08~0.13mm
Image scan Range:A6 size(105mm),Duplex scan
Method:Color CIS(control image sensor)
Resolution:200 dpi basic spec,256 gray scale
MICR recognition E138&CMC7
Interface USB high speed
Digital signature pad Size of the induction zone 4*3 inch
The precision of the digital pen  0.25 mm (0.01 inch)
Digital board resolution Digital board resolution
Digital pen induction height 15 mm maximum
Reading rate 100 pps (points per second)
Interface Interface
Others LED status indication
UPS Input voltage 145-290 V
Output voltage 200-255 V
Output frequency 50±0.5Hz
Transient time 50±0.5Hz
Max time for supplying a single PC 3~20minutes (for single PC)
Alarm system sensor / IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
Speaker Features Dual channel amplified speakers for Stereo ,8Ω 5W
Webcam 500 pixels,no driver
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:


  1. Barcode scanner
  2. NFC loyalty card reader
  3. Coin acceptor
  4. Coin / Cash dispenser
  5. Palm vein scanner
  6. WIFI or 3G Wireless module
  7. ID / Driver licence / Social insurance card double-side scanner
  8. A4 printer



  • Convenience store
  • Hypermarket
  • Retail chain store
  • School
  • Pharmacy
  • Clinic
  • ATM / VTM / ITM booth
  • Airplane boarding room
  • High railway waiting room
  • Tourism sites
  • Hospital
  • Bank
  • Retailer store
  • Human resources room
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area



  • Designed to eventually allow customers online shopping and fulfillment options
  • Accomplish multiple tasks in a single multi-function kiosk

  • For interactivity, personalization, loyalty programs and social media exposure

  • All modular components  work together, but can be tested independently.




  • Cabinet with feature of anti-vandal,anti-dust,anti-rust,anti-vandalism,anti-scratching,waterproof
  • Color and LOGO painting as customizable
  • Noble and elegant design,robust and safe building
