Shenzhen Lean Kiosk Systems Co., Ltd.

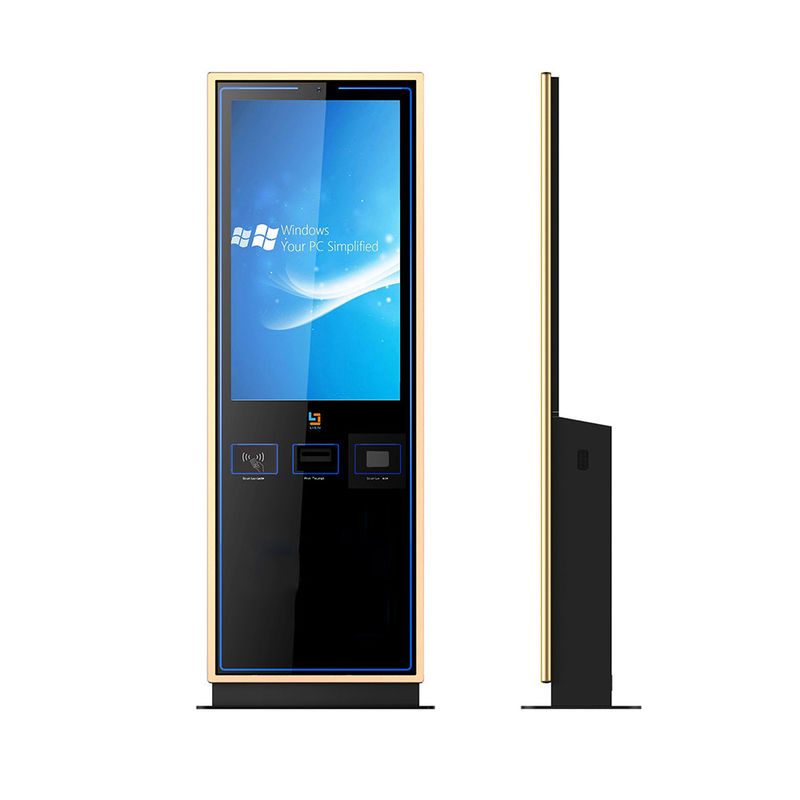

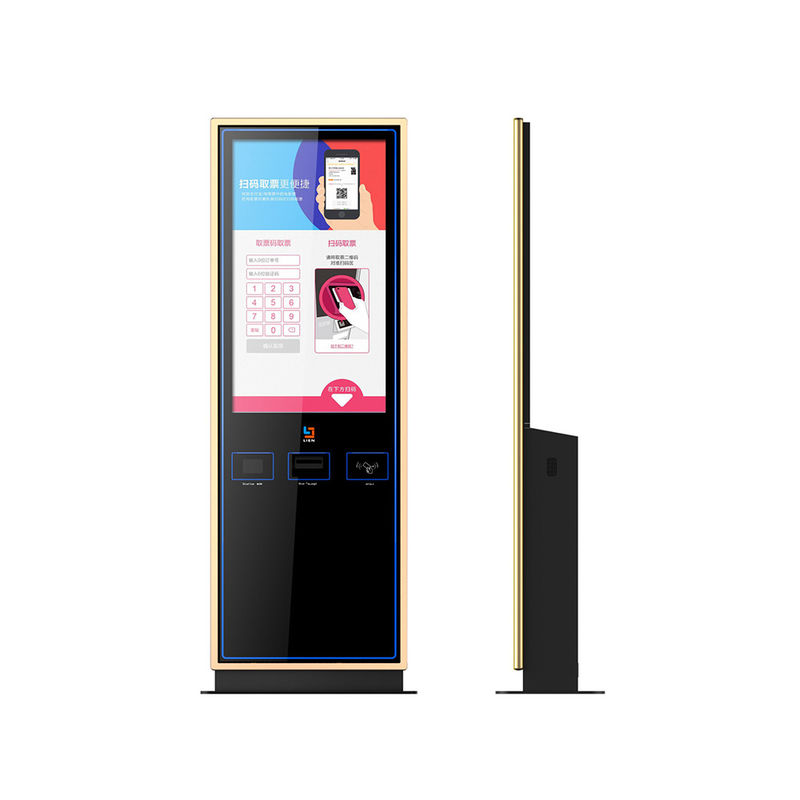

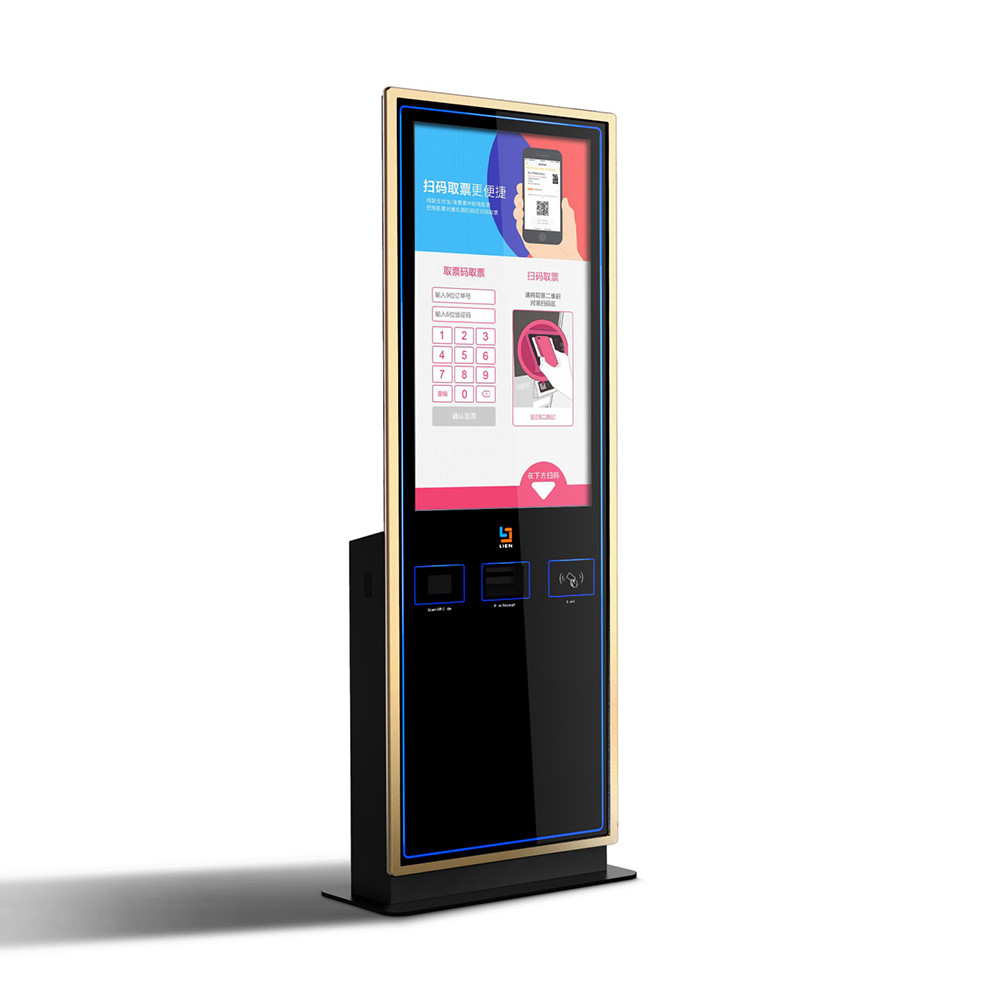

Ticket Vending Kiosk

Product Details:
Place of Origin: China
Brand Name: LKS / OEM / ODM
Certification: CE, FCC
Model Number: LKS8259
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Payment: Cash And Bill Currency,bank Card Coin Acceptor: Anti-jam
Cash Currency: International Currency Acceptable Receipt: 58mm Width
Touch Technology: 17 Inch IT Other: Multifunction
High Light:

interactive touch screen kiosk

,

lobby kiosk

Product Description


Wall Mounted Payment Kiosk With Cash / Coin Deposits , Money Transfer Functionality


Main components​​:

  1. 17 inch IR Touch screen
  2. 17 inch TFT LED Monitor
  3. Speaker
  4. Motorized EMV card reader
  5. Receipt printer
  6. Cash acceptor
  7. Coin acceptor
  8. Barcode scanner
  9. Industrious PC
  10. Camera
  11. Wall mounted cabinet


Standard hardware components List is as following:


ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size17 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card ReaderInterfaceRS232
Card TypeSupport Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power VoltageDC 24V±5%
Card Entry methodMagnetic signal, Optoelectronic signal and rear card signal
Cashcode Bill acceptorValidation Rate96% or higher
Banknote InsertionFour-way
EscrowOne banknote
Capacity1000 notes Max
Coin AcceptorCoin AcceptanceMax 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coinswith high detection ability of counterfeit coins
Accepting Speed2 Coins/Sec
Supply Voltage10V-16V DC
Epson receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
CameraHD Webcam500 million pixels
SpeakerAmplifier5w 8Ω
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case





Other Optional hardware components List is as following:


  1. ID scanner
  2. QR code reader
  3. Fingerprint printer
  4. Manual magnetic stripe swipe card reader
  5. Contactless IC / RF / NFC card reader
  6. UPS
  7. Air conditioning



Multi-function:


  • Bank
  • Government department
  • School
  • Convenience store
  • Hypermarket
  • Hospital
  • Retail store
  • Air port
  • Hotel
  • VTM / ATM / ITM Booth
  • Super market
  • Gas station
  • Shopping Mall
  • Cinema
  • Railway Station
  • Metro Station
  • Parking Lot
  • Fast food restaurant
  • Bus station
  • Other Public areas



Advantages:


  • Enhance overall reputation and lead to repeat visits,Increase ROI of self-service

  • The use of a retail kiosk can be the key to generating increased revenue, improving brand loyalty, enhancing the customer buying experience, and improving employee loyalty

  • Designed to eventually allow customers online shopping and fulfillment options

  • Build brands and generate sales,hold users for longer periods of time



 Appearance


  • Customizable design in color and LOGO painting
  • Hardware agnostic and we can retrofit




The reason you choose LKS:


  1. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  2. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  3. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  6. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
