Shenzhen Lean Kiosk Systems Co., Ltd.

Ticket Prepaid Cards Vending Self Service Ticket Machine Custom

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8590
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Price: USD 800~20000 Units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Kiosk Type:: Kiosk Design Ideas Application:: Banking, Retail,Post, Transport, Library,
Thickness Of Enclosure: 1.5mm Or 3.0mm Or Upon Clients Brightness: 250 Cd/㎡
Supported OS: Windows 7 Or Windows Xp /2003 Or Linux Or Unix Material Feature: Anti-dust, Anti-vandal
High Light:

ticket dispensing machine


card vending machine

Product Description

company introdution


Shenzhen Lean Kiosk Systems Co.,LTD ( LKS for short as following ) is a professional kiosk manufacturer engaged in all kinds payment kiosk, information kiosk, touch screen kiosk, ticket dispenser kiosk, banking kiosk, simple ATM kiosk, advertising kiosk, outdoor kiosk, self-service vending machine etc.

LKS kiosk products have been widely applied to bank, hospital, cinema, super market, convenient store, shopping mall, restaurant, metro station, bus station, gas station, exhibition hall, museum, airport, real estate property and other public areas. LKS is with his own professional design team, R& D team, purchase team, production team, sales team, inspection team and after-sale services team. LKS pay more attention to the best quality products, quick response and warmest services to customers all over the world. We offers standard kiosk products as well as customization services to meet customer's specific requirements. With our experienced teams, we have the capability to design and develop the best quality products that will make you stand out against competitors. We are dedicated to working with you to provide solutions to suit your needs and applications.

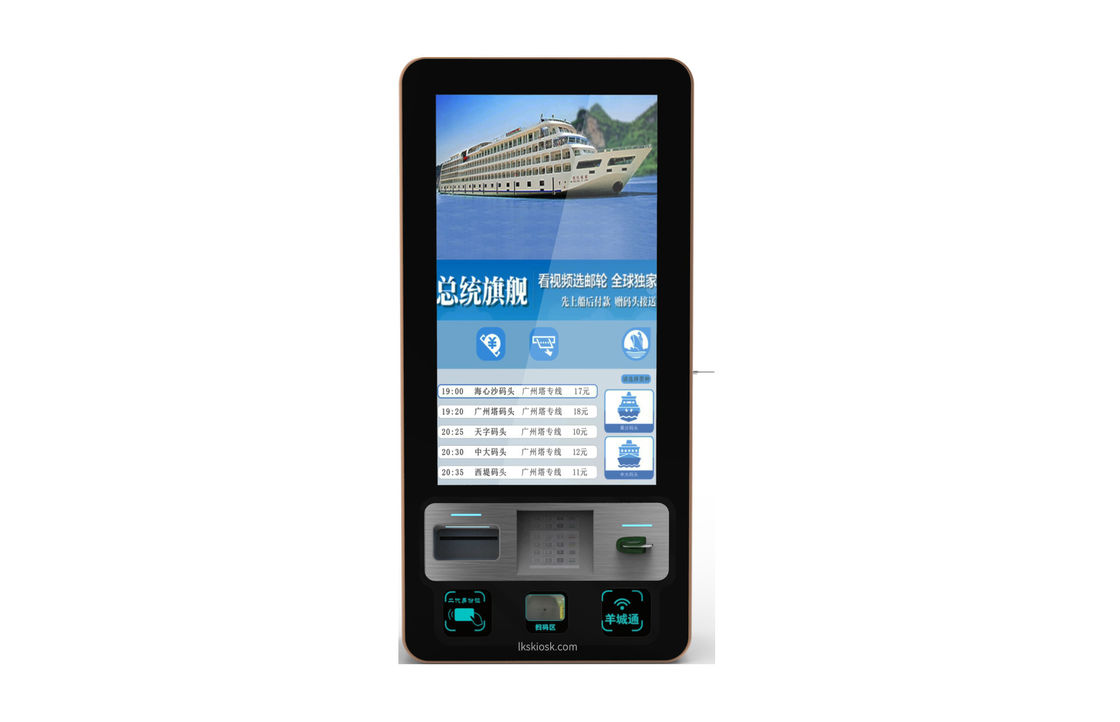

Pictuer of the LKS Ticket Prepaid Cards Vending Self Service Ticket Machine Custom​ :



Standard hardware components List of LKS Ticket Prepaid Cards Vending Self Service Ticket Machine Custom is as following:


Main Components Main specifications
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2030, 3.0GHZ; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6* RS-232 Ports;1* LTP;6 * USB Ports,8*GPIO;1*PCI
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Brightness 250cd/m2
Angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight Tube Life more than 40,000hours
Response Time <5ms
Max. Resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Touch Accuracy center: <1.5mm
edge: <3.2mm
Response Time <16ms
Voltage DC5V+/-5%
Interface RS232,USB
Glass Thickness 3mm
Resolution 4096x4096
Card Reader Reading Distance >4cm
Operating System windows98,Me ,XP,2003 ,Unix and Linux
Card Contact Number 200000 Secondary
Operating Temperature -20℃ to 60℃
Whether Contact Non-contact
Interface Serial ports,USB
Encrypted Pinpad Key Lifespan >2,000,000 times
Key Activation Force 2~3N
Key Trip >=0.45mm
Pin Input 10 numerical keys and 6 function keys
Power Voltage DC5V+/-10%,Max 200mA
Protection Level Ip65 static and ip54 dynamic
Cash dispenser Denomination 2 denomination
Cassette Capacity 214mm
Dispensing Speed 4 note/sec
Reject Capacity about 50 notes
Usable Note Size width:100~162mm
Cash acceptor Validation Rate 96% or higher on first insertion
Bill Path Width 62-77mm
Bill Path Length 120-160mm
Barcoded Coupons lengthwise two-way
Banknote Insertion lengthwise Four-way
Escrow One bill
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Coin Accepted Size Coin diameter: 15-31.5mm ( optionally up to 32.5mm)
Coin thickness: 1.5-2.5mm ( optionally bis 3.3mm)
Receiving Rate >99.6%
Accepting Speed 2 Coins /Sec
Supply Voltage 12V-24V DC
Coin Dispenser Dispensing Speed 12 note/sec
Storage Capacity 1500 coin
Coin Diameter 18~28.5mm
Coin Thickness 1.65~3.2mm
Power Voltage DC24V
Receipt printer Autocutter included
Technology Thermal printing
Paper Width 80mm
Printing Speed 150mm/s
Paper Thickness 0.06-0.15mm
Supply Voltage DC24V
UPS Input Voltage 145-290va
Output Voltage 200-255va
Transient Time ≦10ms
Max Time For Supplying a Single PC 3~20minutes (for single PC)
Digital Power Supply AC Input Voltage Range 100‐240VAC
Frequency 50Hz to 60Hz
Output Over Current Protection 110~130%
Frequency 50Hz to 60Hz
Accessories Wire-Lan Port, USB Ports, Speakers, Fans, Cables, Screws, Etc.
Operation System Windows 7 or Windows XP Operation System For Test
KIOSK Cabinet Durable Steel Frame, Slim And Smart Design; Easy to Install And Operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, Have Color And LOGO Upon Request.
Packing Security Packing Method With Bubble Foam+Wooden Case


Other Optional hardware components List of LKS self service pay exchange currency for ticket dispenser kiosk is as following:

  1. Advertising screen
  2. Barcode scanner
  3. Pinhole Camera
  4. Web camera
  5. NFC card reader

Ticket Prepaid Cards Vending Self Service Ticket Machine Custom 0Ticket Prepaid Cards Vending Self Service Ticket Machine Custom 1Ticket Prepaid Cards Vending Self Service Ticket Machine Custom 2
