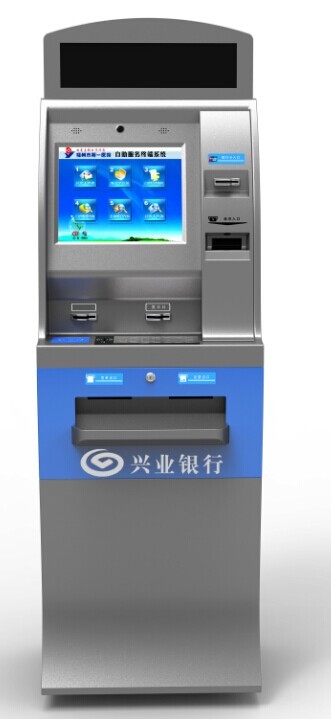

Self Service Change Pay Touch Kisok , outdoor retail kiosk For Banking

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8348

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: USD+5000+units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

healthcare kiosk

,

medical kiosk

Kiosk Cabinet Material:
Cold Rolled Steel
Application::
Banking, Retail,Post, Transport, Library,
Touch Screen Type:
IR
Warranty:
1 Years
Working Voltage:
AC 110V-240V
Material Feature:
Anti-dust, Anti-vandal
Kiosk Cabinet Material:
Cold Rolled Steel
Application::
Banking, Retail,Post, Transport, Library,
Touch Screen Type:
IR
Warranty:
1 Years
Working Voltage:
AC 110V-240V
Material Feature:
Anti-dust, Anti-vandal
Product Description


Self Service Change Pay Touch Kisok , outdoor retail kiosk For Banking



ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6* RS-232 Ports;1* LTP;6 * USB Ports,8*GPIO;1*PCI
PC Power SupplyHUNTKEY/Great Wall
RFID Card ReaderReading distance>4cm
Operating systemwindows98,Me ,XP,2003 ,Unix and Linux
Card contact number200000 Secondary
Operating temperature-20℃ to 60℃
Whether contactNon-contact
InterfaceSerial ports,USB
Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
Touch accuracycenter: <1.5mm
edge: <3.2mm
Response time<16ms
VoltageDC5V+/-5%
InterfaceRS232,USB
Glass thickness3mm
Resolution4096x4096
A4 printerAutocutterincluded
TechnologyThermal printing
Paper width150mm
Printing speed150mm/s
Paper thickness0.06-0.15mm
Supply voltageDC24V
Passport ScannerProduct TypeFlatbed color image sensor
Host interfaceUSB ( Universal Serial Bus)
Image SensorCMOS CIS ( Contact image sensor)
Resolutionhardware optical 600dpi
Paper thickness>0.1mm
Scanning area5.0"maximum scan width and 3" maximum scan length
wireless moduleTP-Link-GP-WB223MS
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam+wooden case



Water And Electricity Fee Payment And Information Check Self-service Kiosk Optional Hardware​ :
    Main components​​ ​​:

  1. Industrious PC
  2. 32 inch monitor
  3. 19inch IR touch screen
  4. Speaker
  5. Free standing single screen cabinet
  6. Wireless Module
  7. Movie Ticket Printer
  8. Receipt Printer
  9. Full-contactless IC Card Reader
  10. ID Card Reader
  11. Barcode Scanner
  12. Encrypted Pin Pad

The picture of Self Service Change Pay Touch Kisok For Dedicated Charity Donation​:
