Shenzhen Lean Kiosk Systems Co., Ltd.

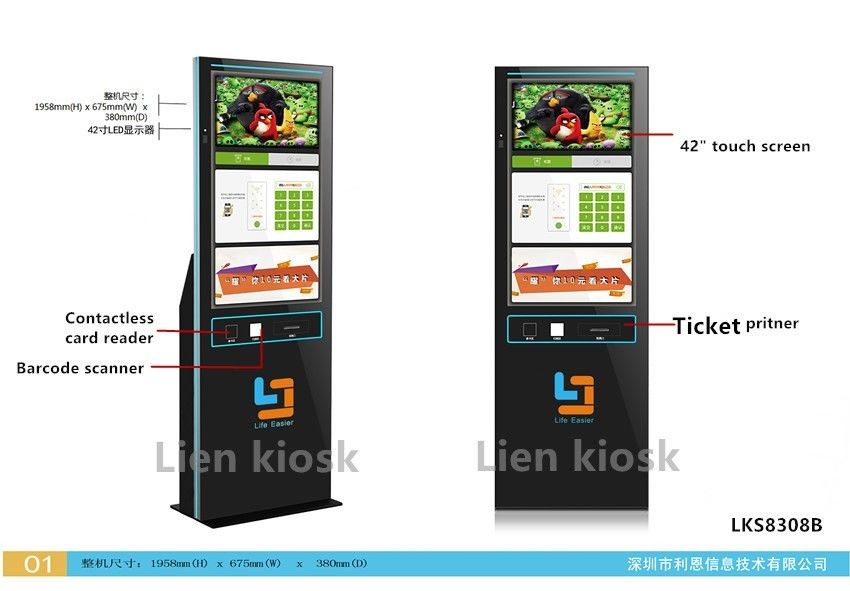

Cinema ticket/ Concert ticket / Movie ticket/ Theater ticket vending kiosk

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8308B
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Color: Custom Color Material: Cold-roll Steel
Certificate: CE/ FCC/UL/ 3C Solution Optional Application: Concert/ Cinema/ Theater
Size: 1958*670*385mm(L*W*T)
High Light:

ticket dispenser machine


ticket dispensing machine

Product Description

    Lean cinema self-help receive tickets sale terminal has been serving the domestic more than 40% of the cinema, is the pioneer domestic cinema self-service solutions.Based on the understanding of the industry and precipitation, lean cinema self-help receive tickets sale terminal can realize online and offline interaction, support to collect the tickets, tickets, account inquiry, registration, prepaid phone, film preview, accurate delivery, advertising gift sales or distribution, and other functions, through the powerful background management system of cloud, operators can be timely monitoring for all terminal equipment, lower operating costs.


   LKS8308B is a self-service ticket kiosk for concert/ movie/ theater etc. It allow customer to collet the ticekt by scanning barcode, or buy a ticket via using NFC card/ iphone pay/ Samsung pay etc....


Main functions:

1 ticket function: tickets, tickets, and collect the tickets

2 membership function: register, prepaid phone, account inquiry

3 movie preview, gift sales or distribution

4 their advertising

5 the background management software: equipment management, ticket sales



Optional Components List


* 17"/ 19" /21.5"/ 32"/ 37"/ 42"/ 47"/ 50" etc LCD screen
* Capacitance/ Infrared touch screen, single touch, two points, six poinits, ten points touch screen
* Bill acceptor support more than 100 country currency
* Bill dispenser for give change
* Coin acceptor
* Coin dispenser
* Debit card, credit card reader
* Encrypted Pin Pad
* Ticket printer
* wifi/ 3G/4G


 Our Advantages:
Cost-saving solution


  • Dual screens work independently,controlled by only one PC
  • Ticket printer prints lottery ticket,like 1/2D barcode,graphiscs,ads ect.
  • Design and production on our own
  • Independent modular hardward devices
  • Complete supply chain management
  • Art-of-state design,no design or sample fee needed

Design for  24 / 7 Operation
Two ticket printers,reducing frequency of maintenance

  • Fixed on floor by screws and doors are lockable
  • No staff needed during night
  • Less power consuming and more stable Industrious modules
  • Inner air recycling design for heat and humidity control
  • Rigorous quality control for every compenent and complete machine
  • Maintenance free,user friendly


  • Eyesight attractive,Coloful design
  • Robust and secured cabinet
  • Big screen for loop continous advertising playing
  • Brand promotion with LOGO displaying and advertise video displaying

A faster way to collect/ buy your concert ticket

Two way to collect your ticket, by order code or validation code

Cinema ticket/ Concert ticket / Movie ticket/ Theater ticket  vending  kiosk 0Cinema ticket/ Concert ticket / Movie ticket/ Theater ticket  vending  kiosk 1



Receiption Desk  and  office of  Cinema ticket/ Concert ticket / Movie ticket/ Theater ticket kiosk

Cinema ticket/ Concert ticket / Movie ticket/ Theater ticket  vending  kiosk 2

Specification is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Intel Dual Core G2020
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 22 / 17 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt / Ticket Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
NFC card reader Status Display LED indicator to show the power or communication status
Card Type ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Type Support ISO14443
2D scanner Readable Code CMOS
Resolution 752*480
Readable Code 2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc
Approval FCC Part15 Class B, CE EMC Class B
Work Voltage DC 5V (4.5-5.5V)
Interface RS232, USB
Wireless module WLAN module With industrious antenna exposure
Motorized card reader Card type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
IC Card Touch Port 300,000/min
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case
