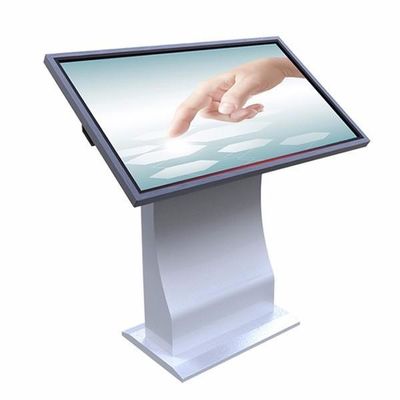

Horizontal 320cd/m2 Free Stand Information Checking Kiosk
Horizontal 320cd/m2 Free Stand Information Checking Kiosk Horizontal 320cd/m2 Free Stand Information Checking Kiosk

Horizontal 320cd/m2 Free Stand Information Checking Kiosk

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8305
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Application:: Banking, Retail, Post, Transport, Mall, School Brightness: 320cd/m2
Supported OS: Windows 7 Or Windows Xp Win-8 Win-10 Screen Size: 55inch
High Light:

Free Stand Information Checking Kiosk

,

320cd/m2 Information Checking Kiosk

,

Horizontal Self Service Interactive Kiosk

Product Description

Free standing Information Checking multi Touch Screen Kiosk With Camera horizontal self Service Interactive Kiosk



LCD Digital Signage is widely used in:Large shopping malls, hospitals, schools, apartments, chain stores, supermarkets, hotels, restaurants,office buildings, cinemas, gyms, clubs, subway, airport, exhibition hall, etc.



Touch Screen Information Kiosk​​ ​​​:

  • Industrious PC
  • High speed video shooting
  • IR/capacitive touch screen
  • Speaker
  • Free standing single screen cabinet
  • Wireless Module

Standard hardware components List  is as following :

Screen parameter
Product dimension
32/43/49/55/65 inch
Resolution
1920*1080
Brightness
450-500 cd/m²
Color
16.7 m
View angle
Horizontal 178°, vertical 178°
Contrast
1000:1
Screen ratio
16:9
Touch screen parameter
Touch screen
Ten point infrared tough screen(capacitance need to be customized)
Minimum touch body
≥1.5 mm
Surface hardness
Mohs class 7
Positioning accuracy
Test pen attachment 3 mm
Touch screen powder supply system
USB direct powder supply (+4.75 to +5.25)
Computer responce
Automatic recognition
Cursor speed
≥120 min/sec
Light transmittance
More than 98% and up to 100%
Other parameter
Audio
5 W.8 Ω.
Response speed
<6 ms
Service life
≥60000 hours
Working temperature
0℃-50℃
Working humidity
0% - 90%
Storage temperature
-20℃-60℃
Storage humidity
10% - 95%
Accessories
Remote control, Wifi antenna, Key, Power cord and manual
Support format
Multimedia format
MPEG1/2,MPEG4 SP/ ASP GMC,H.263,H.264,VP6/8,AVS jizun,JPEG / MJPEG, etc.
USB
Video, audio, picture
Video
H.264 MKV WMV9 MPEG 1/2/4 HD Divx Xvid RM/RMVB
Audio
MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis(Ogg), AC3, FLAC, APE, BSAC, etc.
Mainboard parameter
Options
Android(AN0X) System
X86(PC02) System
X86 (PC03) System
X86 (PC05/7) System
No system
Chip
Dual core/Quad core/Eight core
Intel Celeron dual core 1037U(J1900 is optional)
Intel I3
Intel I5(Intel I7 is optional)
No system
RAM
1G/2G
DDR3 2G/4G
DDR3 2G/4G/8G
DDR3 2G/4G/8G
HDD
Flash memory 8G/16G
Optional
Optional
Optional
Graphics card
Android HD
Integrated graphics
Core graphics
Core graphics
Definition
1080P
Operation system
Android
XP/Windows 7/ Windows 8/Windows10/CE/Mac/Android/Linux
Network interface card
Integrated 10/100/1000M Adaptive network interface card,network interface card 802.11a/b/g/n
Input power
AC100~240V 50 /60 HZ
Output power
12V5A 24V
Standby consumption
<3 W

Horizontal 320cd/m2 Free Stand Information Checking Kiosk 0Horizontal 320cd/m2 Free Stand Information Checking Kiosk 1Horizontal 320cd/m2 Free Stand Information Checking Kiosk 2Horizontal 320cd/m2 Free Stand Information Checking Kiosk 3Horizontal 320cd/m2 Free Stand Information Checking Kiosk 4Horizontal 320cd/m2 Free Stand Information Checking Kiosk 5

company introdution

Shenzhen Lean Kiosk Systems Co.,LTD ( LKS for short as following ) is a professional kiosk manufacturer engaged in all kinds payment kiosk, information kiosk, touch screen kiosk, ticket dispenser kiosk, banking kiosk, simple ATM kiosk, advertising kiosk, outdoor kiosk, self-service vending machine etc.

LKS kiosk products have been widely applied to bank, hospital, cinema, super market, convenient store, shopping mall, restaurant, metro station, bus station, gas station, exhibition hall, museum, airport, real estate property and other public areas.
LKS is with his own professional design team, R& D team, purchase team, production team, sales team, inspection team and after-sale services team. LKS pay more attention to the best quality products



FAQ

Q1: Are you a manufacturer or trading company?
A. We are an OEM/ODM manufacture.



Q2: What kind of payment terms for new customer?
A: 30% deposit, 70% balance before shipment, We accept T/T, L/C, Western Union, Paypal



Q3: Can I get some samples?
A: Yes, we accept sample order.



Q4: Can I have my logo on the product?
A: Yes, we offer customized logo service.



Q5: What is your standard lead time for sample and bulk order?
A: Sample within 3-5days,bulk order is 10-20days depends on quantity.
