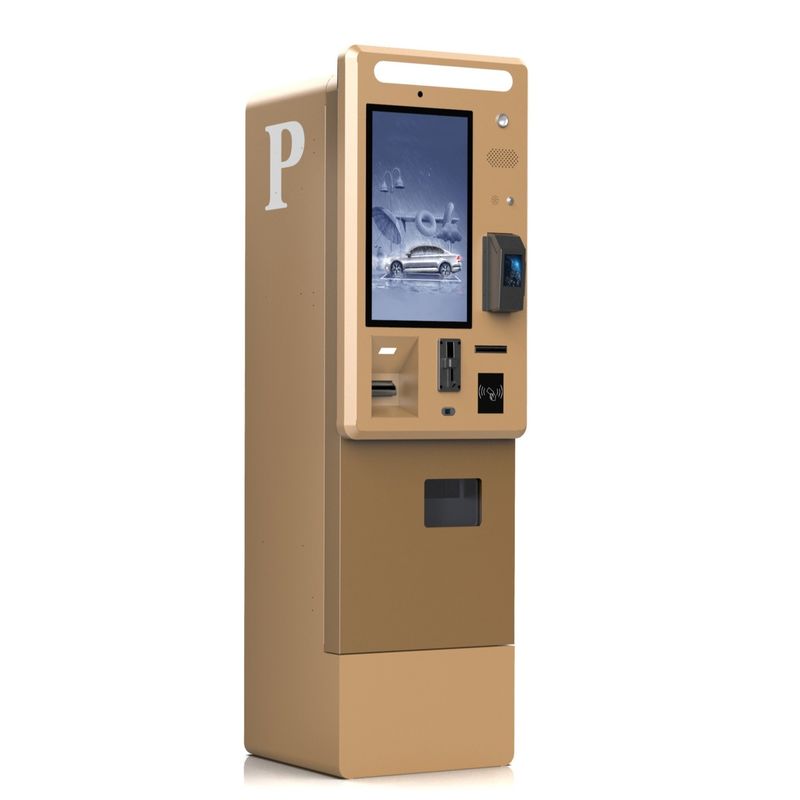

21.5 Inch Outdoor Car Parking Payment With Cash Payment QR Scanner POS Reader

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8501A

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

Car Parking Payment Self Service Kiosk

,

21.5 Inch Car Parking Kiosk

,

21.5 Inch Car Parking Payment Machine

19 Inch Screen:
Capacitive Touchable
Function:
ID/ Passport Scanner
Type:
Free Standing Dual Screen Kiosk
Function 2:
Card Dispenser
Usage:
Hotel Check In
Receipt Printer:
80 Mm Width
Camera:
With MIC
OS:
Android/windows
Support:
Barcode Scanner
19 Inch Screen:
Capacitive Touchable
Function:
ID/ Passport Scanner
Type:
Free Standing Dual Screen Kiosk
Function 2:
Card Dispenser
Usage:
Hotel Check In
Receipt Printer:
80 Mm Width
Camera:
With MIC
OS:
Android/windows
Support:
Barcode Scanner
Product Description



21.5 inch outdoor car parking payment with cash payment QR scanner pos reader





▋ Parking payment machine function ▋

PRODUCT DESCRIPTION

Automated pay stations, or can also be called auto pay stations, pay-on-foot pay station or parking pay and display machine, is set up on the way to parking lot or other proper location. It's used to automatically manage the parking calculation, collection, change and receipt printing.

Operation Process of Parking Auto Pay Machine
1. Scan the barcode ticket or read parking card which is dispensed at the entrance machine. If it is ANPR car parking system,just input your license plate number for payment.
2. The touch screen will show how much you need to pay.
3. Pay as the machine 's payment methods. You can combine several payment methods to pay parking fee.
4. After payment, a receipt is printed. The parking system allows 5-15 minutes for leaving the parking lot after payment. The time can be set by yourself.
5. Scan the bar code ticket or reading parking card at the exit machine, then the barrier will open automatically. If it is ANPR parking system, you can leave the parking lot without stop.

21.5 Inch Outdoor Car Parking Payment With Cash Payment QR Scanner POS Reader 0

Features

24 hour operation without cashier

Coin/bill acceptor & recycling of coins for change

Remote programming parking rate system

Ticket tracking for invalid ticket control

Fully operational in either stand-alone or on-line mode.

On-line communication gives real-time monitoring & control

4way ticket and prepaid card reading

Large LCD featuring user-friendly instructions

Built-in thermal printer for clear printing



NO. Category Module Specification
1



Touch Display



LED Display

19" Full HD LED LCD screen

Display Ratio: 4:3; Maximum Contrast: 3000: 1

Resolution: 1280 * 1024; Viewing angle: 170 °

Response Time: 5MS; Brightness: 300cd / m²

Signal Input: VGA or HDMI

The average life time is 100,000 hours.



Capacitive Touch Screen

19" capacitive touch screen, matching the size of the main display screen, no need for touch force.

Response Speed: 2-5ms; Light Transmittance: 95%;

Response Time: 5ms; Surface Hardness: > Mo type 7;

Resolution: 4096 * 4096; Position Accuracy: ≤2mm;

The service life is more than 10 years.

No coating on the surface, anti-violence, anti-scratch, water-proof, dust-proof. Only one calibration is needed.

2 Host Industrial Host

I3 industrial control motherboard; Kingston 4G memory; Kingston 64G solid hard drive

(Integrated audio, network card, channel 2.0, support lvds / vga, 6 serial ports, 8 USB2.0, one network port)

3 Face Recognition HD Camera Industrial HD camera with face recognition and live detection.
4 Printing Receipt Printer

Epson Thermal Receipt Printer T532

Printable width: 50mm-80mm, with automatic cutter; Can place lengthened 80mm thermal paper, support paper-lacking alarm interface.

5 Identification OCR Passport Scanner

Wintone passport scanner

Support passport scanning, identity authentication.

6 Card Dispense and Return Automatic dispense and receive room cards.

Model: ACT (with recycling carton)

Support automatic card dispensing. Read magnetic stripe information during card dispensing; Card size 55x86mm, card thickness 0.36 ~ 1.0mm, card case capacity 120pcs / 0.76mm standard card (maximum card capacity is 500PCS; Card dispensing speed is more than 1 / s , Double-wheel card-rubbing design effectively prevents dual-card output, recessed design, easy adjustment of card thickness, movable card box with lock, more effective improvement of security, high-strength plastic card issuing channel structure, RFID anti-interference, and flexible card reading and writing function expansion, dustproof and anti-foreign body bayonet design.

7 Finance


POS



Should be provided by customers and also customers should get the interface documents.
8 Bill Acceptor NV Bill Acceptor Accept all denominations but can only dispense one.
8 Sound/Lights Control SRX712 Audio amplifier,2x5W speaker
Lights Indicator light control board (communicating with computer and providing interface), there are indicator lights at room card dispensing, bank card, receipt slots, etc.
21.5 Inch Outdoor Car Parking Payment With Cash Payment QR Scanner POS Reader 1
21.5 Inch Outdoor Car Parking Payment With Cash Payment QR Scanner POS Reader 2
21.5 Inch Outdoor Car Parking Payment With Cash Payment QR Scanner POS Reader 3
