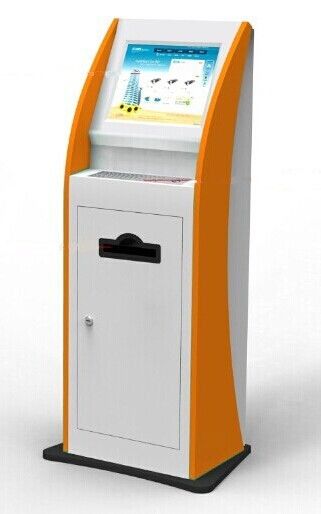

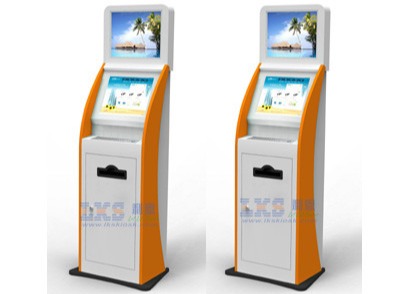

Windows XP Or Linux Computer Self Service Kiosk Terminal With Keyboard

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8514

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
Highlight:

customer service kiosk

,

touch screen kiosks

,

Self Service Kiosk Terminal With Keyboard

Product Description

Windows XP Or Linux Computer Slef Service Kiosk Terminal With Keyboard


Main functions:


  1. Supported OS: windows 7 or windows xp or Linux
  2. Display:LCD, TFT, AUO or others
  3. Touch Screen: IR/SAW/Capacitive
  4. optional size of screen: 17inch, 19inch or upon customers’ request
  5. Material of Cabinet: 1.5mm to 2.5mm Cold-roll sheet or others
  6. Logo: By customer’s needs
  7. Application: Indoor
  8. Warranty: 1 year
  9. Material Feature:Anti-dust, Anti-vandal
  10. Type: Self Service Kiosk, stand kiosk, Information Kiosk
  11. Kiosk Color: upon the customer’s request
  12. Power supply: 110-120V, 220V-240V or optional


Standard hardware components List ofComputer Slef Service Kiosk With Keyboard / Touchscreen Kiosk Terminal​​ as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List of Computer Slef Service Kiosk With Keyboard / Touchscreen Kiosk Terminal​ is as following:


  1. Barcode scanner
  2. Passport reader
  3. Coin dispenser
  4. Cash acceptor
  5. RFID card reader
  6. Thermal printer
  7. Web camera

Description:

  1.  LKS is a professional self service kiosk manufacture and self service kiosk vendor in China. It provides the self service kiosk with passport scanner and brings a unique look to the different self service kiosks applications and kiosk industry.
  2. LKS main self service kiosks are including self service payment kiosk, self service information kiosk, self service internet kiosk, self service online kiosk, kiosk self service, service kiosk, self service kiosk terminal, self service financial kiosk, self service touch screen kiosk, kiosk self service,self service banking kiosk,self service ticketing kiosk,self service check-in kiosk,self service card dispenser kiosk,mcdonalds self service kiosk,mva self service kiosk,etc.
  3. LKS kiosk self service is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS self service kiosk is developed specifically for payment use or inquiry use in airport, hotel, bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.


Applications:


  • Hospital
  • Railway Station
  • Parking Lot
  • Banks
  • Hotel
  • Theatre
  • Metro Station
  • Shopping Mall


Our Advantages:



Elegant Appearance


  • Human engineering verification
  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface


Low Cost Solution


  • Easy of Operation
  • Complete supply chain management
  • Complete supply chain management
  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Built on widely used stable provden technology


Designed for 24 / 7 operation


  • Highly responsive user interaction
  • Tightly integrated hardwre and software
  • vandal resistant components
