Media Player Information Thin Free Standing Kiosk With 32 Inch LCD TFT Monitor

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8308

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

stand alone kiosk

,

large screen kiosk

,

32 Inch LCD Free Standing Kiosk

Product Description

 Media Player Information Thin Free Standing Kiosk with 32 Inch lCD TFT Monitor :



  1. Type: Payment kiosk, self-service kiosk, touchscreen kiosk
  2. Application: Indoor
  3. Supported OS: windows 7 or Linux
  4. optional size of screen: 17inch, 19inch , 32 Inch or upon customers’ request
  5. Touch Screen: IR/SAW/Capacitive
  6. Display: LCD, TFT, AUO or others
  7. Kiosk Color: upon the customer’s request
  8. Material Feature:Anti-dust, Anti-vandal
  9. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  10. Logo: By customer’s needs
  11. Parts: Cash acceptor/Coin acceptor/Card reader/receipt printer….
  12. Warranty: 1 year
  13. Power supply: 110-120V, 220V-240V or optional


Standard hardware components List of 32 Inch lcd TFT Monitor Free Standing Display sd Player Media Player Kiosk is as following:


ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card ReaderInterfaceRS232
Card TypeSupport Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power VoltageDC 24V±5%
Card Entry methodMagnetic signal, Optoelectronic signal and rear card signal
Encrypted PinpadKeylift~span2,000,000 cycles
Key force2~3N
Key trip>2.5mm
Protection levelip65
Cashcode Bill acceptorValidation Rate96% or higher
Banknote InsertionFour-way
EscrowOne banknote
Capacity1000 notes Max
Coin AcceptorCoin AcceptanceMax 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coinswith high detection ability of counterfeit coins
Accepting Speed2 Coins/Sec
Supply Voltage10V-16V DC
Epson receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
UPSInput voltage145-290va
Output voltage200-255va
Max time for supplying a single PC3~20minutes (for single PC)
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case


Other Optional hardware components List of LKS 32 Inch lcd TFT Monitor Free Standing Display sd Player Media Player Kiosk is as following:


  1. Coin dispenser
  2. Advertising screen
  3. Barcode scanner
  4. Web camera
  5. RFID Card reader
  6.


Description

  1. LKS is a professional Free Standing Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS Free Standing Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS Free Standing Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS main Free Standing Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.


Multifunction:

  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Metro Station
  • Parking Lot
  • Shopping Mall
  • Other Public Areas


Our Advantages:

Elegant Appearance


  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification


Low Cost Solution


  • Easy of Operation
  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management


Designed for 24 / 7 operation


  • Tightly integrated hardwre and software
  • Highly responsive user interaction
  • vandal resistant components


Main designs of Self Service Kiosk Touch Screen Free Standing Kiosk with Card Reader

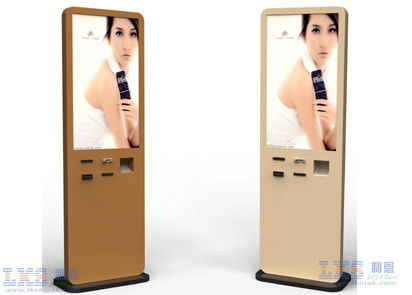

Media Player Information Thin Free Standing Kiosk With 32 Inch LCD TFT Monitor 0
Media Player Information Thin Free Standing Kiosk With 32 Inch LCD TFT Monitor 1Media Player Information Thin Free Standing Kiosk With 32 Inch LCD TFT Monitor 2
