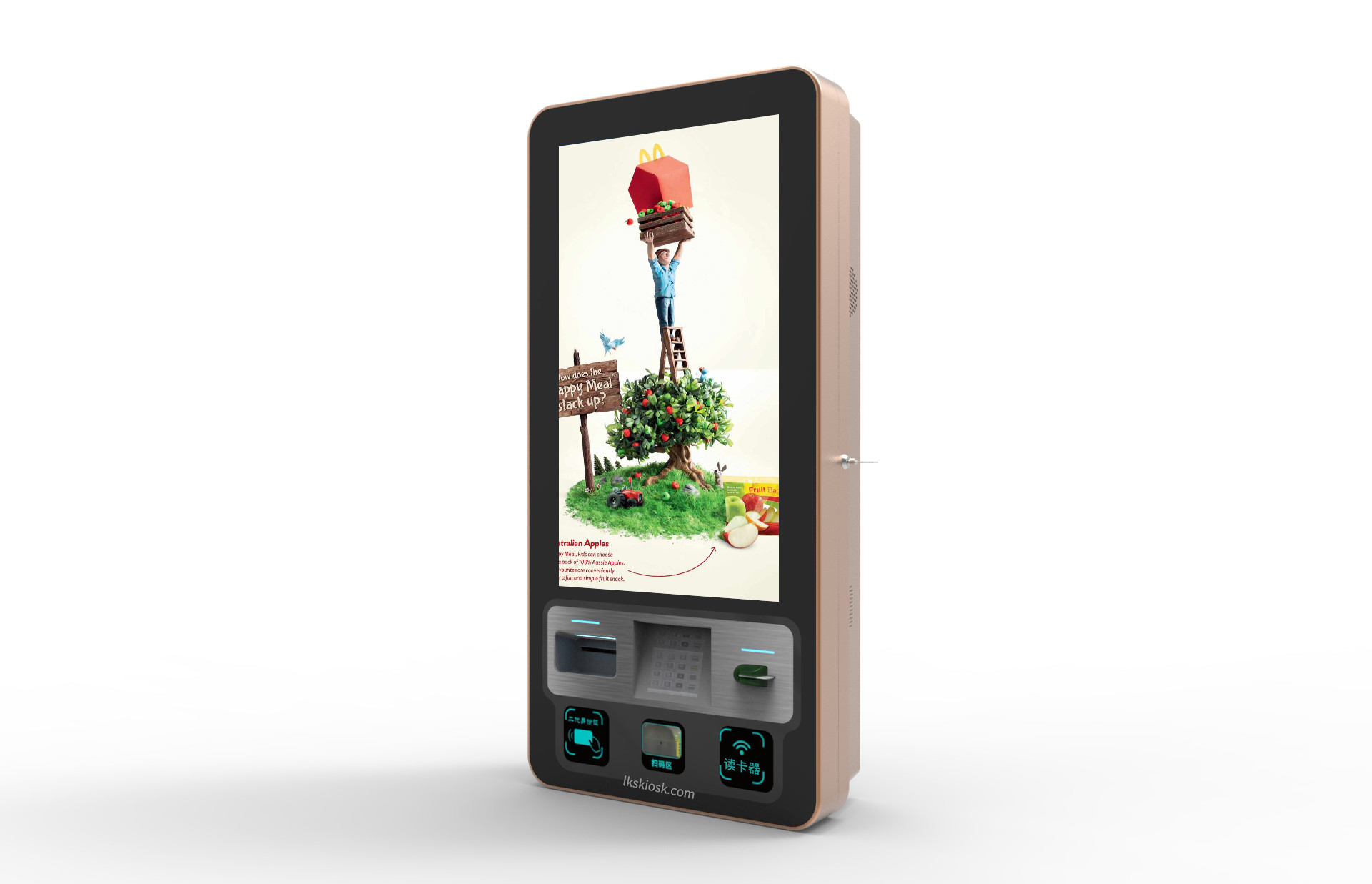

Multifunctional Advertising Wall Mounted Kiosk / Card Dispenser Kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS82181

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
Highlight:

card dispenser kiosk

,

lobby kiosk

,

Multifunctional Advertising Wall Mounted Kiosk

Product Description

Multifunctional Advertising Wall Mounted Kiosk / Card Dispenser Kiosk


  1. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  2. Material Feature:Anti-dust, Anti-vandal
  3. Touch Screen: IR/SAW/Capacitive
  4. Display: LCD, TFT, AUO or others
  5. optional size of screen: 17inch, 19inch 32inch or upon customers’ request
  6. Type: Photo Print kiosk ,Touch Screen Information Kiosk, touchscreen kiosk
  7. Parts: Cash acceptor/Passport Reader/RFID Card reader/receipt printer….
  8. Application: Indoor
  9. Supported OS: windows 7, windows 8 or Linux
  10. Kiosk Color: upon the customer’s request
  11. Logo: By customer’s needs
  12. Warranty: 1 year
  13. Power supply: 110-120V, 220V-240V or optional


Standard hardware components List of LKS Innovative And Smart Multifunctional Wall Mounted Kiosk / Card Dispenser Kiosks  is as following:


ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card ReaderInterfaceRS232
Card TypeSupport Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power VoltageDC 24V±5%
Card Entry methodMagnetic signal, Optoelectronic signal and rear card signal
Encrypted PinpadKeylift~span2,000,000 cycles
Key force2~3N
Key trip>2.5mm
Protection levelip65
Cashcode Bill acceptorValidation Rate96% or higher
Banknote InsertionFour-way
EscrowOne banknote
Capacity1000 notes Max
Coin AcceptorCoin AcceptanceMax 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coinswith high detection ability of counterfeit coins
Accepting Speed2 Coins/Sec
Supply Voltage10V-16V DC
Epson receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
UPSInput voltage145-290va
Output voltage200-255va
Max time for supplying a single PC3~20minutes (for single PC)
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case


Other Optional hardware components List of LKS Innovative And Smart Multifunctional Wall Mounted Kiosk / Card Dispenser Kiosks   is as following:


  1. Advertising screen
  2. RFID Card reader
  3. Barcode scanner
  4. Cash Recycle
  5. Coin dispenser
  6. Web camera
  7. Passport reader
  8. Wireless Module
  9. Full-Contact IC Card Reader


Description


  1. LKS Card Dispenser Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  2. LKS is a Card Dispenser Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  3. LKS Card Dispenser Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS main Card Dispenser Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.


Multifunction:


  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Metro Station
  • Shopping Mall
  • Other public areas


Our Advantages:


Low Cost Solution


  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Easy of Operation
  • Built on widely used stable provden technology
  • Complete supply chain management


Elegant Appearance


  • Human engineering verification
  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface



Designed for 24 / 7 operation


  • Highly responsive user interaction
  • Tightly integrated hardwre and software
  • vandal resistant components



Main designs of   Innovative And Smart Multifunctional Wall Mounted Kiosk / Card Dispenser Kiosks
