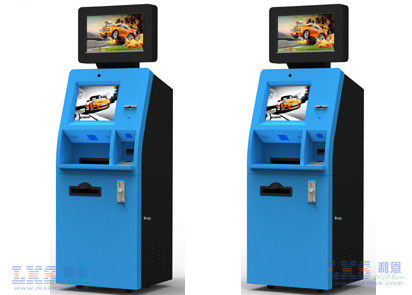

Dual Screen Kiosk With Thermal Printer.Advertising Kiosk,ATM Kiosk,Elegant & Custom Design, Earn More with LKS Kiosk　

Name: Dual Screen Kiosk With Thermal Printer.Advertising Kiosk,ATM Kiosk,Elegant & Custom Design, Earn More with LKS Kiosk
Brand: LKS or customized
SKU: LKS8590A
Rating: 4.6 (191 reviews)

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8590A

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                digital signage kiosk, digital kiosk display, Dual Screen Kiosk With Thermal Printer


OS:	Win7/8/10	Color:	On Demand
Design:	On Demand	Display:	IR Touch Or Capacitive Touch

OS:	Win7/8/10
Color:	On Demand
Design:	On Demand
Display:	IR Touch Or Capacitive Touch

Product Description

Dual Screen Kiosk With Thermal Printer.Advertising Kiosk,ATM Kiosk,Elegant Design, Different Color Available

Type: Photo Print kiosk ,Touch Screen Information Kiosk, touchscreen kiosk
Application: Indoor
Supported OS: windows 7 or Linux
optional size of screen: 17inch, 19inch or upon customers’ request
Touch Screen: IR/SAW/Capacitive
Display: LCD, TFT, AUO or others
Kiosk Color: upon the customer’s request
Material Feature:Anti-dust, Anti-vandal
Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
Logo: By customer’s needs
Parts: Cash acceptor/Coin acceptor/Card reader/receipt printer….
Warranty: 1 year
Power supply: 110-120V, 220V-240V or optional

Standard hardware components List of Dual Screen Kiosk With Thermal Printer.Advertising Kiosk,ATM Kiosk,Elegant Design, Different Color Available is as following:

Components	Details
PC system	Industrial Board	Seavo/ Gigabyte/Advantech AIMB 562
	CPU	Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
	RAM	2GB /4 GB / 8GB
	HDD	500G
	Interface	6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
	PC Power Supply	HUNTKEY/Great Wall
LCD monitor	Screen Size	17 inch/19inch ( optional from 8inch to 65inch)
	Brightness	250cd/m2
	angle	horizontal 100°above;Vertical 80°above
	Contrast	1000:1
	Backlight tube life	more than 40,000hours
	Max. resolution	1280×1024
Touch screen	Screen Size	17/19 inch Diagonal ( optional from 8inch to 65inch)
	Resolution	4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader	Interface	RS232
	Card Type	Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
	Power Voltage	DC 24V±5%
	Card Entry method	Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad	Keylift~span	2,000,000 cycles
	Key force	2~3N
	Key trip	>2.5mm
	Protection level	ip65
Cashcode Bill acceptor	Validation Rate	96% or higher
	Banknote Insertion	Four-way
	Escrow	One banknote
	Capacity	1000 notes Max
Coin Acceptor	Coin Acceptance	Max 32 coin types, in 216 or 132 channels
	Detection ability of counterfeit Coins	with high detection ability of counterfeit coins
	Accepting Speed	2 Coins/Sec
	Supply Voltage	10V-16V DC
Epson receipt thermal printer	Autocutter	included
	Technology	Thermal printing
	Paper width	80mm
	Printing speed	150mm/s
	Data buffer	4KB
	Interface	RS232 ,USB
UPS	Input voltage	145-290va
	Output voltage	200-255va
	Max time for supplying a single PC	3~20minutes (for single PC)
Digital Power Supply	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
Accessories	Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System	Windows 7 or Windows XP operation system without license
KIOSK Cabinet	Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing	Security Packing method with bubble foam and wooden case

Other Optional hardware components List of Dual Screen Kiosk With Thermal Printer.Advertising Kiosk,ATM Kiosk,Elegant Design, Different Color Available is as following:

Cash dispenser
Coin dispenser
Advertising screen
Barcode scanner
Passport reader
Web camera
A4 Laser printer
RFID Card reader

Description

LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.

Multifunction:

Banks
Hotel
Hospital
Theatre
Railway Station
Metro Station
Parking Lot
Shopping Mall
Other Public areas

Our Advantages:

Elegant Appearance

Attractive decoration
High-quality design sketch
Regular elegant design
Attract end customer
Multi-color processed surface
Human engineering verification

Low Cost Solution

Easy of Operation
Modular design for easy maintenance
Stable-quality hardward components
Built on widely used stable provden technology
Complete supply chain management

Designed for 24 / 7 operation

Tightly integrated hardwre and software
Highly responsive user interaction
vandal resistant components

Main designs of ATM Machine / Lastest Design Dual Screen Kiosk With UTP Thermal Printer Cash Dispenser:
Dual Screen Kiosk With Thermal Printer.Advertising Kiosk,ATM Kiosk,Elegant & Custom Design, Earn More with LKS Kiosk　 0

The Reason you choose LKS:

LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.

LKS Factory Tour-Process Of Followsheet
Kiosk Design Ideas
LKS Factory Tour- Kiosk Mass Producing.

LKS Certificates :

LKS Factory tour-Receiption Desk.
reception
LKS Office
office new
LKS Shipping Terms

Welcome to contact us and send inquiry now!
