Home > products > Self Service Kiosk > A4 Laser Printer Self Service Kiosk 1D / 2D Scanner For Public Area Metro Station

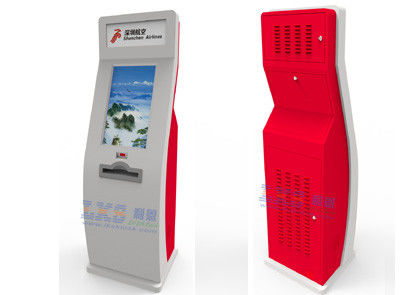

A4 Laser Printer Self Service Kiosk 1D / 2D Scanner For Public Area Metro Station

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8562D

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

self service banking kiosk

,

touch screen kiosks

Product Description

A4 Laser Printer Self Service Kiosk 1D / 2D Scanner For Public Area Metro Station







Main functions:



  1. Parts: A4 Printer, 1 dimension and 2 dimensions reader, thermal printer
  2. Warranty: 1 year
  3. Type: Information Kiosk, self service kiosk, outdoor kiosk
  4. Application: Indoor
  5. Supported OS: win 7 or windows 8 or Linux
  6. optional size of screen: 15" / 17" / 19" / 22" / 23" touch screen….
  7. Touch Screen: SAW / IR / Capacitive
  8. Display:TFT,LCD, AUO or others
  9. Kiosk Color: Any color you like
  10. Material Feature: Anti-vandal, Anti-dust
  11. Cabinet: Steel cabinet sprayed metallic paint or plastic-spray,1.5-2.0MM steel,moisture-proof,anti-rust,anti-acid,anti-dust
  12. Logo:By customer’s needs
  13. Power supply: 110-120V, 220V-240V or optional


Standard hardware components List of A4 Laser Printer Self-Service Stand Kiosk With 1D / 2D Scanner Use in Public Area Metro Station​ as following:





Technical Specification
TFT LCD Display
Resolution 1024x768(15″);1280x1024(17″and 19″)
Brightness 250~300 nits
Contrast ratio 1000:1
Response time 16 ms
Touch Screen
Type Vandal-proof SAW touch screen
Resolution 4096*4096
Deviation of error <2mm
Light Transmittance ≥ 92%
Surface Hardness 7 Mohs scale
Lifetime 50,000,000 times at one single location
Response time less than 16 ms
Touch activation force 10~100g
Enclosure
Durable steel enclosure (different colors for option)
Built-in power control panel, and hi-fi speakers.
Two cooling fans for computer board and main body separately
RJ45/RJ11 interface
Large access doors with tubular locks/keys
Computer
Mother board GIGABYTE H61/ Seavo / Advantech AIMB 562
CPU Intel Pentium dual core G550 2.60GHz (upgradeable as per request)
RAM 2GB (upgradeable as per request)
Hard Disc 500GB (upgradeable on request)
Interface and Port 8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45;LAN port
Others Integrated sound/network/graphics card
Compatible Operation System
Windows2000/XP/Vista/Win7, RedHatLinux/FedoraCore/Win8
Power supply
AC110V-240V,50H-60HZ
Working Environment
Temperature -20°C-+65°C, Relative humidity 10%-90%
Dimension
186x 50x 40CMs (H x W x D)
Packaging
Exportable,transport-worthy plywood crate
Warranty
One year after the date of delivery



Other Optional hardware components List of  A4 Laser Printer Self-Service Stand Kiosk With 1D / 2D Scanner Use in Public Area Metro Station is as following:



  1. Mental Keyboard
  2. Fingerprinter reader
  3. Barcode scanner
  4. Passport reader
  5. Card dispenser
  6. RFID card reader
  7. Web camera
  8. Thermal printer

Description:

1) Shenzhen Lean Kiosk System Co., Ltd is the professional touch screen  self service kiosk manufacturer and also the leader in the kiosk industry in Shenzhen,China.Our product line includes all kinds of self-service touch screen payment kiosk machines and also ATM.



2) If you are looking for a professional kiosk manufacturer of touch screen self service kiosk for your information orinternet kiosk project, payment kiosk project and bill payment kiosk project. Please feel free to contact me,we will assist you with all your touch screen payment kiosk requirements.



3) Self service bill payment kiosk with bill acceptor,card reader bill payment kiosk machine,self-service payment kiosk terminal will suit your particular needs and requirements - ranging from simple public internet access orinteractive payment kiosk to highly sophisticated public information delivery systems.



Applications:





Public places: Bus, Sub Way, Airport, Gas Station, Book store, Exihibition Hall, Park,

Stadium, Museum, Convention Center, Ticket agency

Non-profit Organization: Telecommunications, post office, hospital, school

Entertainments: Movie theaters, fitness halls, country clubs, massage room, bars, cafe,

internet bar, beauty shop, golf course

Business Organization:Supermarket, large-scale shopping mall, chain shops,

star-rated hotels, restaurant, travel agency, Pharmacy

Financial Organization: Banks, negotiable securities, funds, insurance company, Pawnshop







Our Advantages:





Low Cost Solution



  • Easy of Operation
  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management



Elegant Appearance



  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification



Designed for 24 / 7 operation

  • Tightly integrated hardwre and software
  • Highly responsive user interaction
  1. vandal resistant componentsA4 Laser Printer Self Service Kiosk 1D / 2D Scanner For Public Area Metro Station 0
