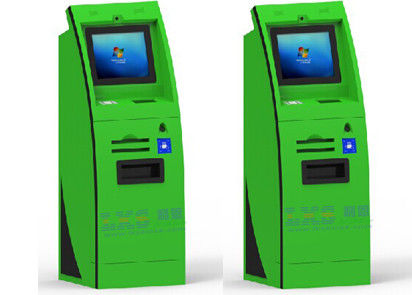

Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner / Webcamera

Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner / Webcamera

    • Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner / Webcamera
    • Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner / Webcamera
  • Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner / Webcamera

    Product Details:

    Place of Origin: China
    Brand Name: LKS or customized
    Certification: CE, FCC
    Model Number: LKS8361A

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 units
    Packaging Details: Film Wrap,Foam and Wooden Box
    Delivery Time: 4-6weeks upon payment
    Payment Terms: T/T in Advance
    Supply Ability: 1000-2000 units per month
    Contact Now
    Detailed Product Description
    High Light:

    self service banking kiosk

    ,

    customer service kiosk

    Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner / Webcamera







    Main functions:



    1. Parts:  17" / 19"  touch screen, A4 laser printer, Auto scanner, 1D reader, Signature Pad...
    2. Warranty: 1 year
    3. Type: self service kiosk, Information Kiosk,  indoor kiosk
    4. Application: Indoor or Outdoor
    5. Supported OS: windows 7 or windows 8 or Linux
    6. optional size of screen: 17inch, 19inch or other size
    7. Touch Screen: SAW / IR / Capacitive
    8. Display:TFT,LCD, AUO or others
    9. Kiosk Color: we can paint your own color, free of charge
    10. Material Feature: Anti-vandal, Anti-dust, Durable steel enclosure (different colors for option)
    11. Cabinet: Steel cabinet sprayed metallic paint or plastic-spray,1.5-2.0MM steel,moisture-proof,anti-rust,anti-acid,anti-dust
    12. Logo:By customer’s needs
    13. Power supply: 110-120V, 220V-240V or optional


    Standard hardware components List of  Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner And Webcamera​ as following:



    Technical Specification
    TFT LCD Display
    Resolution 1024x768(15″);1280x1024(17″and 19″)
    Brightness 250~300 nits
    Contrast ratio 450:1
    Response time 8 ms
    Touch Screen
    Type Vandal-proof SAW touch screen
    Resolution 4096*4096
    Deviation of error <2mm
    Light Transmittance ≥ 92%
    Surface Hardness 7 Mohs scale
    Lifetime 50,000,000 times at one single location
    Response time less than 16 ms
    Touch activation force 10~100g
    Enclosure
    Durable steel enclosure (different colors for option)
    Built-in power control panel, and hi-fi speakers.
    Two cooling fans for computer board and main body separately
    RJ45/RJ11 interface
    Large access doors with tubular locks/keys
    Computer
    Mother board GIGABYTE H61
    CPU Intel Pentium dual core G550 2.60GHz (upgradeable as per request)
    RAM 2GB (upgradeable as per request)
    Hard Disc 500GB (upgradeable on request)
    Interface and Port 8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45;LAN port
    Others Integrated sound/network/graphics card
    Compatible Operation System
    Windows2000/XP/Vista/Win7, RedHatLinux/FedoraCore/Win8
    Power supply
    AC110V-240V,50H-60HZ
    Working Environment
    Temperature -20°C-+65°C, Relative humidity 10%-90%
    Packaging
    Exportable,transport-worthy plywood crate
    Warranty
    One year after the date of delivery



    Other Optional hardware components List of Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner And Webcamera​ is as following:



    1. RFID card reader
    2. Auto scanner
    3. Signature Pad
    4. Web camera
    5. Mental Keyboard
    6. Fingerprinter reader
    7. Barcode scanner
    8. Passport reader
    9. Thermal printer
    10. A4 laser printer

    Description:

    1.  LKS is a professional self service kiosk manufacture and self service kiosk vendor in China. It provides the self service kiosk with passport scanner and brings a unique look to the different self service kiosks applications and kiosk industry.
    2. LKS self service kiosk is developed specifically for payment use or inquiry use in airport, hotel, bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
    3. LKS kiosk self service is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
    4. LKS main self service kiosks are including self service payment kiosk, self service information kiosk, self service internet kiosk, self service online kiosk, kiosk self service, service kiosk, self service kiosk terminal, self service financial kiosk, self service touch screen kiosk, kiosk self service,self service banking kiosk,self service ticketing kiosk,self service check-in kiosk,self service card dispenser kiosk,mcdonalds self service kiosk,mva self service kiosk,etc.


    Applications:





    Public places: Bus, Sub Way, Airport, Gas Station, Book store, Exihibition Hall, Park,

    Stadium, Museum, Convention Center, Ticket agency

    Business Organization:Supermarket, large-scale shopping mall, chain shops,

    star-rated hotels, restaurant, travel agency, Pharmacy

    Financial Organization: Banks, negotiable securities, funds, insurance company, Pawnshop

    Non-profit Organization: Telecommunications, post office, hospital, school

    Entertainments: Movie theaters, fitness halls, country clubs, massage room, bars, cafe,

    internet bar, beauty shop, golf course



    Our Advantages:





    Low Cost Solution



    • Easy of Operation
    • Modular design for easy maintenance
    • Stable-quality hardward components
    • Built on widely used stable provden technology
    • Complete supply chain management



    Elegant Appearance



    • Attractive decoration
    • High-quality design sketch
    • Regular elegant design
    • Attract end customer
    • Multi-color processed surface
    • Human engineering verification



    Designed for 24 / 7 operation

    • Tightly integrated hardwre and software
    • Highly responsive user interaction
    • vandal resistant components



    Main components of Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner And Webcamera​ Slim Curve A4 Laser Printer Self Service Kiosk With Passport Scanner / Webcamera 0
