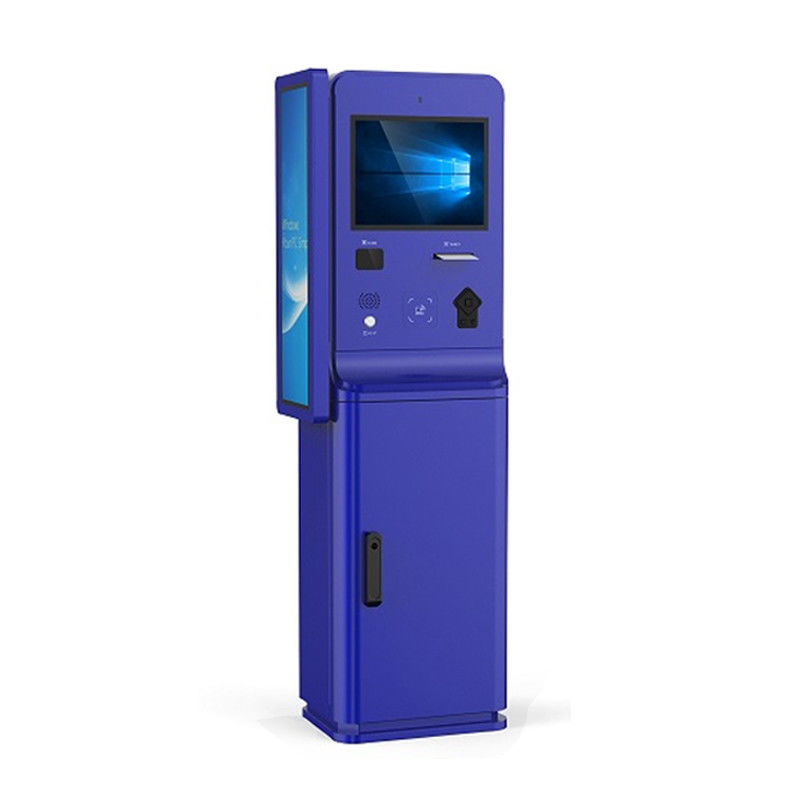

Outdoor payment kiosk with 32 inch touch screen credit card reader kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8222

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

self service banking kiosk

,

touch screen kiosks

,

32 inch credit card payment kiosk

Product Description

Touch Screen Printer Customer Service Kiosk For Prepaid Phone Cards









Main functions:



  1. Parts:  17" / 19"  touch screen, A4 laser printer, Auto scanner, 1D reader, Signature Pad...
  2. Warranty: 1 year
  3. Type: self service kiosk, Information Kiosk,  indoor kiosk
  4. Application: Indoor or Outdoor
  5. Supported OS: windows 7 or windows 8 or Linux
  6. optional size of screen: 17inch, 19inch or other size
  7. Touch Screen: SAW / IR / Capacitive
  8. Display:TFT,LCD, AUO or others
  9. Kiosk Color: we can paint your own color, free of charge
  10. Material Feature: Anti-vandal, Anti-dust, Durable steel enclosure (different colors for option)
  11. Cabinet: Steel cabinet sprayed metallic paint or plastic-spray,1.5-2.0MM steel,moisture-proof,anti-rust,anti-acid,anti-dust
  12. Logo:By customer’s needs
  13. Power supply: 110-120V, 220V-240V or optional


Standard hardware components List of  Self Service Vending Manchine Touch Screen Printer Kiosk Outdoor Kiosk For Prepaid Phone Cards​ as following:



Technical Specification
TFT LCD Display
Resolution 1024x768(15″);1280x1024(17″and 19″)
Brightness 250~300 nits
Contrast ratio 450:1
Response time 8 ms
Touch Screen
Type Vandal-proof SAW touch screen
Resolution 4096*4096
Deviation of error <2mm
Light Transmittance ≥ 92%
Surface Hardness 7 Mohs scale
Lifetime 50,000,000 times at one single location
Response time less than 16 ms
Touch activation force 10~100g
Enclosure
Durable steel enclosure (different colors for option)
Built-in power control panel, and hi-fi speakers.
Two cooling fans for computer board and main body separately
RJ45/RJ11 interface
Large access doors with tubular locks/keys
Computer
Mother board GIGABYTE H61
CPU Intel Pentium dual core G550 2.60GHz (upgradeable as per request)
RAM 2GB (upgradeable as per request)
Hard Disc 500GB (upgradeable on request)
Interface and Port 8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45;LAN port
Others Integrated sound/network/graphics card
Compatible Operation System
Windows2000/XP/Vista/Win7, RedHatLinux/FedoraCore/Win8
Power supply
AC110V-240V,50H-60HZ
Working Environment
Temperature -20°C-+65°C, Relative humidity 10%-90%
Packaging
Exportable,transport-worthy plywood crate
Warranty
One year after the date of delivery



Other Optional hardware components List of Self Service Vending Manchine Touch Screen Printer Kiosk Outdoor Kiosk For Prepaid Phone Cards​ is as following:



  1. RFID card reader
  2. Wifi modul
  3. Signature Pad
  4. Web camera
  5. Mental Keyboard
  6. Fingerprinter reader
  7. Barcode scanner
  8. Passport reader
  9. Thermal printer

Description:

  1.  LKS is a professional self service kiosk manufacture and self service kiosk vendor in China. It provides the self service kiosk with passport scanner and brings a unique look to the different self service kiosks applications and kiosk industry.
  2. LKS self service kiosk is developed specifically for payment use or inquiry use in airport, hotel, bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS kiosk self service is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS main self service kiosks are including self service payment kiosk, self service information kiosk, self service internet kiosk, self service online kiosk, kiosk self service, service kiosk, self service kiosk terminal, self service financial kiosk, self service touch screen kiosk, kiosk self service,self service banking kiosk,self service ticketing kiosk,self service check-in kiosk,self service card dispenser kiosk,mcdonalds self service kiosk,mva self service kiosk,etc.


Applications:





Public places: Bus, Sub Way, Airport, Gas Station, Book store, Exihibition Hall, Park,

Stadium, Museum, Convention Center, Ticket agency

Business Organization:Supermarket, large-scale shopping mall, chain shops,

star-rated hotels, restaurant, travel agency, Pharmacy

Financial Organization: Banks, negotiable securities, funds, insurance company, Pawnshop

Non-profit Organization: Telecommunications, post office, hospital, school

Entertainments: Movie theaters, fitness halls, country clubs, massage room, bars, cafe,

internet bar, beauty shop, golf course



Our Advantages:





Low Cost Solution



  • Easy of Operation
  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management



Elegant Appearance



  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification



Designed for 24 / 7 operation

  • Tightly integrated hardwre and software
  • Highly responsive user interaction
  • vandal resistant components



Main design of Self Service Vending Manchine Touch Screen Printer Kiosk Outdoor Kiosk For Prepaid Phone Cards
