Home > products > Self Service Kiosk > 15'' Outdoor TFT LCD Wall Mounted Kiosk Touch Screen Stainless HD for Shopping Mall

15'' Outdoor TFT LCD Wall Mounted Kiosk Touch Screen Stainless HD for Shopping Mall

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8233E

Payment & Shipping Terms

Minimum Order Quantity: 5Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in advance, Western Union

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

interactive touch screen kiosk

,

lobby kiosk

Material:
1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others
Material Feature:
Anti-vandal, Anti-dust
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
8inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
12 Mounths Since Shipment
Power Supply:
110-120V, 220V-240V Or Optional
Color:
Yellow, Gray, Red, Black (Optional)
Function:
Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Type:
Wall Mounted Kiosk, Payment Kiosk, Touch Screen Kiosk
Material:
1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others
Material Feature:
Anti-vandal, Anti-dust
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
8inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
12 Mounths Since Shipment
Power Supply:
110-120V, 220V-240V Or Optional
Color:
Yellow, Gray, Red, Black (Optional)
Function:
Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Type:
Wall Mounted Kiosk, Payment Kiosk, Touch Screen Kiosk
Product Description

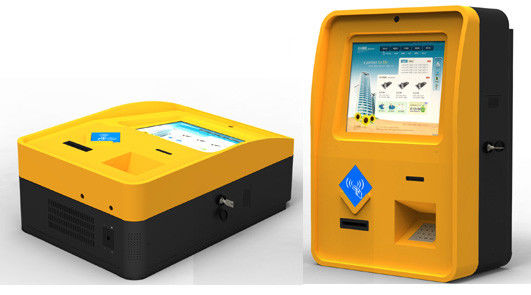

15'' Outdoor TFT LCD Wall Mounted Kiosk Touch Screen Stainless HD for Shopping Mall




Main components​ ​​:


  1.  RFID card reader
  2.  Receipt printer
  3. 17" touch screen
  4. Card reader
  5. EPP


Standard hardware components List is as following:


ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Card DispenserMain FuctionCombination of card issuing IC/RFID card Reading
Communication Interface RS232C / USB (HID)
Card DimmensionsSize: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm
Card Stacking Capability120 pcs in case of 0.76mm standard card ( without extension) ( Available load 500 pcs of card max if there is removable stacker)
 Metal keyboard with touchpadKeylift‐spanKeylift‐span
Key force 2~3N
Key trip >2.5mm
Protection levelip65
Epson receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:


  1. Barcode scanner
  2. Intercom
  3. Speaker
  4. USB port
  5. Finger printer reader
  6. Contactless Card reader
  7. Wireless Moudal
  8. Web camera
  9. Thermal printer


Description


  1. LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  2. LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  3. LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.



Multifunction:


  • Buss station
  • Railway Station
  • Metro Station
  • Parking Lot
  • Fast food stores
  • Banks
  • Hotel
  • Hospital
  • Gas station
  • Shopping Mall
  • Theatre
  • Other Public areas


Our Advantages:

Designed for 24 / 7 operation


  • Tightly integrated hardwre and software
  • vandal resistant components
  • Highly responsive user interaction


Low Cost Solution


  • Complete supply chain management
  • Built on widely used stable provden technology
  • Modular design for easy maintenance
  • Easy of Operation
  • Stable-quality hardward components


Elegant Appearance


  • High-quality design sketch
  • Multi-color processed surface
  • Regular elegant design
  • Attract end customer
  • Human engineering verification
  • Attractive decoration




The Reason you choose LKS:

  1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  2. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  3. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  6. LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.


Welcome to contact us and send inquiry now!
