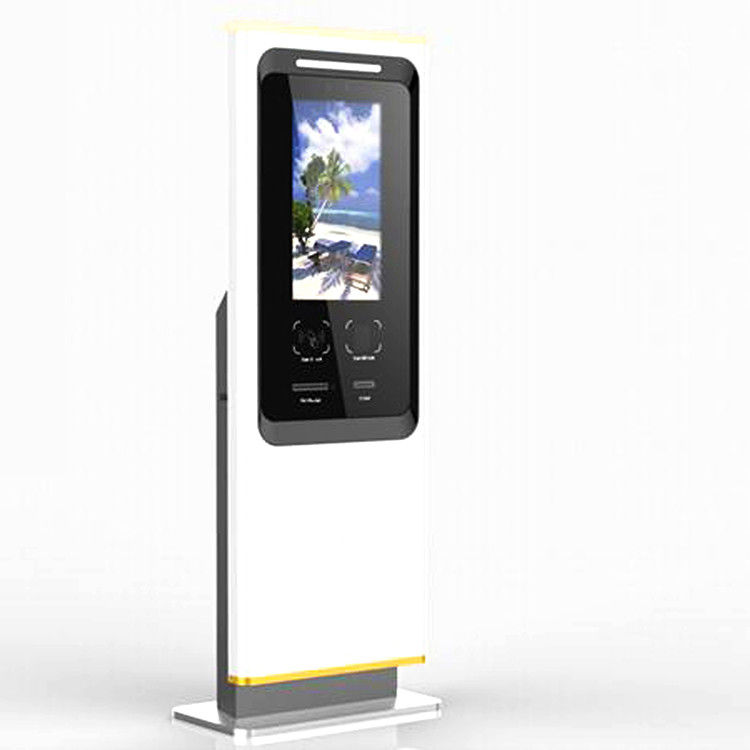

Hotel self-service booking kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8564L

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

digital signage kiosk

,

digital kiosk display

Material:
1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others
Material Feature:
Anti-vandal, Anti-dust
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
17inch, 19inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
12 Mounths Since Shipment
Power Supply:
110-120V, 220V-240V Or Optional
Color:
Yellow, Gray, Red, Black (Optional)
Function:
Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Type:
Dual Screen Kiosk, Payment Kiosk, Touch Screen Kiosk
Material:
1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others
Material Feature:
Anti-vandal, Anti-dust
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
17inch, 19inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
12 Mounths Since Shipment
Power Supply:
110-120V, 220V-240V Or Optional
Color:
Yellow, Gray, Red, Black (Optional)
Function:
Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Type:
Dual Screen Kiosk, Payment Kiosk, Touch Screen Kiosk
Product Description

Overhead LED Display Dual Touch Screen Kiosk With MSR Card Reader and Telephone









Main components​ ​​​:


  1. LED lightbox
  2. Photo printer / A4 laser printer
  3.  Receipt printer
  4. Cash acceptor
  5. Swipe Credit Card Reader
  6. 17" touch screen
  7. Telephone
  8. Web Camera


Standard hardware components List is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case








Other Optional hardware components Listis as following:


  1. Cash acceptor
  2. Coin acceptor
  3. Passport reader
  4. Credit Card reader
  5. Chip and Pin Device
  6. Intercom
  7. Speaker
  8. Barcode Scanner 1D, 2D, PDF, and QR
  9. USB port
  10. Finger printer reader
  11. Contactless Card reader
  12. WiFi or Cellular Connectivity
  13. Web camera
  14. Thermal printer


Description


  1. LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  2. LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  3. LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.



Multifunction:


  • Parking Lot
  • Fast food stores
  • Banks
  • Hotel
  • Buss station
  • Railway Station
  • Metro Station
  • Hospital
  • Gas station
  • Shopping Mall
  • Theatre
  • Other Public areas


Our Advantages:


Elegant Appearance


  • Attract end customer
  • Human engineering verification
  • Attractive decoration
  • High-quality design sketch
  • Multi-color processed surface
  • Regular elegant design


Designed for 24 / 7 operation


  • Highly responsive user interaction
  • Tightly integrated hardwre and software
  • vandal resistant components


Low Cost Solution


  • Easy of Operation
  • Stable-quality hardward components
  • Complete supply chain management
  • Built on widely used stable provden technology
  • Modular design for easy maintenance
