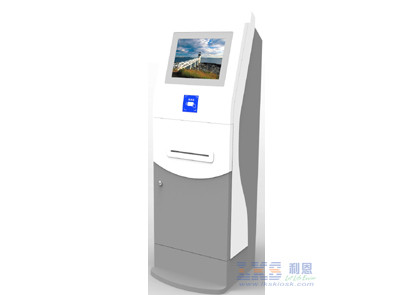

Interactive Touch Screen Information Kiosk A4 Document Digital With High Resolution

Product Details

Place of Origin: China

Brand Name: LKS / ODM / ODM

Certification: CE, FCC

Model Number: LKS8566B

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

card dispenser kiosk

,

photo booth kiosk

Material:
Cold Rolled Steel Or Stainless Steel
Display:
LCD, TFT, LED
Touch Screen:
IR / SAW / Capacitive
Warranty:
12 Months After Delivery
Power Supply:
110-120V, 220V-240V Or Others
Color And Logo:
Customizable
Type:
Touch Screen Information Kiosk
Material:
Cold Rolled Steel Or Stainless Steel
Display:
LCD, TFT, LED
Touch Screen:
IR / SAW / Capacitive
Warranty:
12 Months After Delivery
Power Supply:
110-120V, 220V-240V Or Others
Color And Logo:
Customizable
Type:
Touch Screen Information Kiosk
Product Description



Interactive Touch Screen Information Kiosk A4 Document Digital With High Resolution



Standard configuration:

  1. Touch screen
  2. Monitor
  3. Speaker
  4. Contactless card reader
  5. Photo Printer
  6. A4 document printer(Thermal or laser as optional)





Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Photo Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Size of the photo paper A4 maximum
Contactless card reader Interface Support  ISO14443
Card Type ISO14443 TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Status Display LED indicator to show the power or communication status
Operated Temperature From -20 to +60ºC
A4 document printer Interface USB2.0
Memory Capacity 16Mb
Standard input capacity of paper box 150 or 250 pages
Standard output capacity 50 pages
Size of paper A4 maximum
Printing speed 20 pages / sec
Scanning resolution ( optical) Max 600 x 1200 dpi
Scanning resolution ( interpolation) Max 19200 x 19200 dpi
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case




Other Optional hardware components List is as following:



  1. Barcode scanner
  2. Cash acceptor
  3. WIFI or 3G Wireless module
  4. Web camera
  5. Coin acceptor
  6. Thermal printer
  7. Intercom
  8. Cash dispenser
  9. Coin dispenser
  10. Speaker
  11. Debit ,Credit card reader
  12. Advertising screen


Multi-functional application:


  • Wedding site
  • Department stores

  • Convenience stores

  • self-checkin countertop

  • Hypermarkets

  • Grocery stores

  • Home supply stores

  • Tourism site
  • Retailer store
  • Gas station
  • Shopping Mall
  • Airport board room
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Lobby room
  • Other Public area




Our Advantages:





Suitable for 24 / 7 operation

  • Desigh for higher standard and have a much longer life-cycle,Commecial-grade electronics
  • Less power consuming
  • Stable integrated hardwre and software


Cost-effective Solution

  • Build brands and generate sales,hold users for longer periods of time
  • Increase ROI of self-service

  • Lead to repeat visitors
  • Maintenance free,user friendly




 Appearance



  • Eyesight attractive
  • Brand promotion by LOGO displaying
  • Multi-color processed surface
  • Human engineering verification
  • Abundant decoration
  • High-quality design sketch
