Home > products > Self Service Kiosk > Movie Tickets Printing Wall Mounted Kiosk With Pinpad And NFC Card Reader

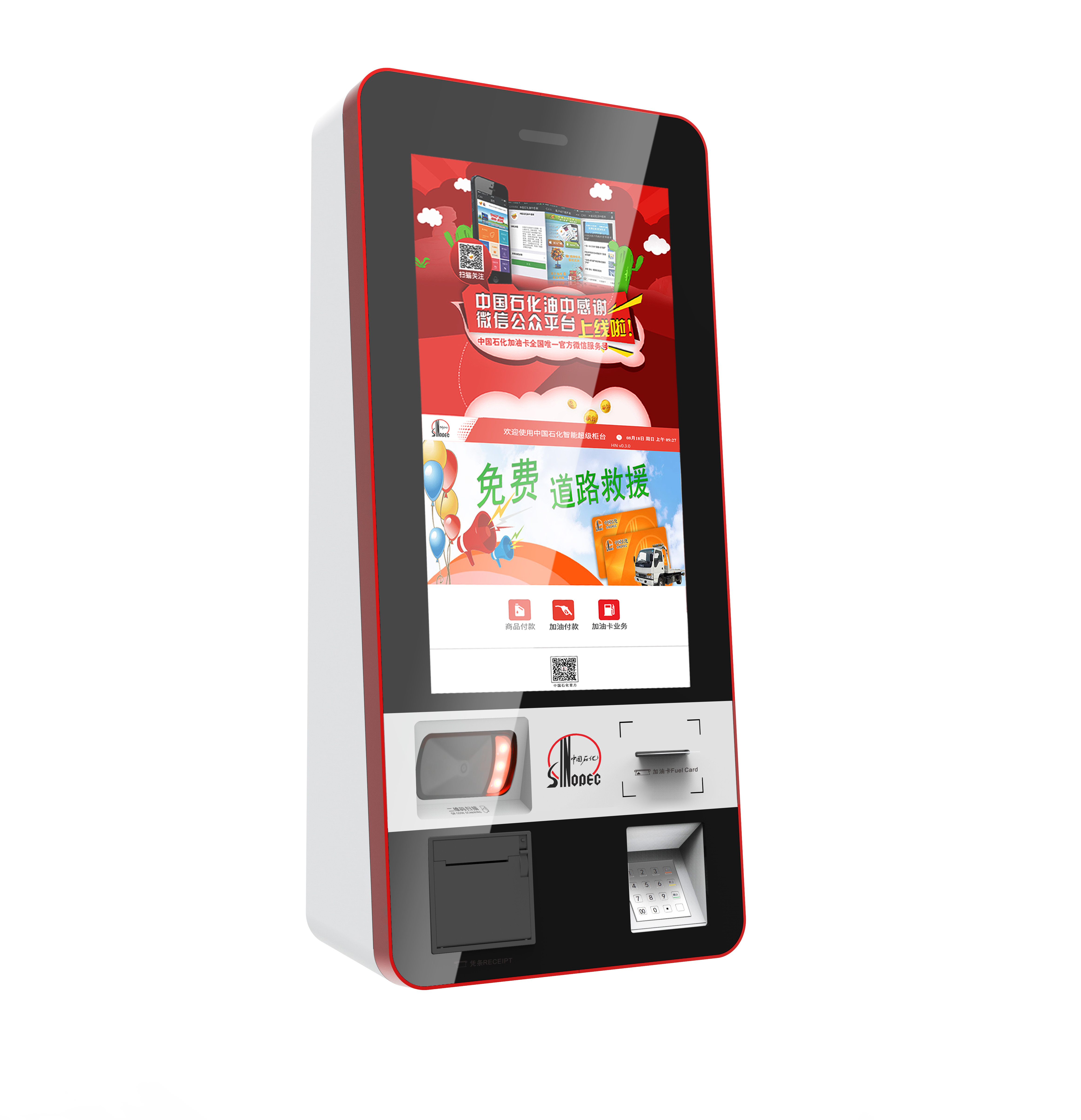

Movie Tickets Printing Wall Mounted Kiosk With Pinpad And NFC Card Reader

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8218C

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

interactive touch screen kiosk

,

lobby kiosk

Material:
Cold Rolled Steel Or Stainless Steel Or Others
Material Feature:
Anti-vandal, Anti-dust,Anti-acid,Waterproof
Application:
Indoor
OS:
Windows 7 / Windows 8 / Linux
Display:
LCD, TFT, LED
Type Of Card:
Contactless Card Like NFC And Mifare
Touch Screen:
IR / SAW / Capacitive / Resistent
Warranty:
12 Months After Delivery
Power Supply:
110-120V, 220V-240V Or Others
Color And Logo:
Customizable
Function:
Self Service For Tickets Like Buying,printing,collecting,validating;advertising Displaying
Type:
Wall Mounted
Size Of The Ticket:
Width:58mm / 80mm / 112mm; Length:customizable
Type Of Card:
Customizable Or Own-issued RFID / NFC Card
Pinpad:
Encrypted Or Unencrypted
Material:
Cold Rolled Steel Or Stainless Steel Or Others
Material Feature:
Anti-vandal, Anti-dust,Anti-acid,Waterproof
Application:
Indoor
OS:
Windows 7 / Windows 8 / Linux
Display:
LCD, TFT, LED
Type Of Card:
Contactless Card Like NFC And Mifare
Touch Screen:
IR / SAW / Capacitive / Resistent
Warranty:
12 Months After Delivery
Power Supply:
110-120V, 220V-240V Or Others
Color And Logo:
Customizable
Function:
Self Service For Tickets Like Buying,printing,collecting,validating;advertising Displaying
Type:
Wall Mounted
Size Of The Ticket:
Width:58mm / 80mm / 112mm; Length:customizable
Type Of Card:
Customizable Or Own-issued RFID / NFC Card
Pinpad:
Encrypted Or Unencrypted
Product Description

Movie Tickets Printing Wall Mounted Kiosk With Pinpad And NFC Card Reader







Standard configuration:

  1. 10 inch monitor
  2. 10 inch touch screen
  3. Industrious PC with intel dual-core chip
  4. High definition Webcam
  5. Speaker
  6. Ticket printer
  7.  Pinpad
  8. Contactless card reader
  9. Wall mounted cabinet



Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core Atom D525
RAM 2GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 10 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 10 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Ticket Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip  >2.5mm
Protection level IP65
Operating Temperature  0° C to 40° C
Contactless card reader Interface RS232
Card Type Support  RF Card,  Mifare S50,S70,UL Card
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Wall mounted Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:



  1. Barcode scanner for QCR from smart cell phones or cards
  2. WIFI or 3G Wireless module
  3. ID / Driver licence / Social insurance card double-side scanner
  4. Intercom


Description


  1. LKS is a Wall Mounted Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS Wall Mounted Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS  Wall Mounted Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS main Wall Mounted Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.





Multi-function:


  • Theater
  • Hospital
  • Gymnasium
  • Retailer store
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Supermarket
  • Tourism destination
  • Coffe shop
  • Bus station
  • School
  • Other Public area


Our Advantages:




Design for  24 / 7 operation:


  • Industrious PC with good stability and less power-consuming
  • Fixed on wall and lockable
  • A compact design


Cost-effective Solution



  • Small size with full functionality
  • Complete and competitive supply chain management
  • Easy maintenance
  • Print tickets directly from your smart cell phone
  • Accept your own-issued cards like NFC,Mifare
  • Less labor force involved


 Appearance



  • Anti-vandal
  • Anti-theft
  • Compact and elegant design
  • Attractive decoration and color
