Airport VOIP Self Service Kiosk WLAN / GPRS / 3G / 4G Internet Telecom Connection

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8213A

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
Highlight:

self service banking kiosk

,

touch screen kiosks

Type Of Card:
ISO Standard,86*54mm Bank Card
Function:
Self Card Payment,information Displaying
Size Of The Screen:
19 Inch ,Portrait
Card Reader Feature:
Motorized,Anti-phishing
Calling Ways:
Anti-vandal Metal USB Port Handset With Hook
Other:
VESA Mounted Bracket
Type Of Card:
ISO Standard,86*54mm Bank Card
Function:
Self Card Payment,information Displaying
Size Of The Screen:
19 Inch ,Portrait
Card Reader Feature:
Motorized,Anti-phishing
Calling Ways:
Anti-vandal Metal USB Port Handset With Hook
Other:
VESA Mounted Bracket
Product Description

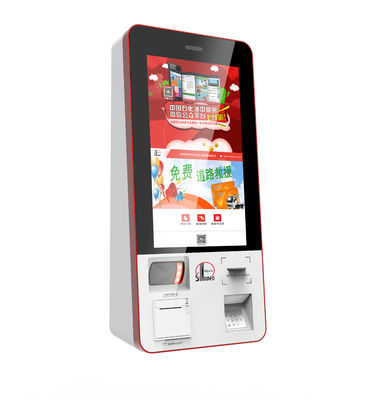

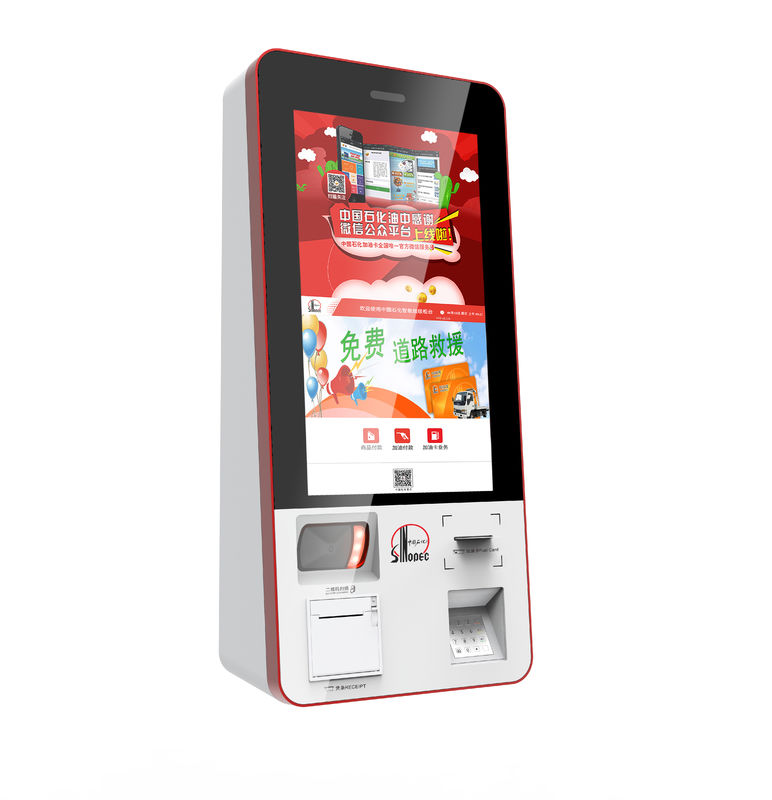

Airport VOIP Self Service Kiosk WLAN / GPRS / 3G / 4G Internet  Telecom Connection





Standard configuration:

  1. 19 inch monitor
  2. 19 inch IR touch screen
  3. Industrious PC,Intel dual-core Atom D525 chip,500GB HDD,2GB RAM
  4. WIFI module:WLAN,GPRS,3G,4G as optional
  5. Motorized card reader
  6. Webcam
  7. Speaker
  8. Wall mounted outdoor cabinet



Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core Intel Atom D525
RAM 2GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD /LED monitor Screen Size 19 inch ( optional from 8inch to 65inch)
Brightness 500cd/m²,1000 cd/m²,2000cd/m² as demand
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

Webcam



Pixel 8,000,000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
3G module Features 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
3, Sending and receiving short messages
4, Managing contacts
Interface: USB2.0, and USB1.1 compatible
Data transmission: Transmission rate will be depended on the live network
Motorized card reader Interface RS232
Card Type Support  IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows 8 operation system without license
Wall mounted Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:



  1. 1D/ 2D Barcode scanner
  2. Fingerprint scanner
  3. Receipt printer
  4. Cash acceptor
  5. Coin acceptor
  6. ID reader / Scanner
  7. Magnetic card swipe reader
  8. Contactless card reader


Description



  1. LKS  Wall Mounted Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  2. LKS is a Wall Mounted Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  3. LKS Wall Mounted Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS main Wall Mounted Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.




Multi-function:


  • Bank
  • ATM / VTM Booth
  • Retailer store
  • Community
  • Shopping Mall
  • Railway Station
  • Metro Station
  • School
  • Airport
  • Seaport
  • Bus station
  • Supermarket
  • Gas station
  • Tourism destination
  • Coffe shop
  • Parking lot
  • Other Public area




The Reasons You Choose LKS:







Cost-effective Hardware Solution Provider:



  • All outer compenents are modular;
  • Next to suppliers and having complete supply chain;
  • With the goals of free maintenance,operation friendly when design and produce;
  • Safety as well as attractive appearance taken into serious consideration.



Service For Software Development :



  • Provide SDK (Development DocumentS,DLL,Drivers)& Specification in English version for every compenents;
  • Professional software team offer pratical suggestions for your integrated software
  • development;



Design for  24 / 7 application:


  • Inner air recycling design for heat and humidity control
  • Bank card withdrawing auotomatically when power cut-off
  • Anti-theft,reporting automatically and immediately when broken in
  • Hang on the wall with safety locks



 Appearance Design As Optional:

  • Anti-vandal and Anti-scratching painting
  • Flexible in customizable design
  • Elegant and noble design
