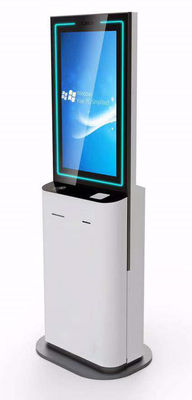

Hotel check-in Kiosk with passport scanner and RFID card reader

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8218G

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

customer service kiosk

,

touch screen kiosks

OS:
Redhad / Ubuntu Linux
Card:
ISO Standard,86*54 Mm,IC / MS / RF Card
Color And Logo:
Customizable
Function:
Self Payment,information Displaying,advertising Playing
Type:
Wall Mounted
Size Of The Screen:
12 Inch ,landscape Resist / Capacitive
Card Reader Type:
By Manual Inserting
Internet:
RJ45 Port,3G Module
Technical Support:
CDMA2000、WCDMA、TD-SCDMA
OS:
Redhad / Ubuntu Linux
Card:
ISO Standard,86*54 Mm,IC / MS / RF Card
Color And Logo:
Customizable
Function:
Self Payment,information Displaying,advertising Playing
Type:
Wall Mounted
Size Of The Screen:
12 Inch ,landscape Resist / Capacitive
Card Reader Type:
By Manual Inserting
Internet:
RJ45 Port,3G Module
Technical Support:
CDMA2000、WCDMA、TD-SCDMA
Product Description

Hotel check-in Kiosk with passport scanner and RFID card reader





Standard configuration:

  1. 12 inch monitor
  2. 12 inch Capacitive touch screen
  3. Industrious PC,Intel dual-core Atom D525 chip,500GB HDD,2GB RAM
  4. RFID / Member card reader
  5. 3G wireless module
  6. Manual / DIP card reader
  7. Speaker
  8. Wall mounted cabinet



Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core Intel Atom D525
RAM 2GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 12 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2,500cd/m²,1000 cd/m²,2000cd/m²
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 12 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

RFID / Member card reader



Card type ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Status Display LED indicator to show the power or communication status
Interface USB 2.0
Receipt Printer Paper width 80mm
Printing speed 150mm/s
Others Auto half or full cutter as optional;
3G wireless module MBD-220HU 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
3, Sending and receiving short messages
4, Managing contacts
Interface: USB2.0, and USB1.1 compatible
Data transmission: Transmission rate will be depended on the live network
DIP card reader Interface RS232
Card Type Support  IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows 8 operation system without license
Wall mounted Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:



  1. 1D/ 2D Barcode scanner
  2. Fingerprint scanner
  3. Cash acceptor
  4. Coin acceptor
  5. ID reader / Scanner


Description



  1. LKS is a Wall Mounted Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS  Wall Mounted Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  3. LKS Wall Mounted Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS main Wall Mounted Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.




Multi-function:


  • Bank
  • ATM / VTM Booth
  • Retailer store
  • School
  • Goverment agent
  • Shopping Mall
  • Community
  • Railway Station
  • Metro Station
  • Supermarket
  • Gas station
  • Tourism spot
  • Coffe shop
  • Bus station
  • Other Public area




Our Advantages:



Cost-effective Solution



  • Independent modular hardward components connect to Linux OS
  • No need watch out except routine maintence
  • Complete and competitive supply chain management
  • Smaller size,compact design
  • Industrious level for all compenents,Less power consuming






Design for  24 / 7 application:




  • Inner air recycling design for heat and humidity control
  • Hang on the wall with safety locks
  • Anti-theft,reporting automatically and immediately when broken in




 Appearance

  • Anti-vandal and Anti-scratching painting
  • Compact and safe design
  • Flexible in customizable design
