Shenzhen Lean Kiosk Systems Co., Ltd.

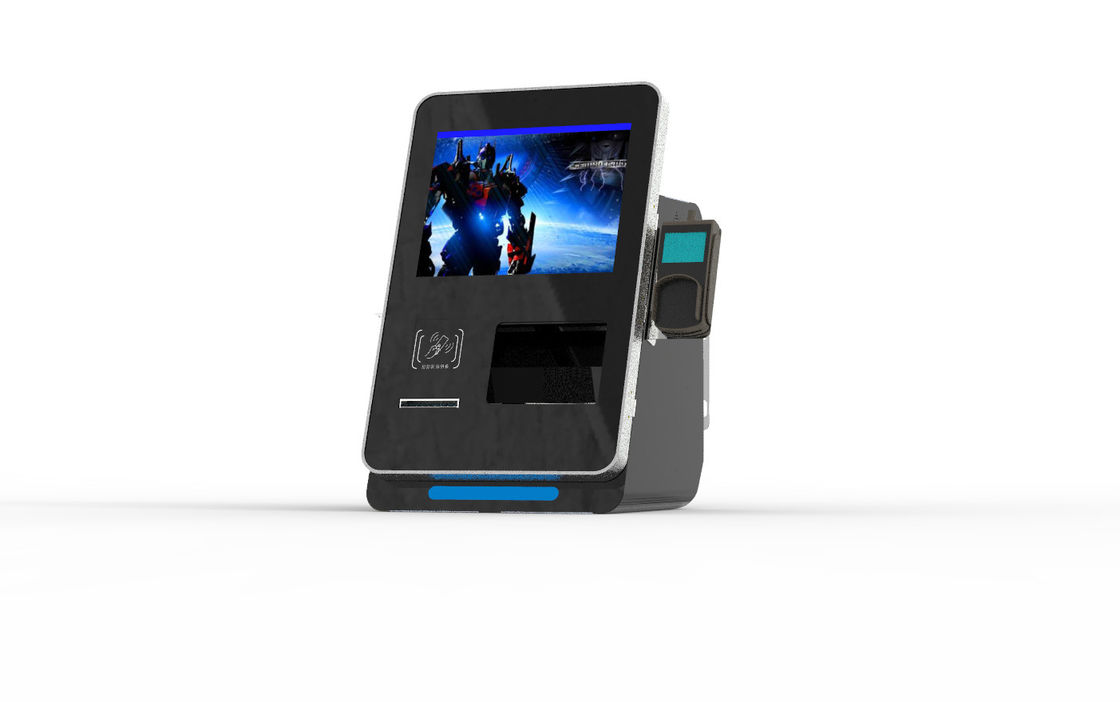

Passport scanner with card reader pos payment kiosk

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8204A
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Application: Indoor Desktop OS: Windows 7 / Windows 8 / Linux / Android
Touch Screen: 10-point Capacitive Function: Self Payment Transactions,advertising Display
Type Of Card To Be Read: Contactless Smart Card Like Mifare,NFC,RFID;Magnetic Stripe Card POS Termimal: Security Certification,built-in Receipt Ptinter
High Light:

picture printing kiosk


photo booth kiosk

Product Description


Retail Outlets Interactive Information Kiosk Multi-functional POS Terminal


Standard configuration:


  1. 8 inch monitor
  2. 8 inch capacitive touch screen
  3. Industrious X86 / ARM board
  4. Wireless module like 3G / GPRS,WIFI,Blurtooth
  5. POS terminal with built-in receipt printer
  6. Digital signature pad and pen
  7. Desktop cabinet


Specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU  Intel Dual Core / A20
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 8 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 8 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Contactless card reader Card Type  ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Type Support  ISO14443
2D scanner Readable Code  CMOS
Resolution   752*480
Readable Code 2D PDF417, QR Code(Model 1/2),  DataMatrix(ECC200, ECC000, 050, 080, 100,140),     Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc
 Approval FCC Part15 Class B, CE EMC Class B
Work Voltage DC 5V (4.5-5.5V)
Interface RS232, USB
POS terminal Certification EMV4.2, PCI3.0,PBOC 2.0 Level 1& Level 2,QPBOC 2.0 Level 1 & Level 2
Key pad 11* alphanumeric keys,8* functional keys,1* power switch
Wireless communication port GRPS,CDMA 1X / CDMA 2000 / WCDMA / TD-SCDMA / WIFI as optional
PSAM,SIM 2*PSAM slot,ISO7816 standard;1*SIM slot
Battery Polymer,1800mAh,7.4V
Interface 1*Mini USB; 1*12PIN; 1* power port
Digital signature pad Size of the induction zone 4*3 inch
Digital pen induction height 15 mm maximum
Reading rate 100 pps (points per second)
Wireless module 3G /WLAN / Bluetooth module As optional
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Desktop Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case

Other Optional hardware components List is as following:


  1. Dot matrix printer
  2. Cash dispenser
  3. Palm vein scanner
  4. Coin dispenser
  5. Fingerprint scanner
  6. Manual magnetic stripe swipe card reader
  7. ID / Driver licence / Social insurance card double-side scanner
  8. Passport scanner
  9. Stainless metal keyboad with track ball
  10. Digital signature pad
  11. Cheque scanner / acceptor with MICR function


  1. LKS main desktop Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  2. LKS desktop kiosk manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  3. LKS is a desktop Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  4. LKS desktop Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.



  • Retailer store
  • Supermarket
  • Bank
  • Fast food chain store
  • Coffe shop
  • Gymnasium
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area


Our Advantages:


Design for  24 / 7 Operation

  • Fixed deskto / countertop lockable and removable
  • No labor force needed except maintenance
  • POS termial with receipt printer built-in
  • Compact design
  • Digital signature pad and pen for credit card swiping


Cost-saving solution


  • Small size
  • Independent modular hardward devices
  • Design and production on our own
  • Complete supply chain management
  • Maintenance free,user friendly
  • Less power consuming and more stable Industrious modules



  • Compact and noble design
  • Robust and secured cabinet
  • Customizable decorations
  • Brand promotion with LOGO displaying and advertise video displaying
