Home > products > Self Service Kiosk > Airport Passport scanner Card reader Kiosk

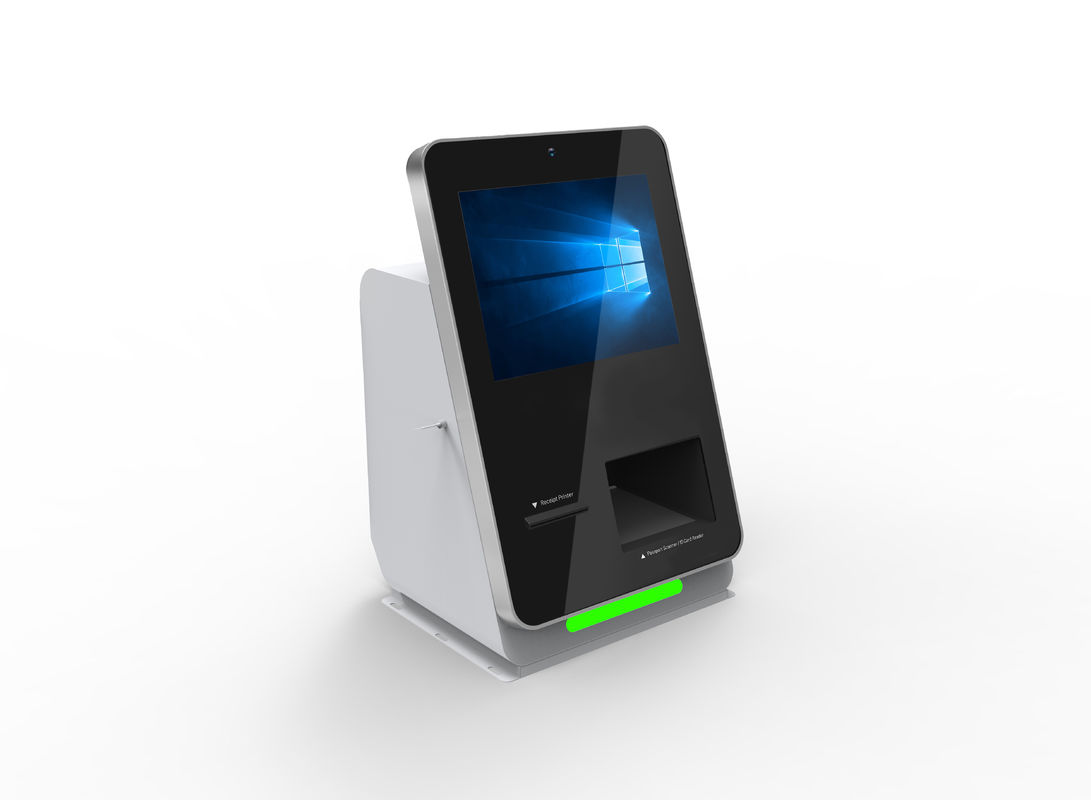

Airport Passport scanner Card reader Kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8207

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

ticket dispenser machine

,

card vending machine

Function:
Advertising Display,ticket Vending And Collection
Printer:
80mm Width Ticket Thermal Printer
Wireless Module:
WLAN
Display:
Dual 10 Inch Screens
Printing Content:
Text Like Seats And Time .Logo,2D Barcode Ect.
Other:
ID Scanner
Function:
Advertising Display,ticket Vending And Collection
Printer:
80mm Width Ticket Thermal Printer
Wireless Module:
WLAN
Display:
Dual 10 Inch Screens
Printing Content:
Text Like Seats And Time .Logo,2D Barcode Ect.
Other:
ID Scanner
Product Description

Airport Passport scanner Card reader Kiosk


Standard configuration:


  1. 2*10 inch HD monitor
  2. 10 inch Capacitive touch screen
  3. HD Webcam
  4. Industrious PC,2G RAM,500G HDD
  5. Speaker
  6. Ticket printer
  7. ID Scanner
  8. Manual magnetic stripe swipe card reader
  9. Wall mounted cabinet



Specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU  Intel Dual Core G2020
RAM 2 GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 10 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 10 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt / Ticket Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
ID reader Readable Code  CMOS
Resolution   752*480
Readable Code Duplex scanning and reading
 Approval FCC Part15 Class B, CE EMC Class B
Work Voltage DC 5V (4.5-5.5V)
Manual Magnetic stripe swiping card reader Card type ISO standard magnetic stripe card
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case







Other Optional hardware components List is as following:


  1. Dot matrix printer
  2. Palm vein scanner
  3. Coin dispenser
  4. ID / Driver licence / Social insurance card double-side scanner
  5. Fingerprint scanner
  6. Passport scanner
  7. Stainless metal keyboad with track ball
  8. Digital signature pad
  9. Cheque scanner / acceptor with MICR function


Description


  1. LKS main Ticket Vending Machine Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  2. LKS Ticket Vending Machine Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS Ticket Vending Machine Kiosk manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS is a Ticket Vending Machine Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.


Application


  • Cinema
  • Theater
  • Hospital
  • Museum
  • Supermarket
  • Bank
  • Retailer store
  • Coffe shop
  • Park
  • Gymnasium
  • Conference lobby
  • Exibition
  • Coffe shop
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area


Our Advantages:


Cost-saving solution


  • Rigorous quality control for every compenent and complete machine
  • Design and production on our own
  • Complete supply chain management
  • Independent modular hardward devices
  • Maintenance free,user friendly
  • Back LED light panel for advertising releasing,and changeble



Design for  24 / 7 Operation


  • Less power consuming and more stable Industrious modules
  • Fixed on floor by screws and doors are lockable
  • No staff needed during night
  • Two ticket printers,reducing frequency of maintenance
  • Inner air recycling design for heat and humidity control




 Appearance


  • Eyesight attractive,Coloful design
  • Big screen for loop continous advertising playing
  • Robust and secured cabinet
  • Brand promotion with LOGO displaying and advertise video displaying
