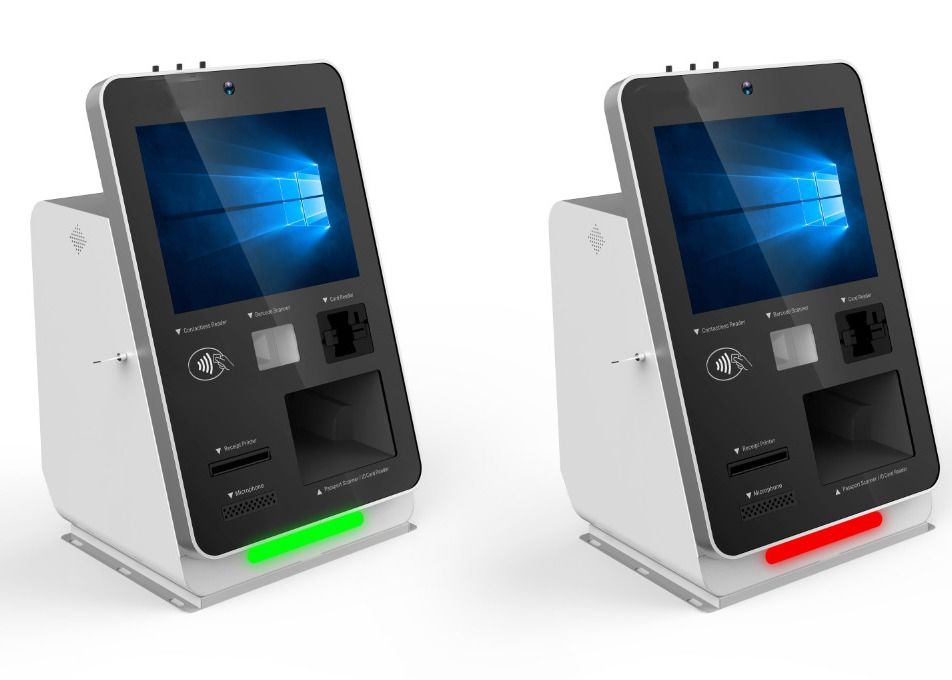

Self Service Kiosk with passport scanner card reader

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8220
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

OS: Window 7 / Linux Handset: Anti-vandal Stainless Cable
Webcam: Taking Photos,biometric Definition Type: Wall Mounted ,indoor
Size Of The Screen: 12 Inch ,landscape Resist / Capacitive Telecom: VOIP Or GSM
High Light:

self service banking kiosk


customer service kiosk

Product Description

Bank RJ45 Wire Internet Self Service Kiosk , 12 Inch Capacitive Touch Screen




Standard configuration:

  1. 12 inch monitor
  2. 12 inch Capacitive touch screen
  3. Industrious PC,Intel dual-core Atom D525 chip,500GB HDD,2GB RAM
  4. RJ45 wire internet connection and 3G module wireless connection
  5. Encrypted Pinpad
  6. Webcam
  7. Receipt thermal printer
  8. Manual  magnetic stripe card swiping reader
  9. Speaker
  10. Wall mounted cabinet


Specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core Intel Atom D525
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 12 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2,500cd/m²,1000 cd/m²,2000cd/m²
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 12 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Encrypted Pinpad Key-lift span 2,000,000 cycles
Certification PCI
 Magnetic stripe card swiping reader


Card type ISO14443 Magnetic Card
Magnetic head life span


Interface USB 2.0
Receipt Printer Paper width 80mm
Printing speed 150mm/s
Others Auto half or full cutter as optional;
3G wireless module MBD-220HU 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
3, Sending and receiving short messages
4, Managing contacts
Interface: USB2.0, and USB1.1 compatible
Data transmission: Transmission rate will be depended on the live network
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Webcam Features 500 / 800 million pixels,usb port
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows 8 operation system without license
Wall mounted Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case

Other Optional hardware components List is as following:


  1. 1D/ 2D Barcode scanner
  2. Fingerprint scanner
  3. Cash acceptor
  4. Coin acceptor
  5. ID reader / Scanner


  1. LKS is a Wall Mounted Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS  Wall Mounted Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  3. LKS Wall Mounted Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS main Wall Mounted Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.



  • Bank
  • ATM / VTM Booth
  • Retailer store
  • School
  • Goverment agent
  • Shopping Mall
  • Community
  • Railway Station
  • Metro Station
  • Supermarket
  • Gas station
  • Tourism spot
  • Coffe shop
  • Bus station
  • Other Public area


Our Advantages:


Self Service Kiosk with passport scanner card reader

  • Independent modular hardward components connect to Windos or Linux OS
  • No need watch out except routine maintence
  • Complete and competitive supply chain management
  • Industrious level for all compenents,Less power consuming


Design for  24 / 7 application:

  • Hang on the wall with safety locks
  • Inner air recycling design for heat and humidity control
  • Anti-theft,reporting automatically and immediately when broken in



  • Anti-vandal and Anti-scratching painting
  • Compact and safe design
  • Flexible in customizable design
