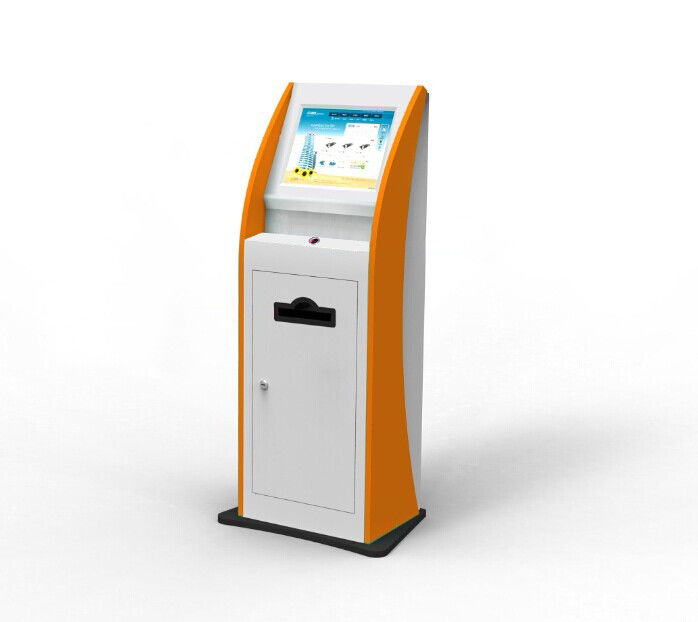

Interactive Queuing Free Standing Kiosk Card Reader Receipt Printer Design

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8311B

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

stand alone kiosk

,

information kiosk system

Application:
Indoor
Type Of Card:
RFID / NFC / Contactless IC Card
Size Of The Card:
ISO Standard,56*84mm
Size Of Banknote:
Width: 62 Or 78mm; Length:160-180mm
Banknote Receiving:
Four Direction Ways
Other:
Counterfeit Cash Auto-rejected
Application:
Indoor
Type Of Card:
RFID / NFC / Contactless IC Card
Size Of The Card:
ISO Standard,56*84mm
Size Of Banknote:
Width: 62 Or 78mm; Length:160-180mm
Banknote Receiving:
Four Direction Ways
Other:
Counterfeit Cash Auto-rejected
Product Description

Interactive Queuing Free Standing Kiosk Card Reader Receipt Printer Design


Standard configuration:


  1. 17 inch HD monitor
  2. 17 inch IR touch screen
  3. HD Webcam
  4. Industrious PC,2G RAM,500G HDD
  5. Wireless module like WLAN
  6. Cash acceptor
  7. Speaker
  8. Receipt printer
  9. RFID / NFC (Contactless IC) card reader
  10. Free standing single screen cabinet



Specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU  Intel Dual Core G2020
RAM 2 GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt / Ticket Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
RFID / NFC card reader Status Display LED indicator to show the power or communication status
Card Type  ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Type Support  ISO14443
Wireless module WLAN module With industrious antenna exposure
Cash acceptor Validation Rate 98% or higher
Escrow One banknote
Banknote size width: 62or 78mm; length:160-180mm
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:


  1. Dot matrix printer
  2. Cash dispenser
  3. Coin acceptor
  4. UPS
  5. Motorized bank card reader
  6. Encypted Pinpad
  7. GSM sensor alarm system
  8.  Coin dispenser
  9. Palm vein scanner
  10. Coin dispenser
  11. ID / Driver licence / Social insurance card double-side scanner
  12. Fingerprint scanner
  13. Passport scanner
  14. Stainless metal keyboad with track ball / touch pad
  15. Digital signature pad
  16. Manual magnetic stripe swipe card reader
  17. Cheque scanner / acceptor with MICR / OCR function


Description


  1. LKS  Kiosks are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  2. LKS is a  Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  3. LKS Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS  Kiosk manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.


Application


  • Park
  • ATM / VTM Booth
  • Shopping mall
  • Gallary
  • Hospital
  • Museum
  • Supermarket
  • Bank
  • Retailer store
  • Coffe shop
  • Hotel gate
  • Gymnasium
  • Conference lobby
  • Exibition
  • Coffe shop
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area




Our Advantages:

Cost-saving solution


  • Benefitial solution design  like self-help payment,advertsing realsing
  • Payment from cell phone by NFC module or RFID / NFC card easily
  • Accept small value billnote and gives receipt


Design for  24 / 7 Operation


  • Fixed on floor by screws and doors are lockable
  • All compenents are Industrious level
  • Inner air recycling design for heat and humidity control
  • Less power consuming and more stable Industrious modules
  • Rigorous quality control for every compenent and complete machine




 Appearance


  • Eyesight attractive,Coloful design
  • Big screen for loop continous advertising playing
  • Robust and secured cabinet
