Coupon Cashing Self Service Kiosk QR Code Scanner Receipt Printing

Name: Coupon Cashing Self Service Kiosk QR Code Scanner Receipt Printing
Brand: LKS or customized
SKU: LKS8314B
Rating: 4.9 (122 reviews)

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8314B

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                                                                                self service banking kiosk, customer service kiosk


Code Type:	2D And 1D	Coupon Type:	Card,paper,digital Version
Cahsing Way:	Sending Directly To Bank Acount	Receipt:	80 Mm Thermal Paper
Displaying:	LED / LCD TFT Screen	Other:	User Friendly

Code Type:	2D And 1D
Coupon Type:	Card,paper,digital Version
Cahsing Way:	Sending Directly To Bank Acount
Receipt:	80 Mm Thermal Paper
Displaying:	LED / LCD TFT Screen
Other:	User Friendly

Product Description

Self Service Coupon Cashing Kiosk QR Code Scanner Receipt Printing

Standard configuration:

42 inch monitor
42 inch IR touch screen
Industrious PC
Barcode scanner
High defination Webcam
Speaker
Receipt printer
Free standing single screen cabinet

Specification is as following:

Components	Details
PC system	Industrial Board	Seavo/ Gigabyte/Advantech AIMB 562
	CPU	Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
	RAM	2GB /4 GB / 8GB
	HDD	500G
	Interface	6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
	PC Power Supply	HUNTKEY/Great Wall
LCD monitor	Screen Size	42 inch/22 inch ( optional from 8inch to 65inch)
	Brightness	250cd/m2
	angle	horizontal 100°above;Vertical 80°above
	Contrast	1000:1
	Backlight tube life	more than 40,000hours
	Max. resolution	1280×1024
Touch screen	Screen Size	42 inch Diagonal ( optional from 8inch to 65inch)
	Resolution	4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Webcam	Resolution	1280*720
	Pixel	8000000
	Adaptive Resolution	1280*720
	Interface	USB 2.0
	Driver	No
Barcode scanner	Pixel Resolution	752*480
	Image grabbing Area	2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc
	Approval	FCC Part15 Class B, CE EMC Class B
Receip printer	Width	80 mm
	Printing speed	150 mm/s
	Technology	Thermal
	Interface	RSR 232.USB,COM
	Others	Auto half or full cut
Speakers	Features	Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
Accessories	Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System	Windows 7 or Windows XP operation system without license
Free standing Cabinet	Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package	Security Packing method with bubble foam and wooden case

Other Optional hardware components List is as following:

Palm vein scanner
Digital signature pad
Contactless IC Card reader
NFC tag reader
ID scannr and reader
Cheque scanner
Bank card reader
Encypted Pinpad
WIFI or 3G Wireless module
Photo printer
A4 document printer

Other Applications

Tourism spots
Bank
Shooping mall
Lobby hall
Museum
Human resources room
Railway Station
Metro Station
Gymnasium
Police station
Prinson
Hospital
Supermarket
Police office
Airplane boarding room
Bank
Highway station
Bus station
Other Public area

Our Advantages:

Cost-saving Strategy

Operation friendly
Independent modular hardward devices
Outstanding supply chain management
Maintenance free

Design for 24 / 7 Operation

Uninterruptable power supply to sustain every check in procedure
Power saving and modular devices
Industrious level for all compenents
Fixed on floor and lockable

Appearance

Art-of-state design
Customizable decorations
High-quality design sketch
Ergonomic design

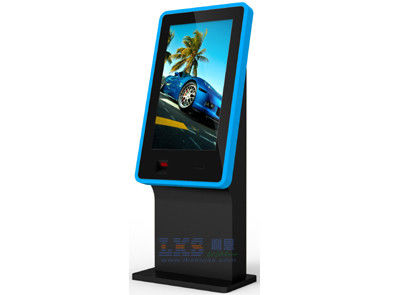

Coupon Cashing Self Service Kiosk QR Code Scanner Receipt Printing 0

Description

LKS Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
LKS is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
LKS Kiosks manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
LKS is a Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.

Coupon Cashing Self Service Kiosk QR Code Scanner Receipt Printing 1
